EFG and ROV-II™

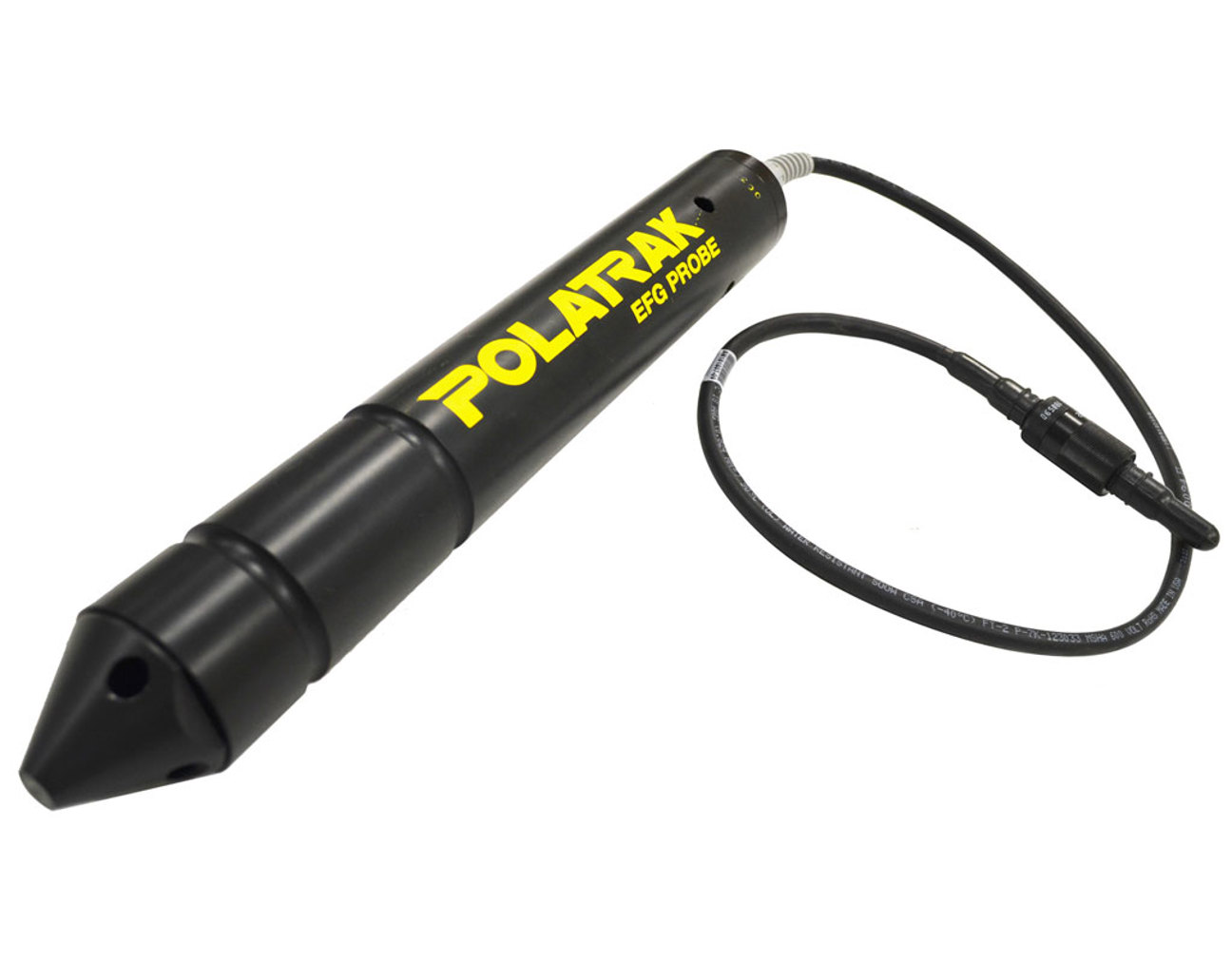

Polatrak® EFG probe

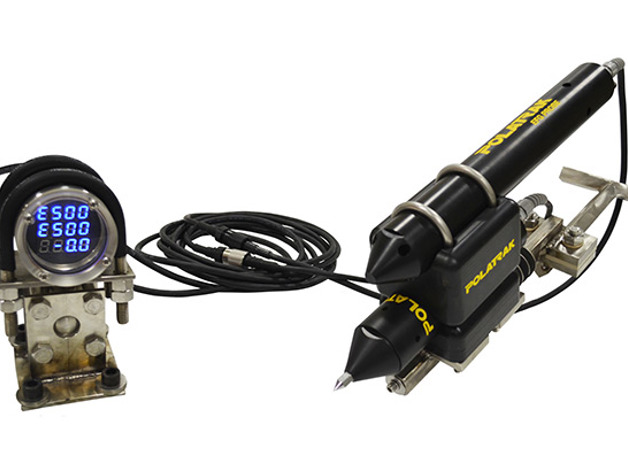

The EFG is an electric field gradient (EFG) measurement device that uses two replaceable silver/silver chloride reference electrodes separated by a known distance (13 inches) to provide a contactless method of determining anode activity and of measuring electric fields in seawater. When passing near a structure such as a pipeline, the current density reading can confirm that an anode is properly activated. Intended for use with the Deep C Meter™ 3000AD ROV survey system (shown), it’s the ideal complement to the industry-leading ROV-II™ contact probe.
Shop Polatrak® online

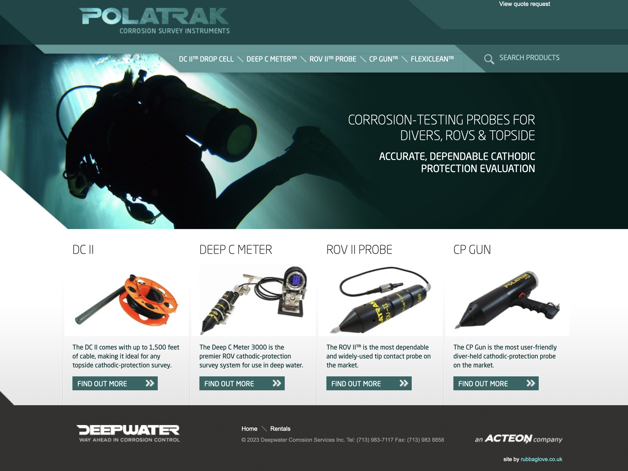

Polatrak® online store
Shop online for all Polatrak® instruments for divers, ROVs and topside deployment with details about kit contents, spare parts, service, rental information and more.
Specifications
Key Items
- Electrode Elements
- 2 X Ag/Agcl Sealed
- Depth
- 3,000M
- Reading TypeDeployment
- Proximity
- Deployment
- Rov
- Readout
- Deep C Meter
Technical Datasheet
