I-Rod® 3D CAD files

Download free CAD models of Nu-Bolt™ assemblies

Galvanized Nu-Bolt™

Galvanized Nu-Bolt™ with standard I-Rod®

(all sizes)

GPS-I EASM GPS-I PDF 2D GPS-I STEP 3D

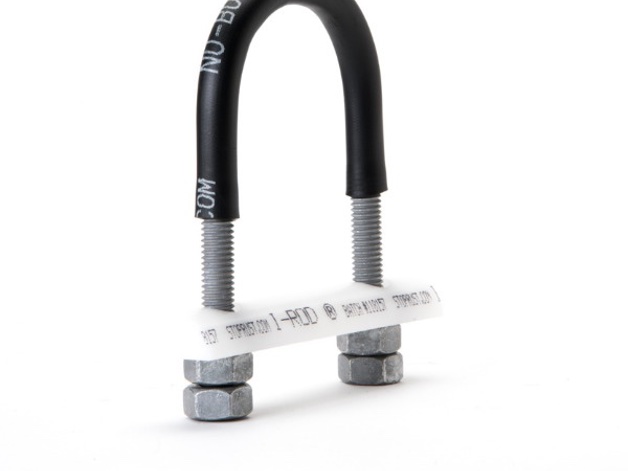

Galvanized Nu-Bolt with Regular I-Rod® 600.jpg

Galvanized Nu-Bolt™ with flats

Galvanized Nu-Bolt™ with standard I-Rod® with flats

(all sizes)

GPS-I Flats EASM GPS-I Flats PDF 2D GPS-I Flats STEP 3D

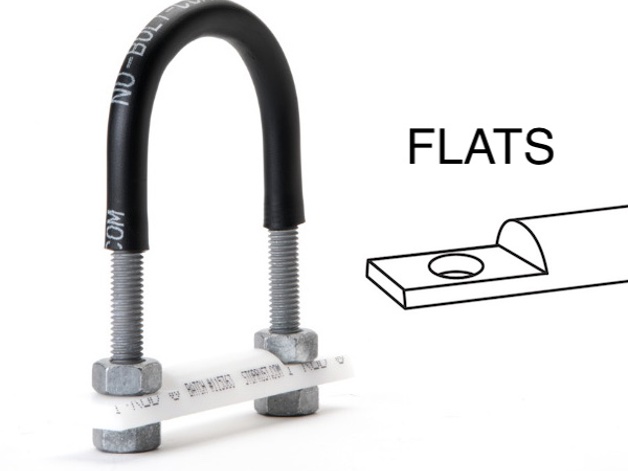

Galvanized Nu-Bolt with I-Rod® with Flats 600 2.jpg

Non-gripping galvanized Nu-Bolt™

Non-gripping galvanized Nu-Bolt® with standard I-Rod® with flats

(all sizes) XL U-bolts

GPS-I XL EASM GPS-I XL PDF 2D GPS-I XL STEP 3D

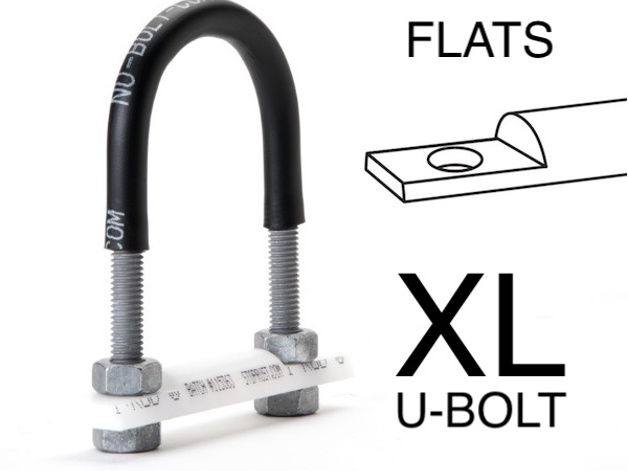

Galvanized Nu-Bolt XL with I-Rod® with Flats 600 2.jpg
