I-Rod® Adhesive™
High-strength adhesive for securing I-Rod® material to concrete and steel pipe supports
I-Rod® Adhesive™ provides a strong, permanent bond between I-Rod® strips and pipe supports
I-Rod® Adhesive™ is designed to securely anchor strips of I-Rod® in situations where drilling and bolting would be difficult. It’s a great solution for using I-Rod® on solid concrete supports that can’t be fitted with U-bolts, or for locations where drilling through metal is restricted or would require a hot work permit.
Adhesive features
Drying time
Working time is around seven minutes at 22ºC, and full strength is achieved after 72 hours.

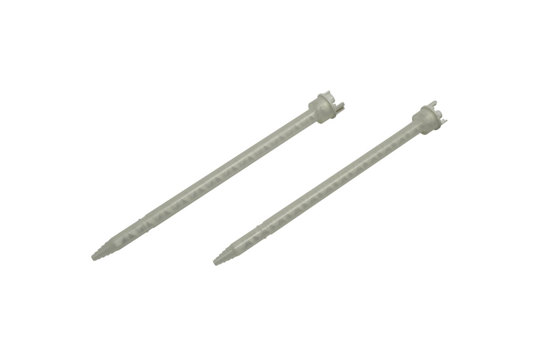

Nozzles

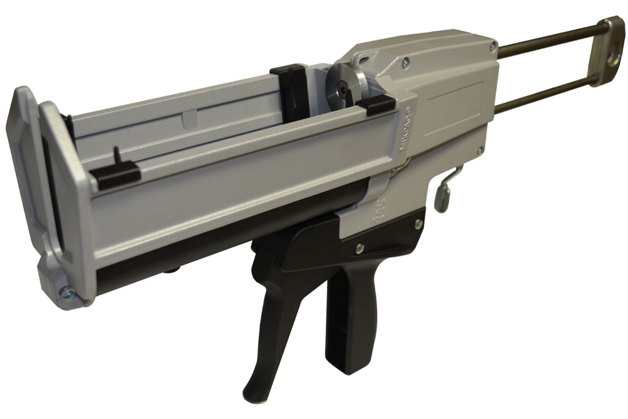

We also offer heavy-duty disposable nozzles for use with the required 1:1 mix ratio applicator gun.

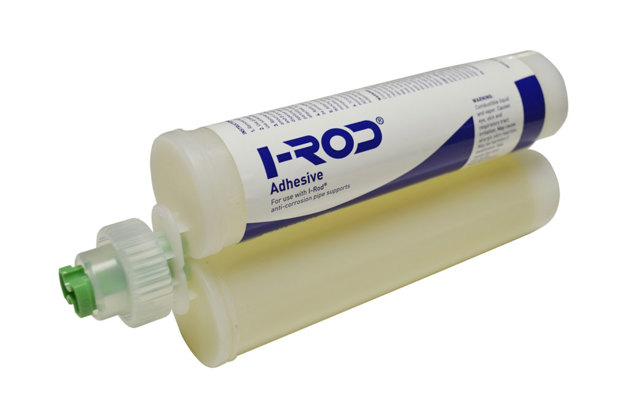

Cartridges
Each dual cartridge contains 13.5 fl. oz. (400 ml) of I-Rod® Adhesive™.
A strong bond

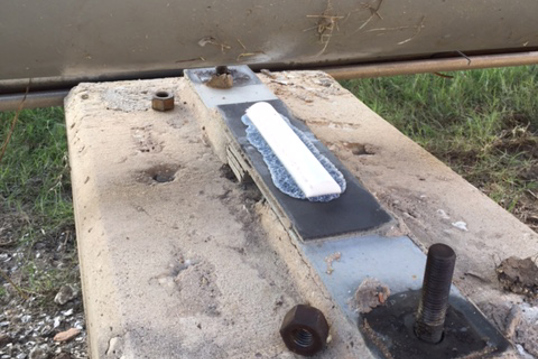

I-Rod® Adhesive™ provides an extremely strong bond between I-Rod’s tough thermoplastic material and the steel or concrete surfaces that support it.

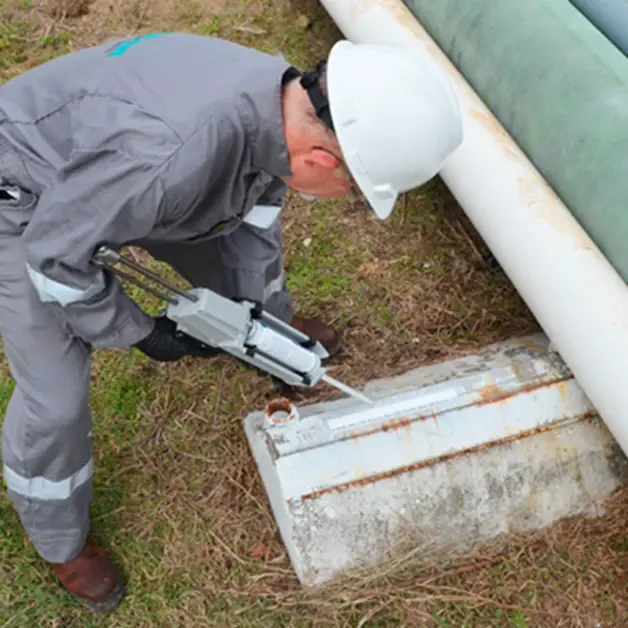

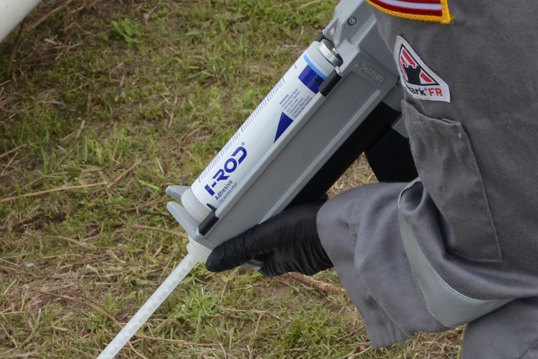

I-Rod® Adhesive™ application
I-Rod® Adhesive™ will adhere to steel and concrete.
I-ROD® ADHESIVE™ FOR MULTIPLE SURFACES
I-Rod® Adhesive™ was selected from over 30 of the best multi-surface adhesives in the industry. For maximum effectiveness, I-Rod® Adhesive™ must be applied under certain conditions.
Tech datasheet
Procedure

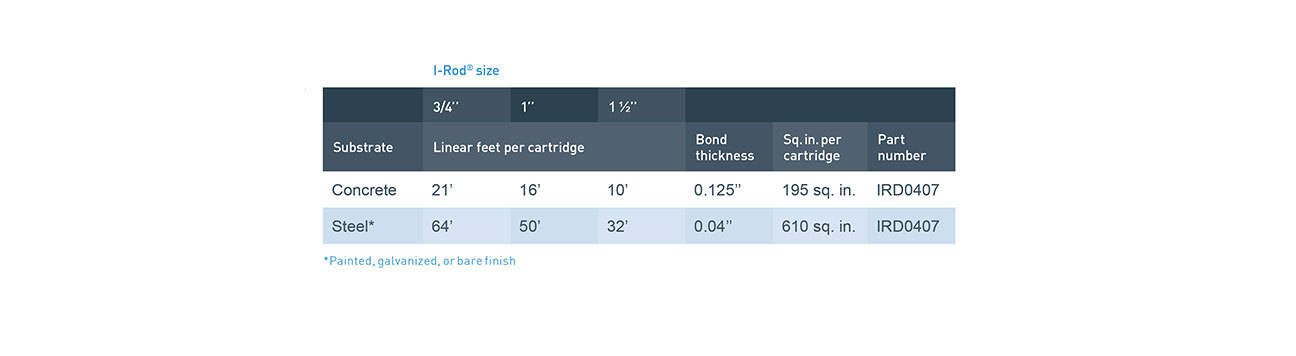

Cartridge coverage
Download Nu-Bolt® 3-D CAD models
Download free CAD models of Nu-Bolt® assemblies for use in designing your next project. Hundreds of files in the most popular CAD formats are available.
The I-Rod® online store is now open for business
The full line of I-Rod® products and accessories are now available at our new e-commerce site at I-Rod.com. All of our I-Rod® offerings, specs and downloads can be found in one place, along with convenient online ordering in the US and UK, with other regions coming soon.
I-Rod Adhesive Gallery
Onshore large diameter pipe
This Nu-Bolt® was installed on a midstream pipeline near previous repair work caused by a support that didn't use Nu-Bolt®.
Nu-Bolt® and I-Rod®
Galvanized, Sermagard and 316 SS U-bolts with the three types of I-Rod®: Standard (white), HT (amber) and PEEK (tan).
Nu-Bolt® offshore
Nu-Bolt® began as an offshore product, but has since been specified by all major onshore and offshore operators.
High compressive strength
One piece of I-Rod® can support up to 10,000 lbs of weight at a single point.
Batch numberin
There are a lot of imposters out there pretending to be I-Rod®. Make sure you have a genuine C of C from Deepwater and that the batch number is clearly visible.
