I-Rod® Clip

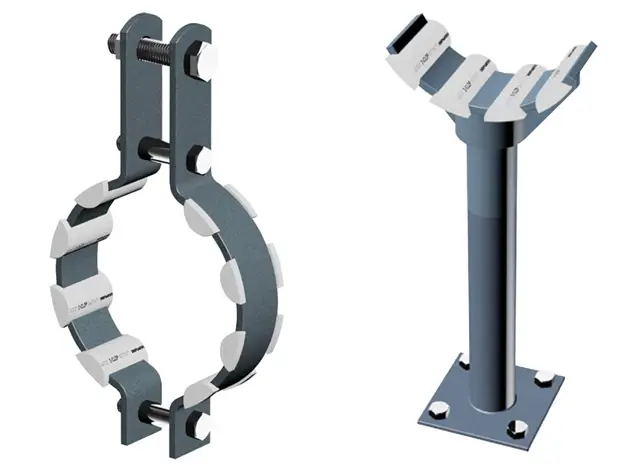

Prevents corrosion at pipe shoes, cradles and saddle clamp supports

Conventional pipe support designs trap water, which soon leads to corrosion that can eventually cause pipe failure.

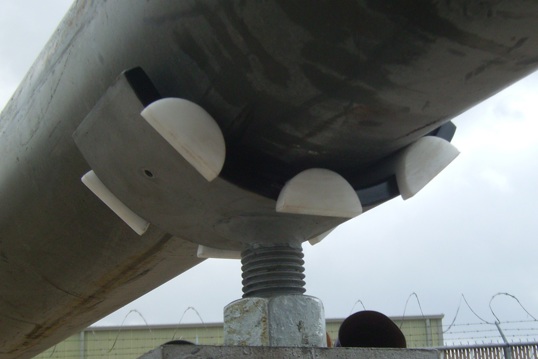

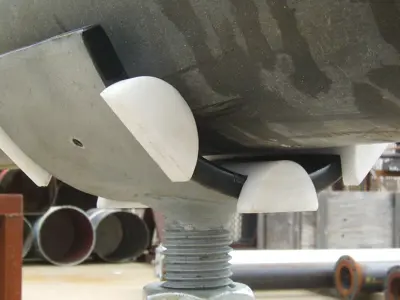

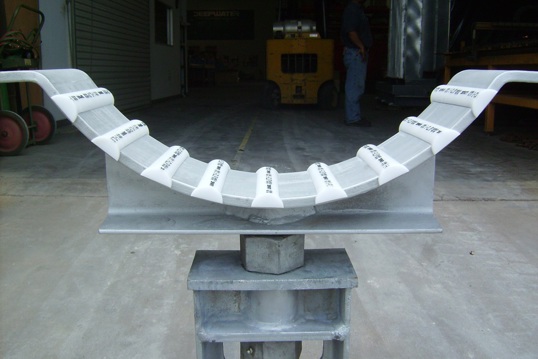

I-Rod® Clips installed in a pipe shoe. The half-round shape allows moisture to evaporate, eliminating the crevice.

Key design points

Screen Shot 2016-11-06 at 12.01.38 PM.png

Strength

Exhaustive lab tests have confirmed that I-Rod® has excellent compressive strength and a very low friction coefficient.

Inspection

I-Rod® provides an electrically isolated stand-off between pipe and supporting clamp, allowing easy maintenance and inspection.

Half-round shape

I-Rod's half-round shape minimizes contact between the pipe and the support, eliminating moisture accumulation.

Extreme temperatures

I-Rod® is available in three different materials that collectively are rated to perform in temperatures ranging from -166° F to 480° F.

How to order I-Rod® Clips

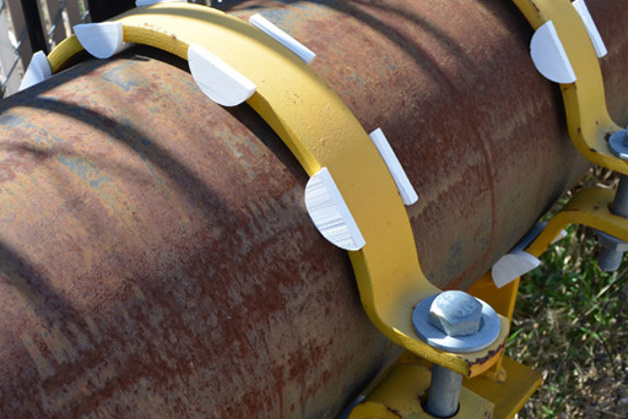

I-ROD® CLIPS FOR CLAMPS AND CRADLES

I-Rod® Clips are only available from Deepwater Corrosion Services and our licensed distributors and international resellers. I-Rod® Clips come in a few different configurations, including I-Rod® HT Clips and I-Rod® PEEK Clips.

Request a quote

How to order

I-Rod® Catalog

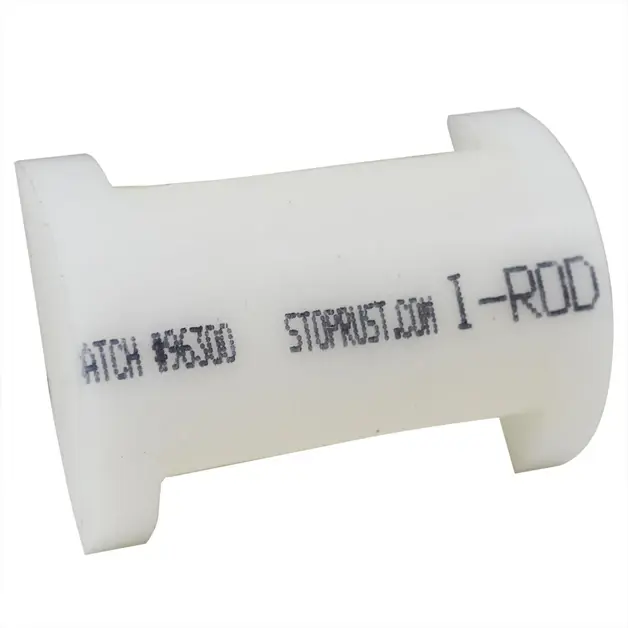

What is I-Rod®?

I-ROD® IS A SPECIAL TYPE OF PLASTIC

I-Rod® Clips are made from the same I-Rod® that was originally developed for I-beam style supports. I-Rod® has a high compressive strength and is subject to very little creep over time, so it can last up to 20 years in the field.

I-Rod® specifications

I-Rod® material FAQs

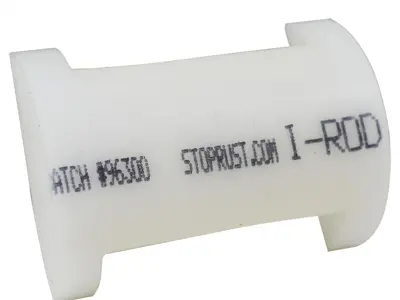

I-Rod® Clip specs

Download Nu-Bolt® 3-D CAD models

Download free CAD models of Nu-Bolt® assemblies for use in designing your next project. Hundreds of files in the most popular CAD formats are available.

3D CAD models

The I-Rod® online store is now open for business

The full line of I-Rod® products and accessories are now available at our new e-commerce site at I-Rod.com. All of our I-Rod® offerings, specs and downloads can be found in one place, along with convenient online ordering in the US and UK, with other regions coming soon.

GO TO SITE

I-Rod® Clip

Eliminate crevice corrosion at pipe supports
