Sacrificial anodes

Aluminum and zinc anodes for cathodic protection of offshore and marine assets

ANODES FOR NEW ASSETS

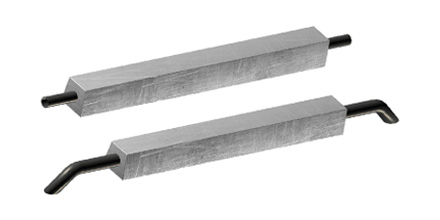

PLATFORM ANODES

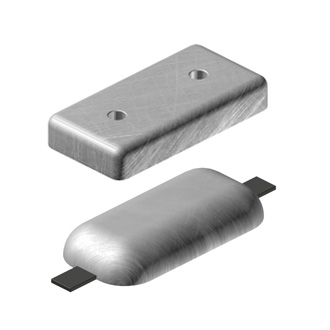

HULL ANODES

PIER & PILING ANODES

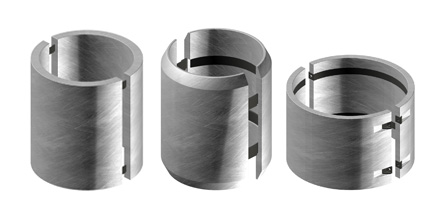

PIPELINE BRACELET ANODES

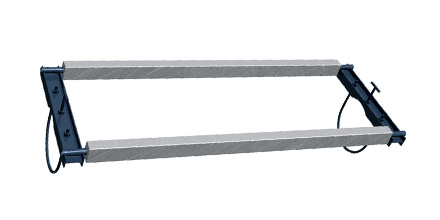

DUAL CLAMP-ON ANODES

ALLOY SPECIFICATIONS

CHEMISTRIES FOR ALL DEPTHS

Water salinity and temperature requires different anode chemistries for optimal performance.  Deepwater has the Deep07 and Deep10 aluminum chemistries for most seawater applications.

REQUEST A QUOTE

Alloy type Deep7 Aluminum Deep10 Aluminum Zinc MIL-A-18001-K
Iron (Fe) 0.07 max 0.10 max 0.005 max
Silicon (Si) 0.10 max 0.10 max N/A (0.00)
Copper (Cu) 0.003 max 0.006 max 0.005 max
Zinc (Zn) 4.75 - 5.25 4.75 - 5.75 remainder
Indium (In) 0.015 - 0.025 0.010 - 0.020 N/A (0.00)
Titanium (Ti) 0.025 max 0.025 max N/A (0.00)
Others (each) 0.02 max 0.02 max 0.10 max
Aluminum (Al) remainder remainder 0.1 - 0.5
Lead (Pb) N/A (0.00) N/A (0.00) 0.006 max
Cadmium (Cd) N/A (0.00) N/A (0.00) 0.025 - 0.07



Electrochemical properties

Alloy type Deep7 Aluminum Deep10 Aluminum Zinc MIL-A-18001-K
Open circuit potential (-) 1.08 V vs Ag/AgCl sw. (-) 1.08 V vs Ag/AgCl sw. -1.05 Volts (Ag/AgCl)
Closed circuit potential(1) (-) 1.05 V vs Ag/AgCl sw, (-) 1.05 V vs Ag/AgCl sw, N/A
Seawater capacity @25C 1100 A-Hr/lb. (2420 A-Hr/Kg.) 1100 A-Hr/lb. (2420 A-Hr/Kg.) N/A
Seawater capacity @ 5C 1100 A-Hr/lb. (2420 A-Hr/Kg.) Variable (2) N/A
Seabed mud capacity (3) 950 A-Hr/lb (2090 A-hr/Kg.) 950 A-Hr/lb (2090 A-hr/Kg.) N/A
Seabed mud capacity @ 5C 950 A-Hr/lb (2090 A-hr/Kg.) Variable (2) N/A
Nominal current capacity N/A N/A 780 amp-hr/kg



Physical properties

Alloy type Deep7 Aluminum Deep10 Aluminum Zinc MIL-A-18001-K
Alloy density 0.105 lb/in3 (2.91 gm/cm3) 0.105 lb/in3 (2.91 gm/cm3) N/A
Cost ratio Low Iron (Fe) Aluminum (Al) Ingot < 0.05 Fe Normal Grade Al Sows N/A
Raw material & conversion 1.10 1.00 N/A
