RetroBuoys™ inspected after 18 years
Deepwater’s ICCP sled retrofit system continues to perform flawlessly after nearly 20 years.

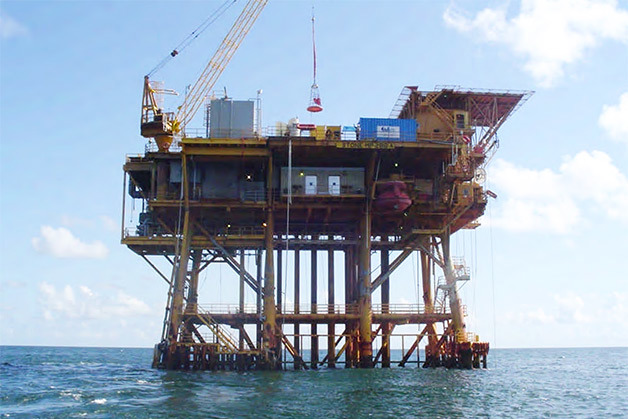

Deepwater was contracted in 2024 to provide a survey and inspection of a platform that has been protected by a pair of RetroBuoys™ since 2006. The Gulf of Mexico platform, located in 420 feet of water about 75 miles south of the Mississippi / Alabama border, was outfitted with Deepwater's RetroBuoys™ when the original cathodic protection system began to fail. The RetroBuoys™ are powered by two 400A transformer/rectifiers that were part of the 2006 retrofit.
CP survey data potentials taken in 2024 show that all four of the platform’s legs continue to receive adequate protection; Leg A1: –1059 mV, Leg A2: –1062, Leg B1: –1055, and Leg B2: –1053.
An inspection of the transformer/rectifiers also found them in good order, although oil levels were noted as being low.

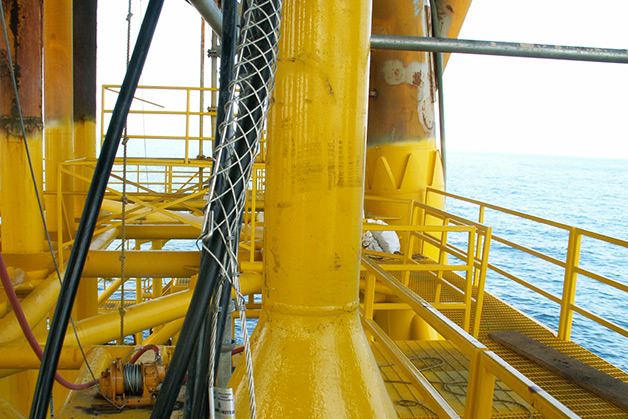

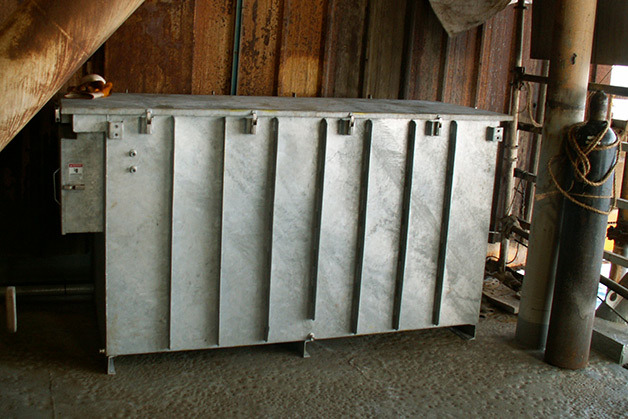

The transformer/rectifier during installation in 2006.

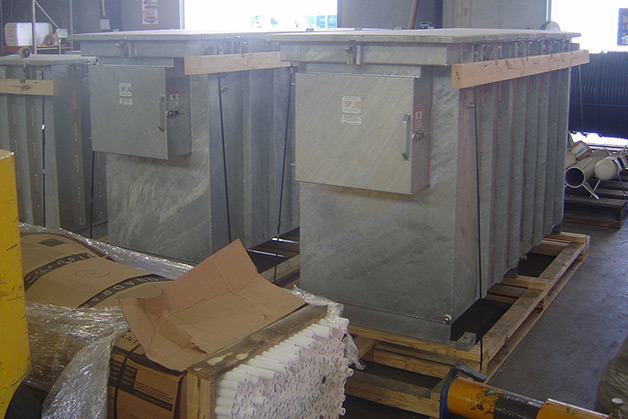

The transformer/rectifiers before installation in 2006.

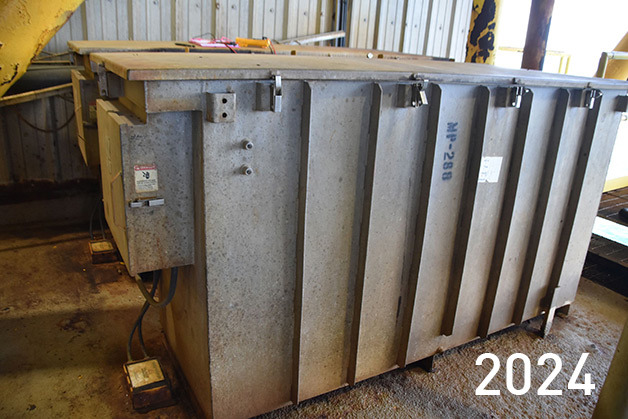

The (TR1) transformer/rectifier examined during the 2024 inspection.

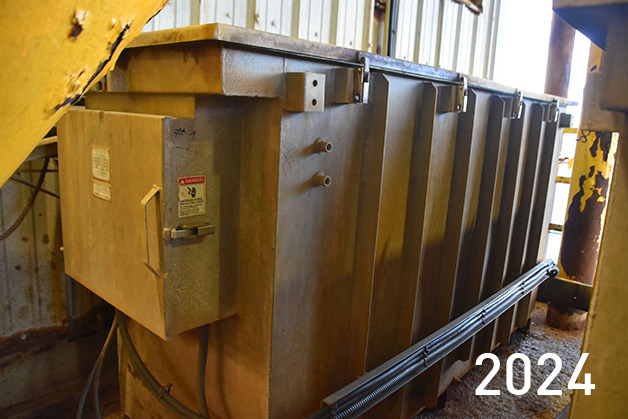

The (TR2) transformer/rectifier during the 2024 inspection.

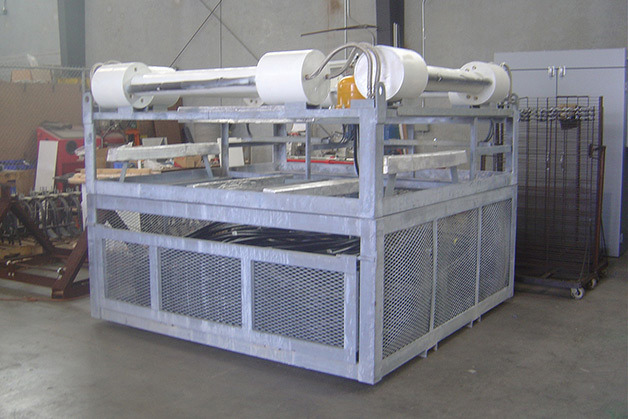

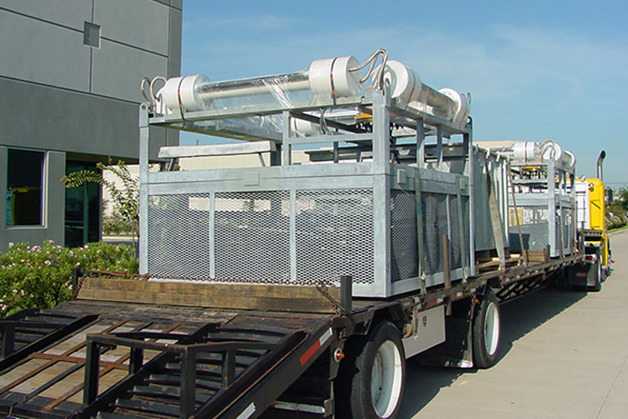

The state-of-the-art 2006 RetroBuoy™ before installation.

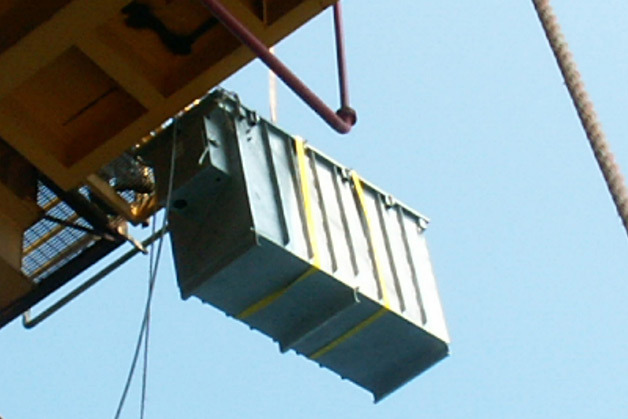

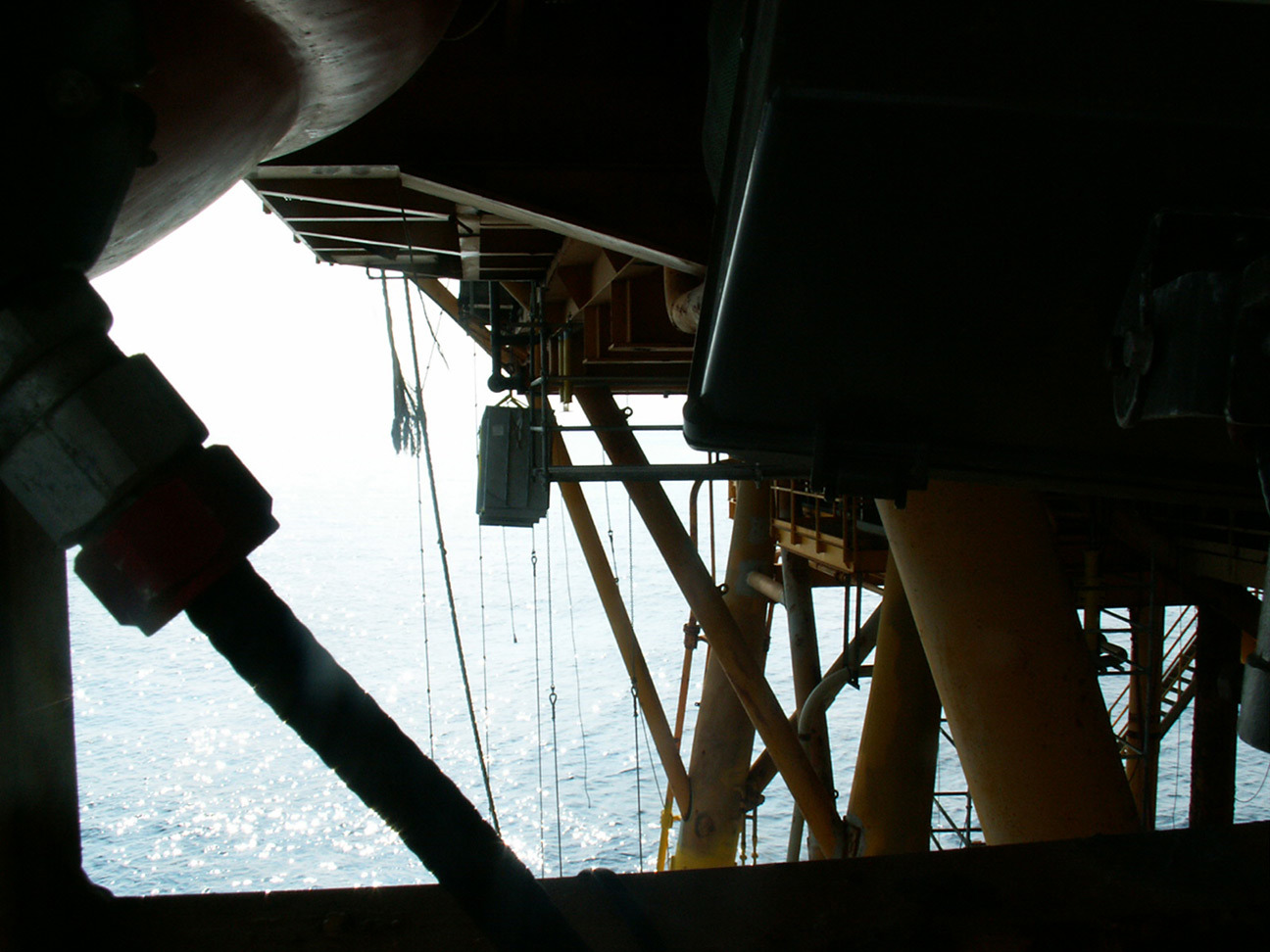

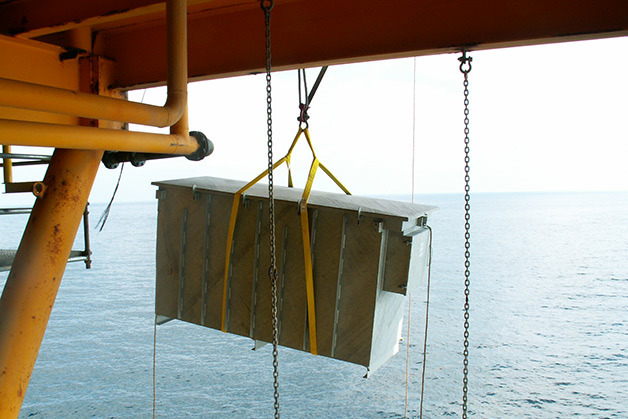

One of the TRs being lifted into place in 2006.

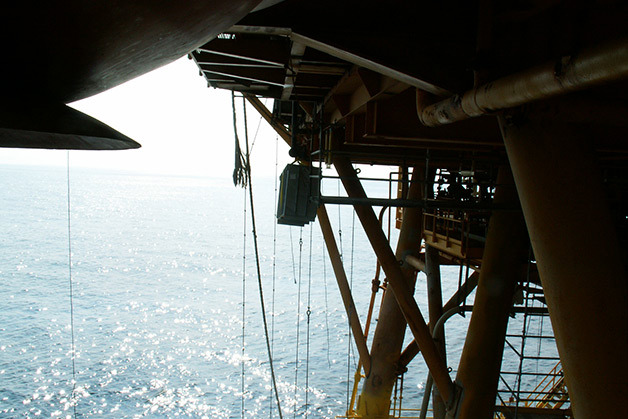

One of the TRs being lifted into place in 2006.
One of the TRs being lifted into place in 2006.
