Zafiro Producer FPSO RetroBuoys™
RetroBuoy™ ICCP system installed on FPSO in Equatorial Guinea
![prb30pic1](/media/3948/prb30pic1.jpg?width=1296&height=0&mode=crop)

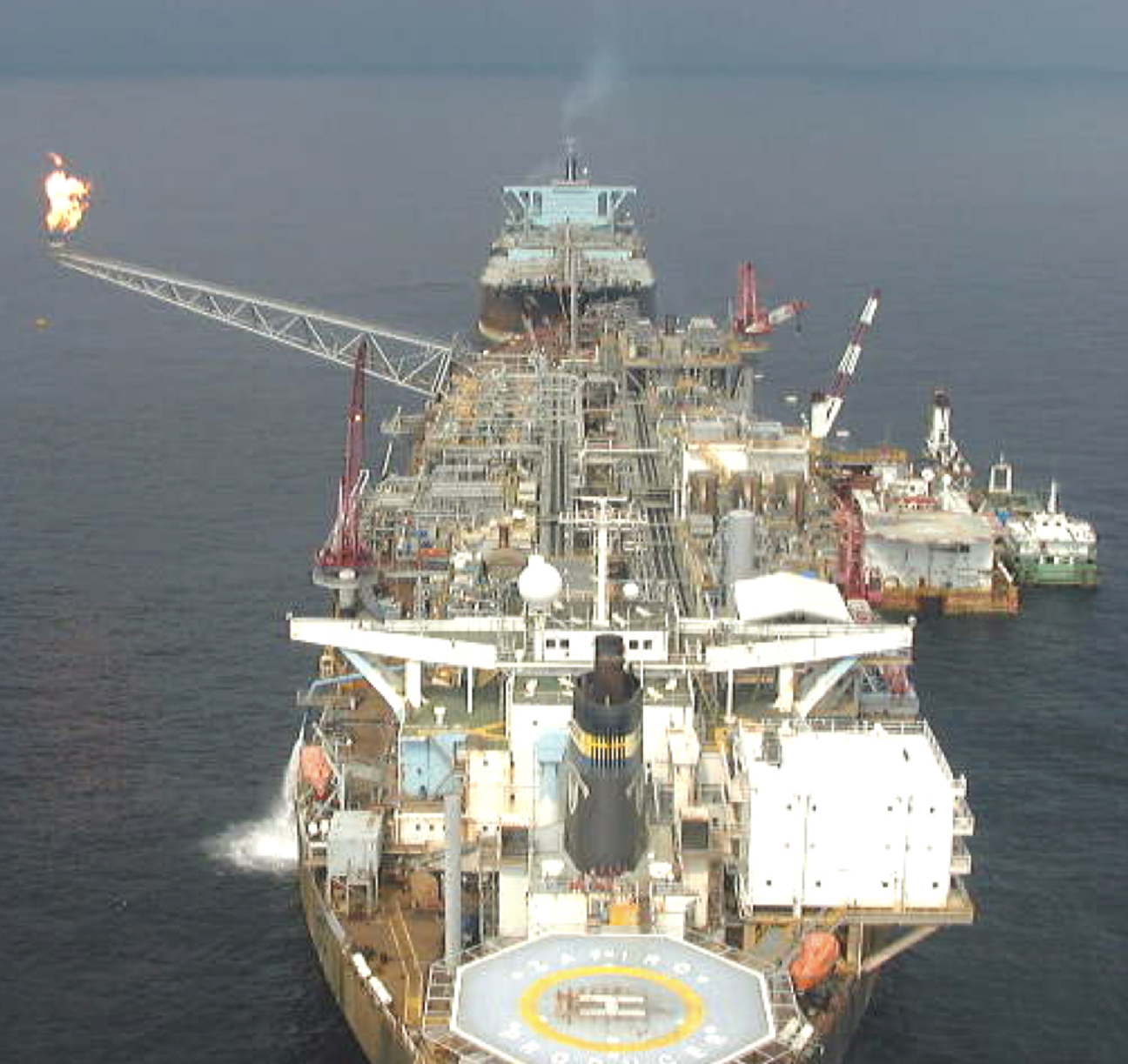

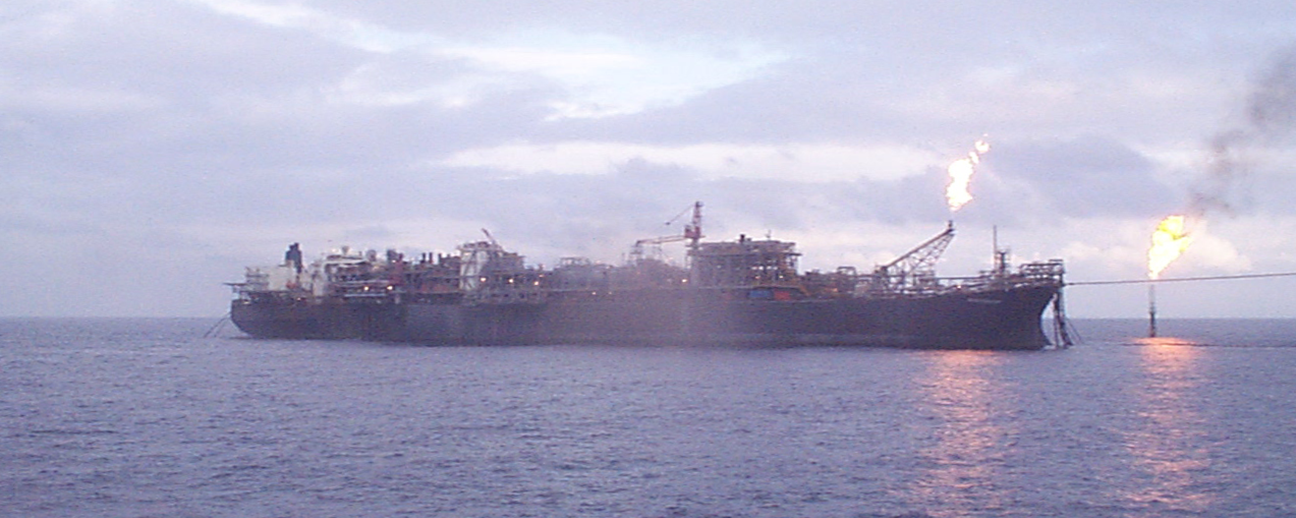

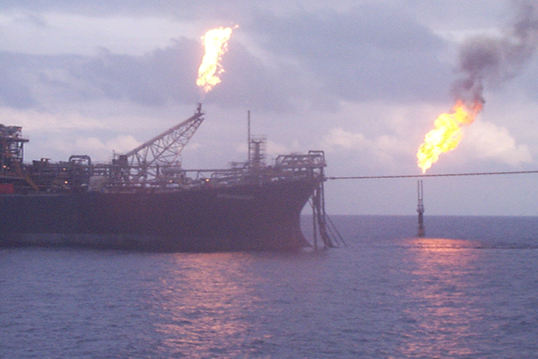

Deepwater designed and supplied an Impressed Current Cathodic Protection system for ExxonMobil’s Zafiro Producer FPSO

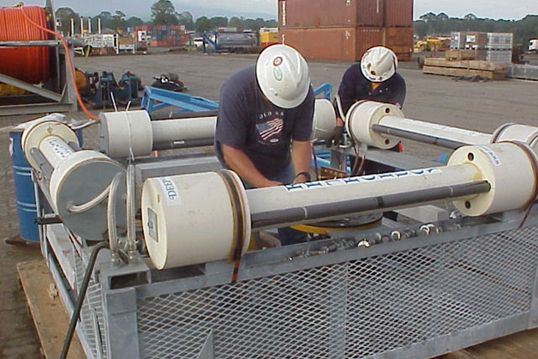

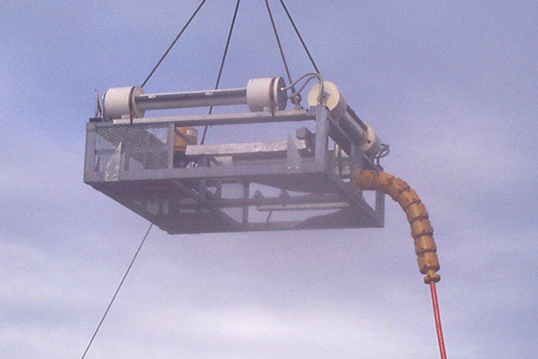

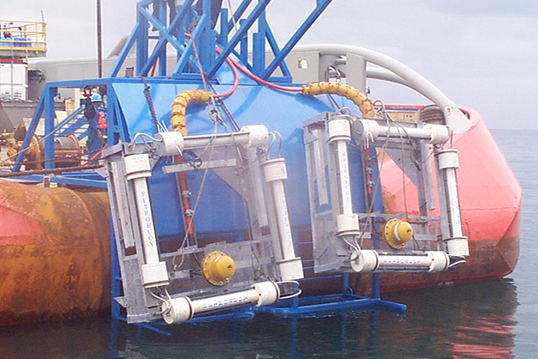

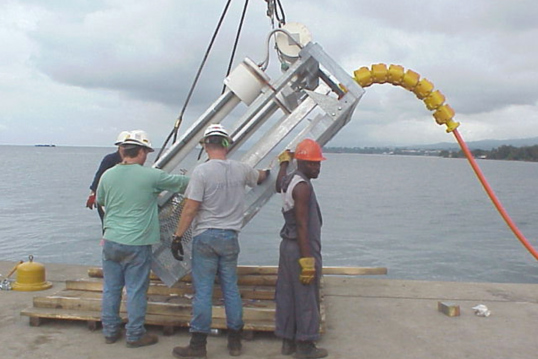

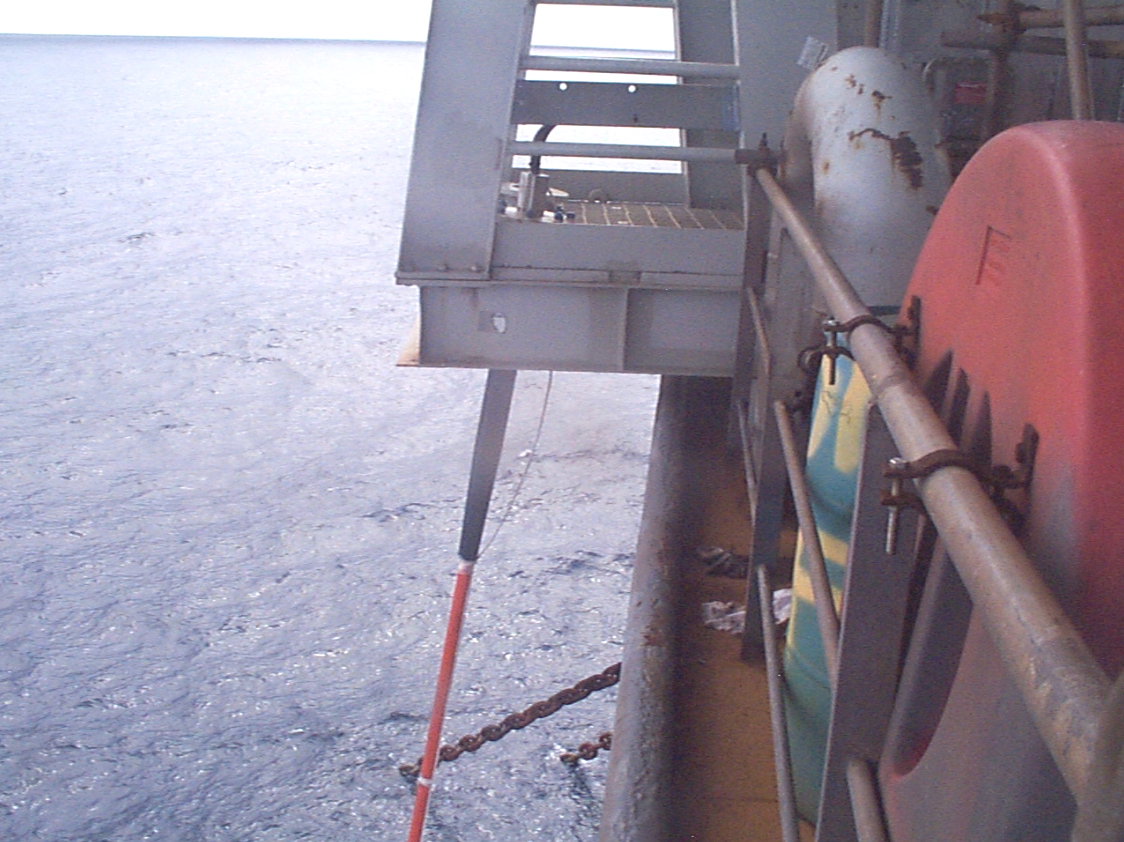

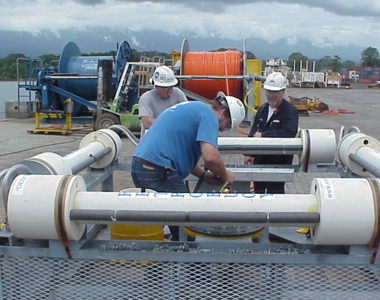

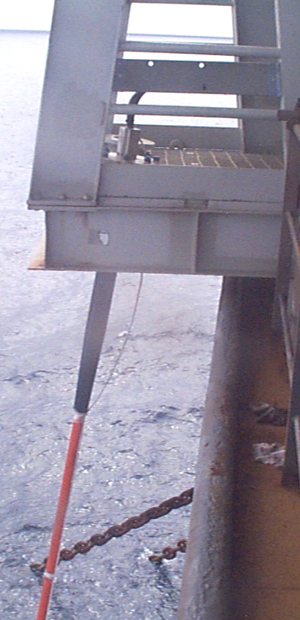

After an ExxonMobil engineering review of all available options, Deepwater’s RetroBuoy™ ICCP system was chosen to retrofit the cathodic protection on their Zafiro Producer FPSO located offshore of Equatorial Guinea near the Nigerian border. Two 400 amp RetroBouys™ were installed using a dynamic supply cable system between the anode sleds on the bottom and the FPSO deck.
![prb30pic9.jpg](/media/3949/prb30pic9.jpg?width=538&height=359&mode=crop)
![prb30pic25.jpg](/media/3950/prb30pic25.jpg?width=538&height=359&mode=crop)
![prb30pic5.jpg](/media/3958/prb30pic5.jpg?width=538&height=359&mode=crop)

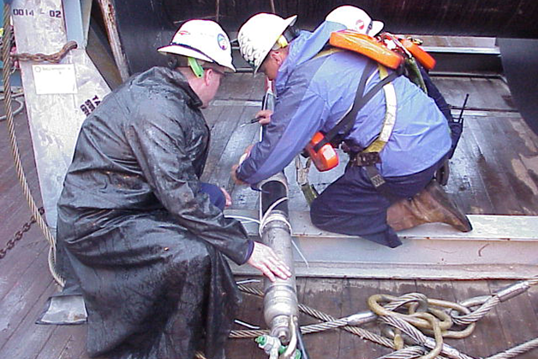

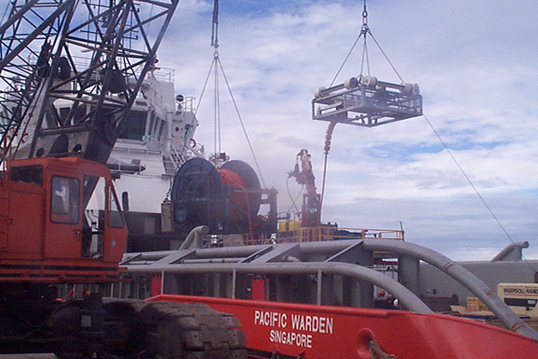

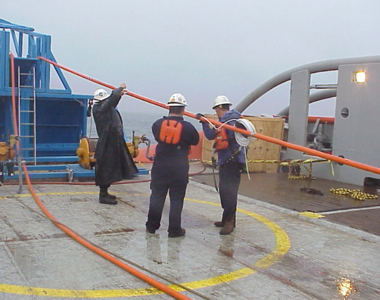

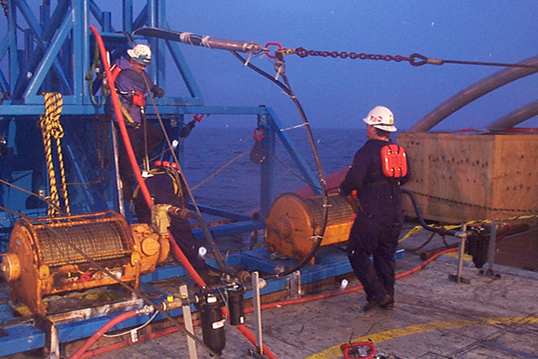

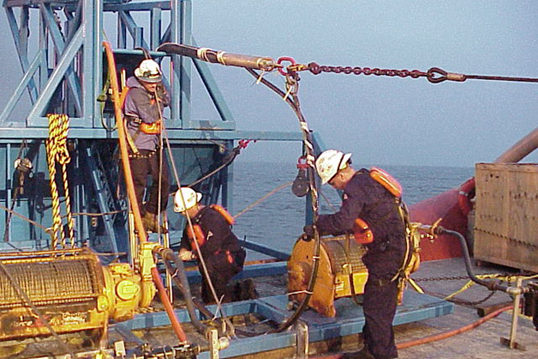

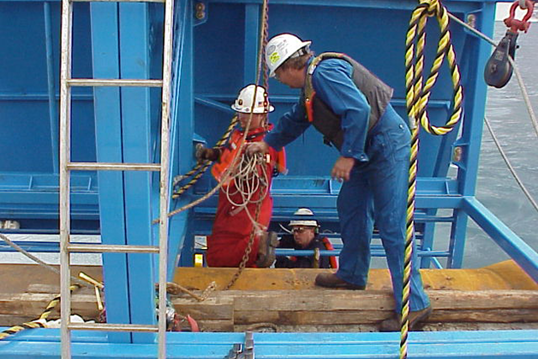

Installation
The offshore installation of the sleds took two days, and field time was ten days; total output was around 300 amps. CP readings afterward ranged from a minimum hull potential of -995mV to a maximum of -1050mV.
