Duncan Wharf

Various retrofit CP anode systems installed for Canadian wharf in semi-arctic conditions


Deepwater installs Raparound™ anodes, VSEs and RetroBuoys™ for a Canadian wharf in semi-arctic conditions

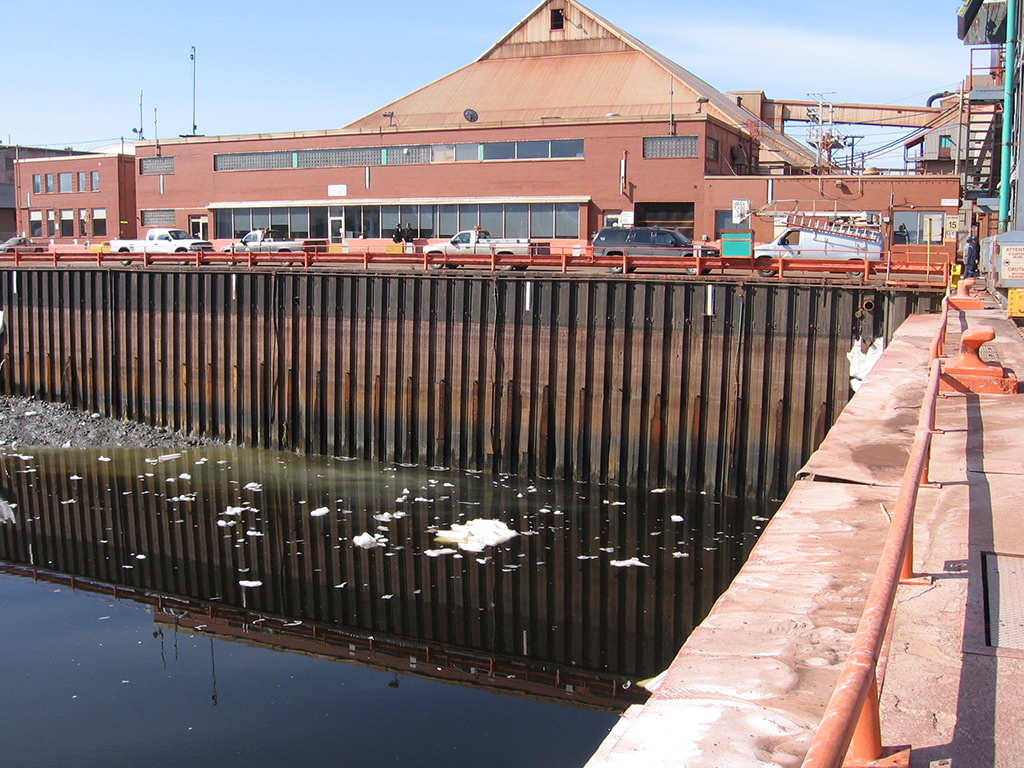

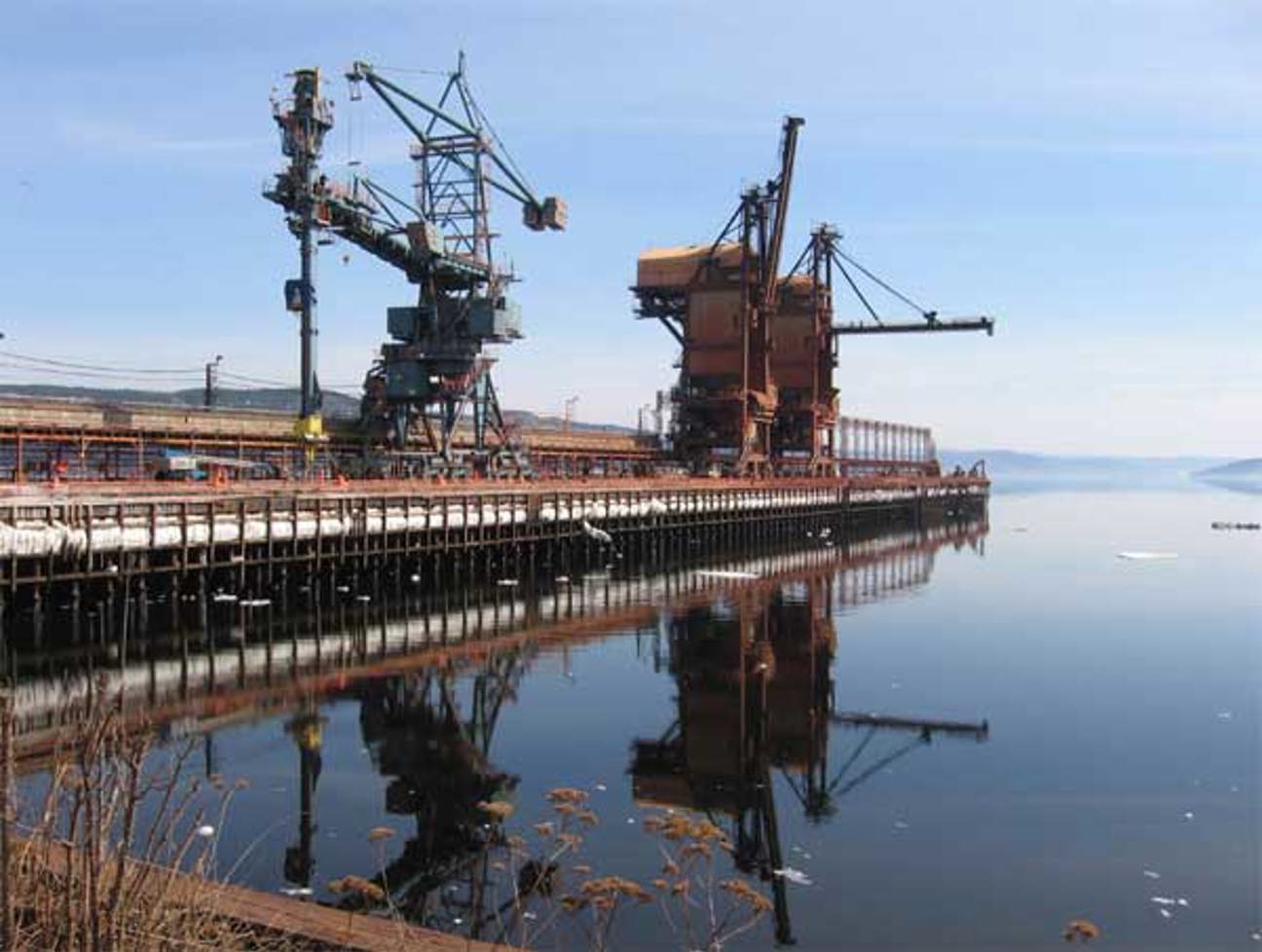

In 2006, Deepwater Corrosion Services performed a cathodic protection retrofit for the Duncan Wharf, an aluminum-loading berth in Port Alfred, Quebec, Canada.  Assets to be protected included an H-pile pier (in semi-arctic conditions) and one sheet-pile bulkhead section. The retrofit cathodic protection (CP) system consisted of:

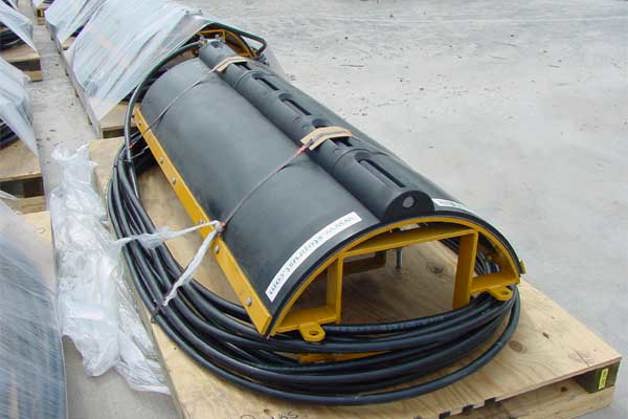

• 40 x Raparound pile anodes (rated 50 Amperes each)
• 8 x RetroBuoys (ICCP buoys rated 200 Amperes each)

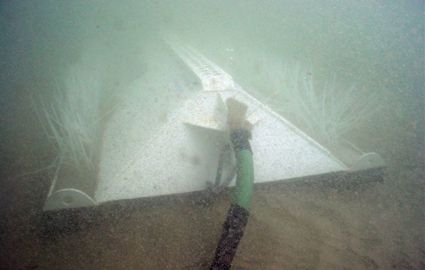

• 2 x VSE anodes (Self-burying ICCP anode rated 50 Amperes each)

Download Case Study

Lower maintenance costs

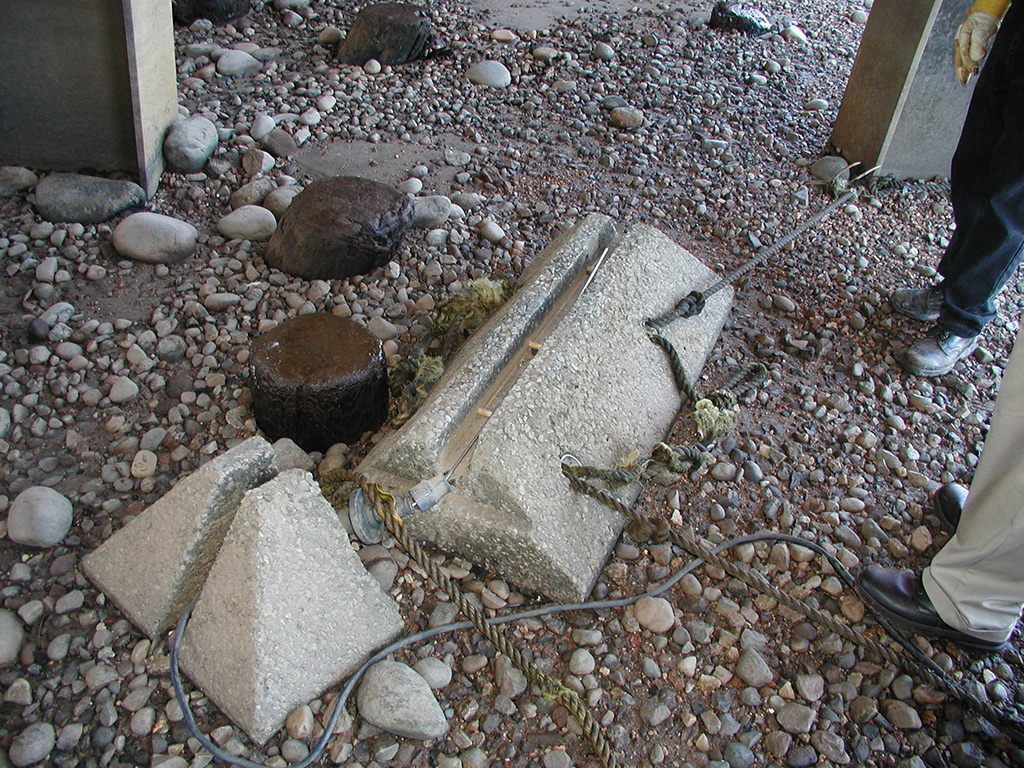

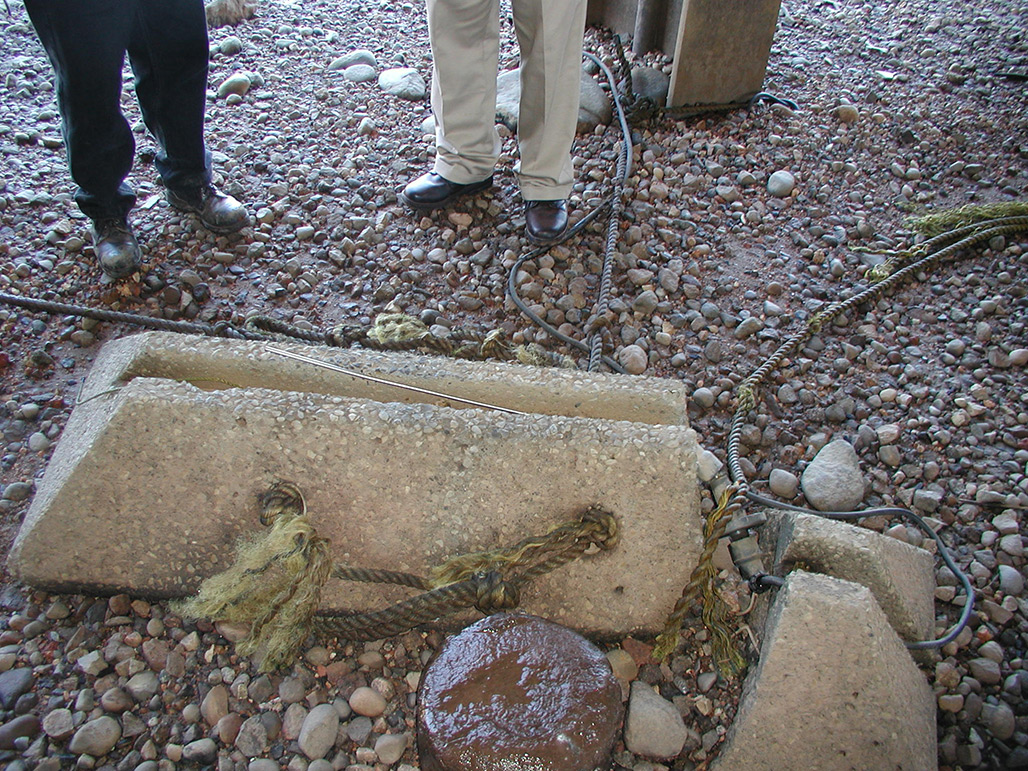

The existing cathodic-protection system on this jetty structure was an impressed-current system constantly under repair. The maintenance costs were consistently exceeding $250,000 per year. Understandably, the operator wanted to reduce costs by retrofitting the structure with a more reliable system. Ice and high flow/tide conditions as well as brackish water made most designs inadequate.

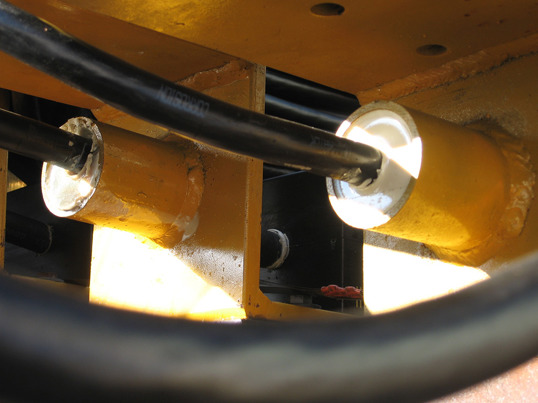

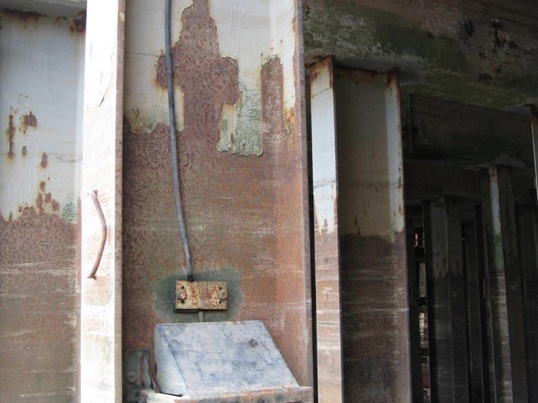

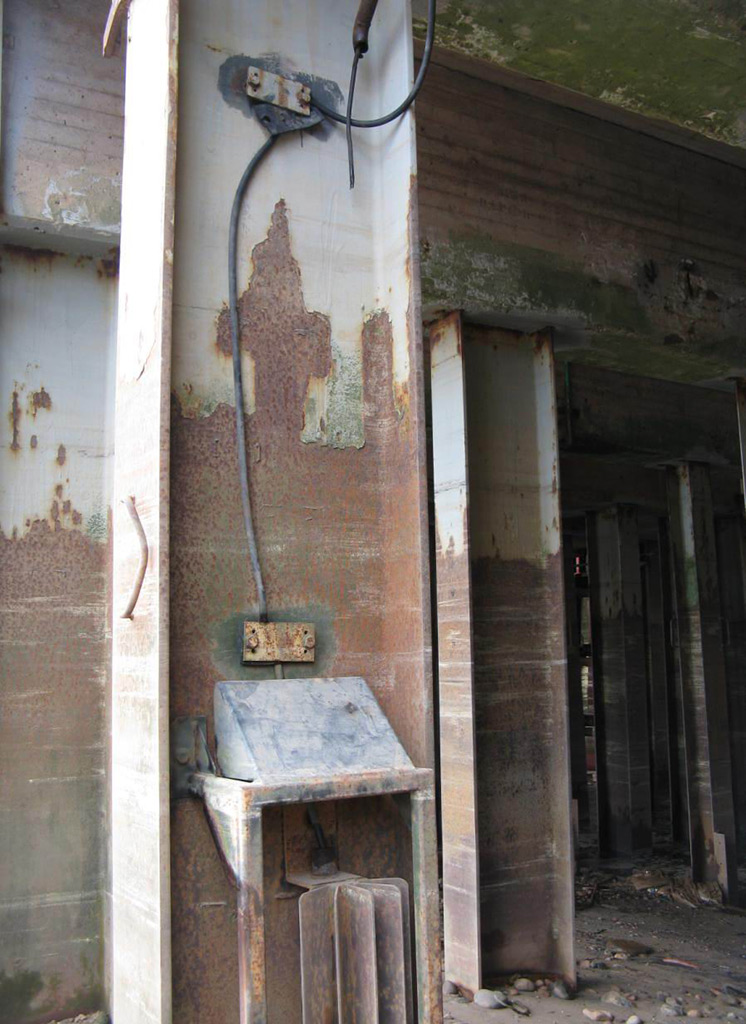

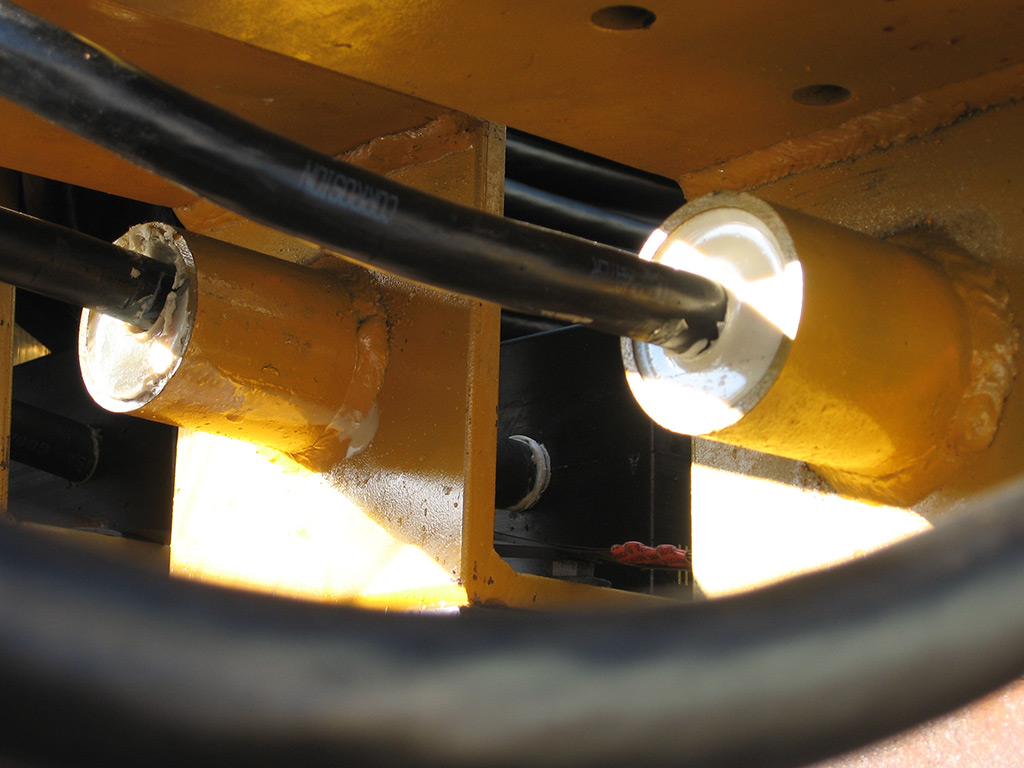

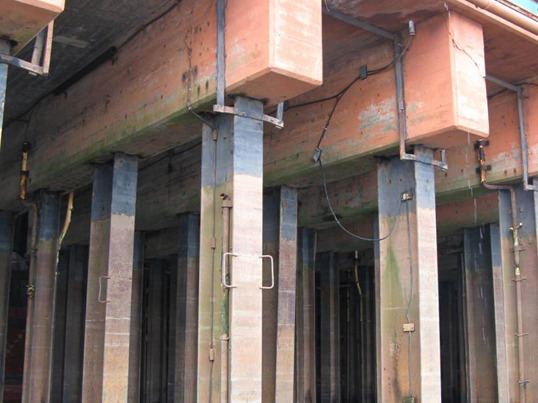

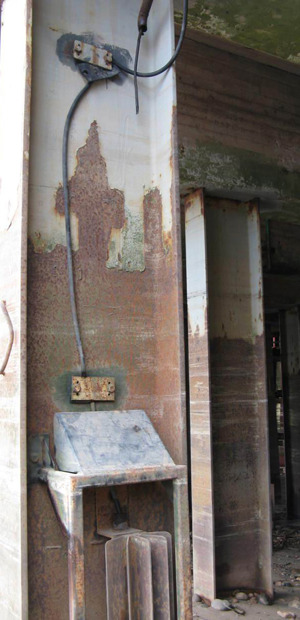

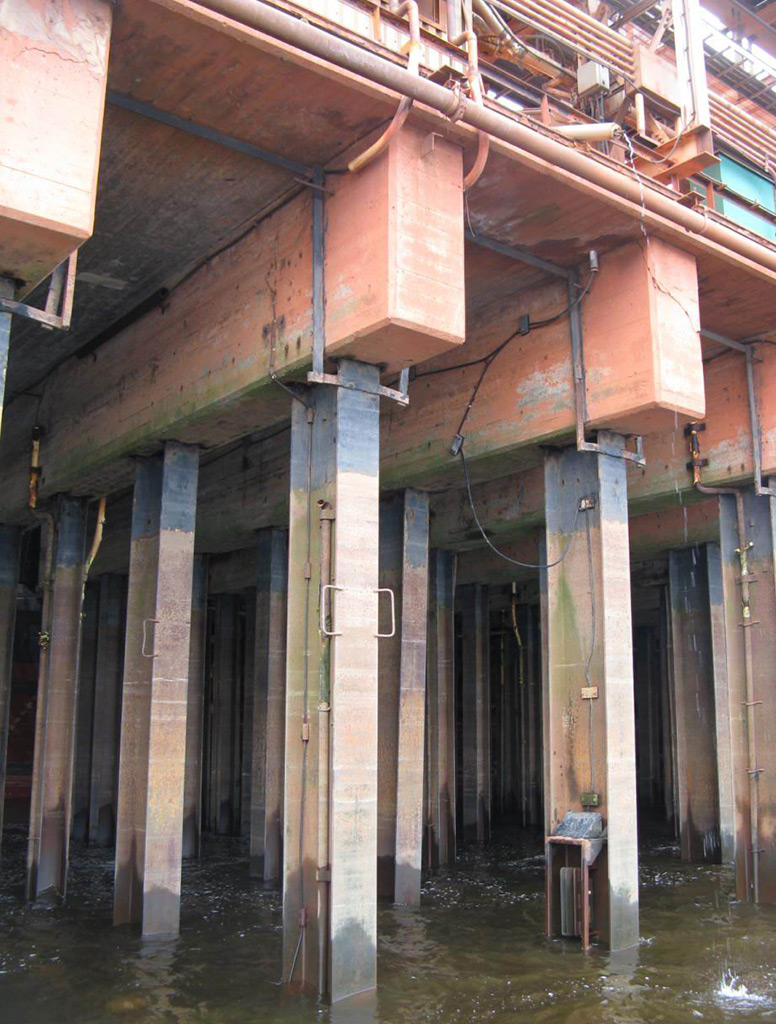

The system design included power supplies for all ICCP anodes and a monitoring system (DR-2 CD reference electrodes and monitoring panels) to verify the system's performance. The cathodic-protection design uses the RetroBuoy™ systems to provide the bulk of the required current from a remote location (many meters away from the dock). The Raparound™ anodes protect the piles that are partially shielded from the throw of the buoys, and the VSE anodes protect the remaining section of the bulkhead.
