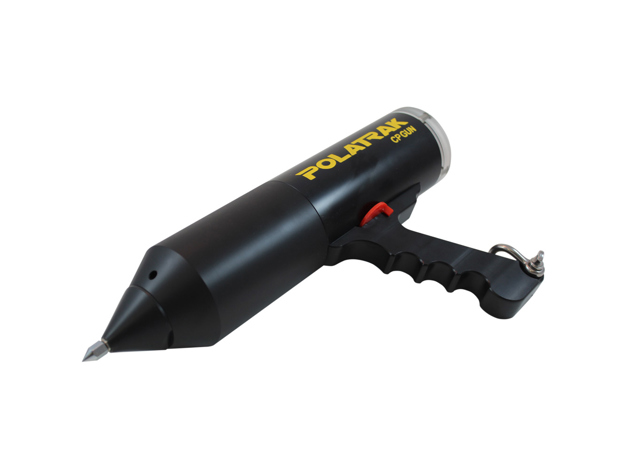

Polatrak® CP Gun

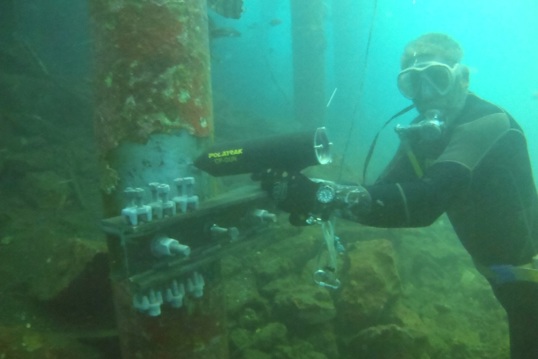

Bathycorrometer-style cathodic protection testing probe for divers

Key Design Points

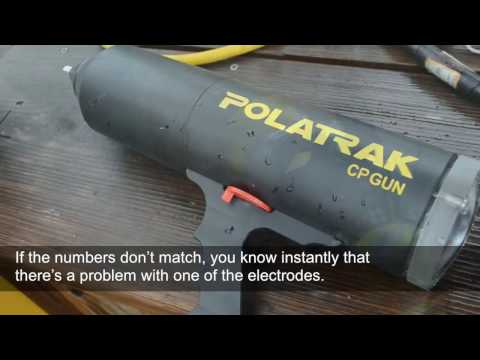

TWIN ELECTRODES


Replaceable, dual silver / silver chloride (Ag/AgCl) electrodes provide real-time calibration, and allow the dive to be completed even if an electrode fails.

BATTERY LIFE


The CP Gun uses two standard 9V batteries, which are easily replaced in the field. With its convenient on/off switch, the batteries can last the entire dive season.

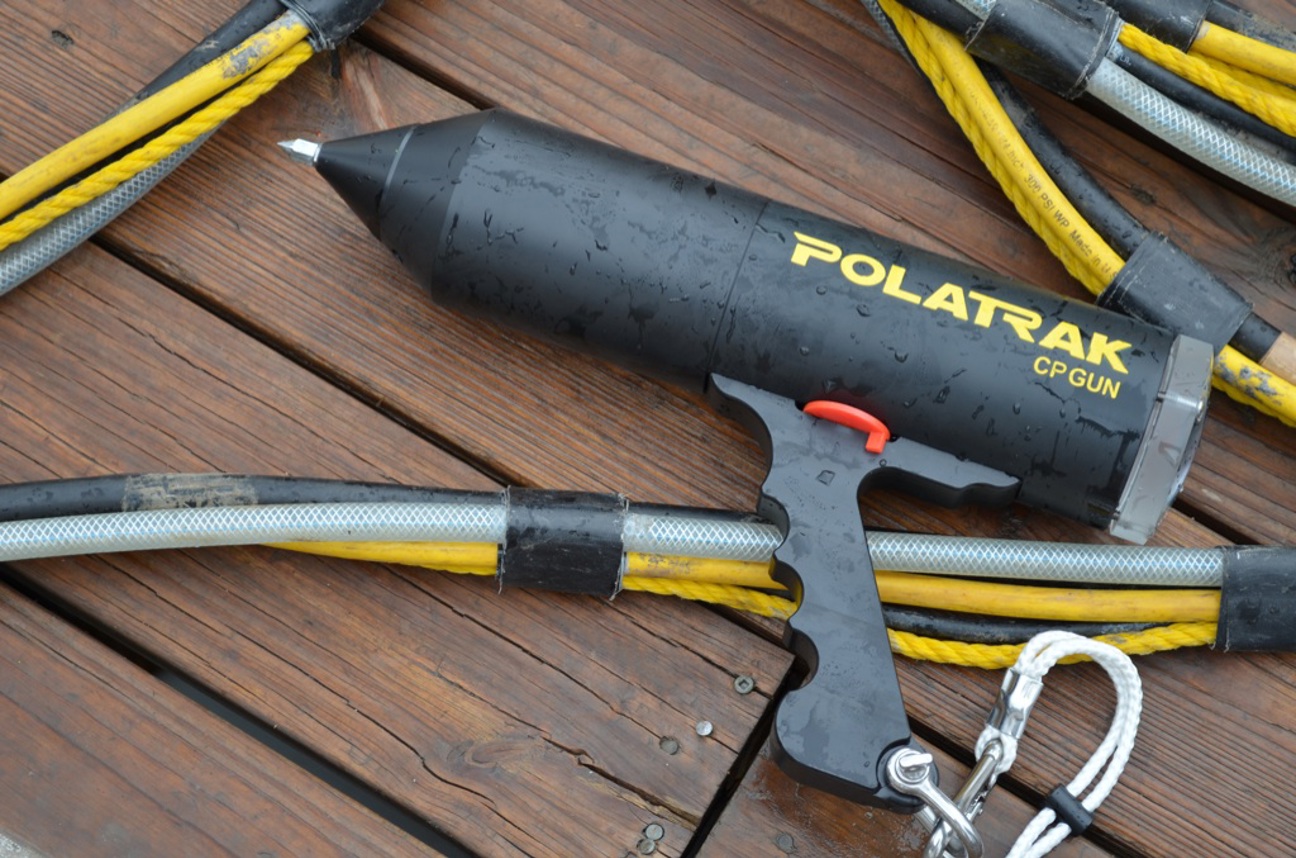

SERVICEABLE


The sturdy design of the CP Gun probe allows easy replacement of worn or damaged parts without having to replace the entire probe. It can be serviced easily in the field.

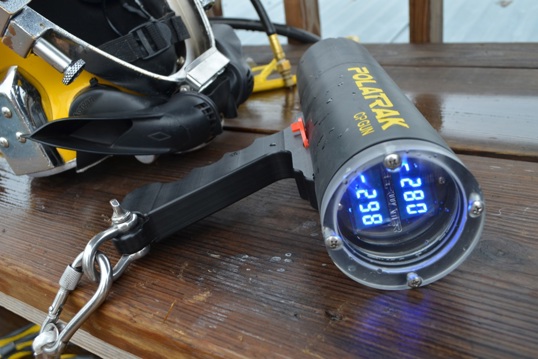

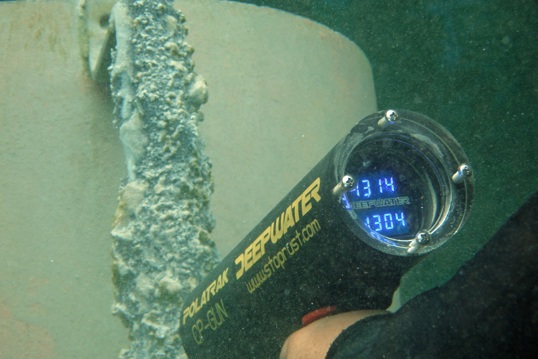

BRITE LEDs

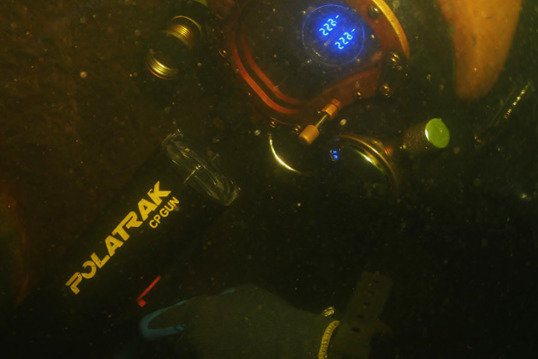

The CP Gun is the only diver-held probe with bright, backlit LED readouts that help the diver see CP readings in low-visibility conditions.

Specifications

KEY ITEMS

ELECTRODE ELEMENTS

2 x Ag/AgCl sealed

DEPTH

300m

READING TYPE

Contact

DEPLOYMENT

Diver

READOUT

Self Contained LED readout

DATASHEET

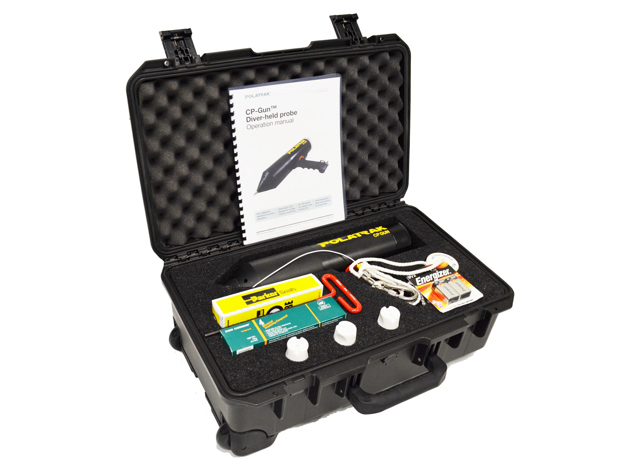

CP Gun Kit Components

OFFSHORE CASE


The kit comes in a custom built, durable, water-tight offshore case.


SPARES KIT


The standard spares kit contains 5 tips, 4 lens screws, 4 Allen screws (to remove lens), an Allen wrench, 2 9V batteries, 4 O-rings and 2 backup rings.

CONTACT TIPS


Each CP Gun kit comes with five extra replacement tips.

SPARE AG/AGCL


The CP Gun kit contains one spare Ag/AgCl reference electrode for replacement in the field.
