I-Rod® Adhesive™
High-strength adhesive for securing I-Rod® material to concrete and steel pipe supports
![I-Rod-adhesive-cartridgeKO.jpg](/media/3743/i-rod-adhesive-cartridgeko.jpg?width=628&height=419&mode=crop)
![I-Rod-Adhesive-Gun-Website.jpg](/media/3488/i-rod-adhesive-gun-website.jpg?width=628&height=419&mode=crop)
I-Rod® Adhesive™ provides a strong, permanent bond between I-Rod® strips and pipe supports
I-Rod® Adhesive™ is designed to securely anchor strips of I-Rod® in situations where drilling and bolting would be difficult. It’s a great solution for using I-Rod® on solid concrete supports that can’t be fitted with U-bolts, or for locations where drilling through metal is restricted or would require a hot work permit.

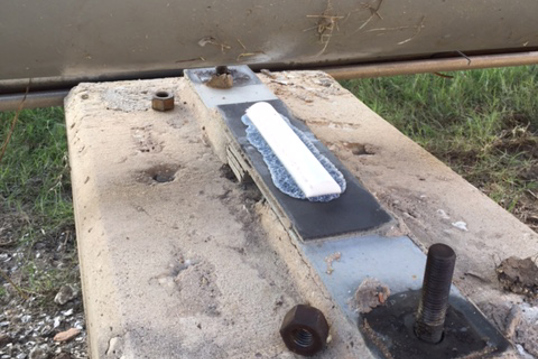

Adhesive features
![I-Rod_Adhesive_Installed.JPG](/media/5292/i-rod_adhesive_installed.jpg?width=538&height=359&mode=crop)
Drying time
Working time is around seven minutes at 22ºC, and full strength is achieved after 72 hours.
![I-Rod-adhesive-nozzlesKO.jpg](/media/3498/i-rod-adhesive-nozzlesko.jpg?width=538&height=359&mode=crop)

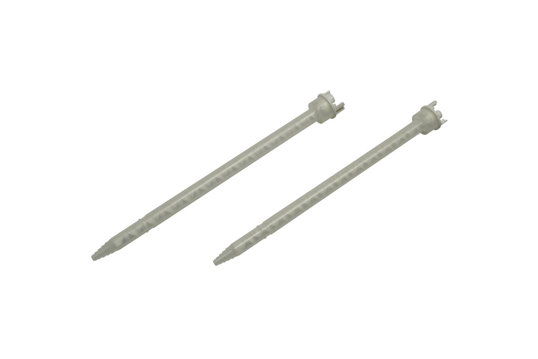

Nozzles

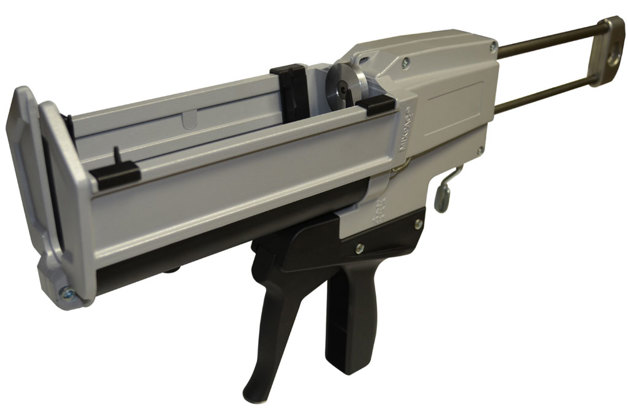

We also offer heavy-duty disposable nozzles for use with the required 1:1 mix ratio applicator gun.
![I-Rod-adhesive-cartridgeKO.jpg](/media/3743/i-rod-adhesive-cartridgeko.jpg?width=538&height=359&mode=crop)

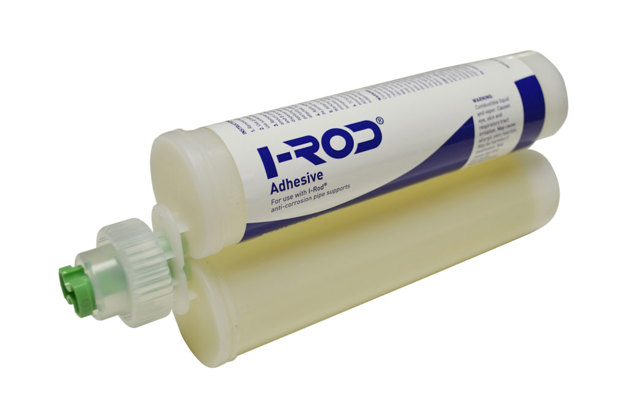

Cartridges
Each dual cartridge contains 13.5 fl. oz. (400 ml) of I-Rod® Adhesive™.
![I-Rod-adhesive8.jpg](/media/3827/i-rod-adhesive8.jpg?width=538&height=359&mode=crop)

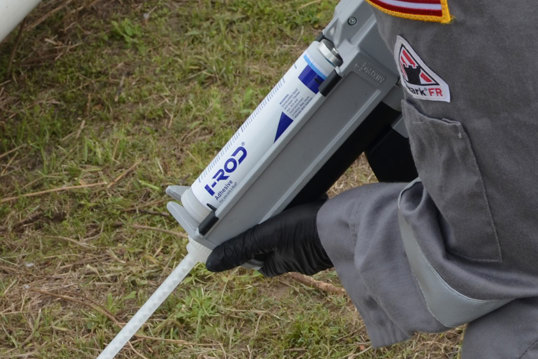

A strong bond
I-Rod® Adhesive™ provides an extremely strong bond between I-Rod’s tough thermoplastic material and the steel or concrete surfaces that support it.

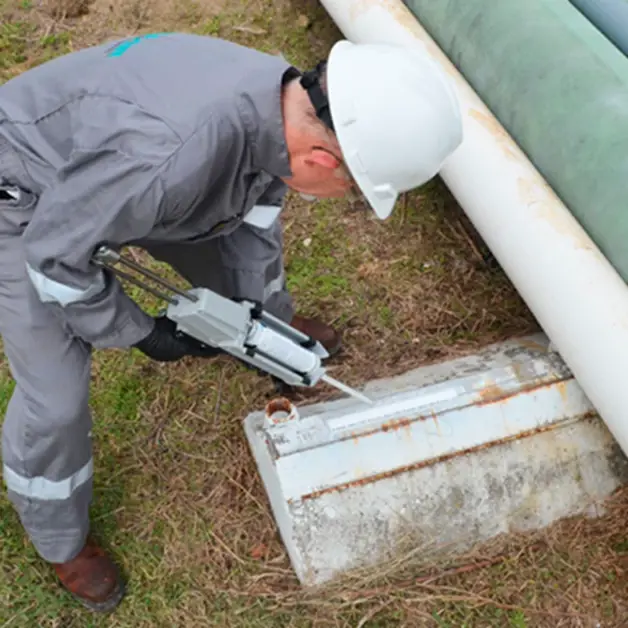

I-Rod® Adhesive™ application

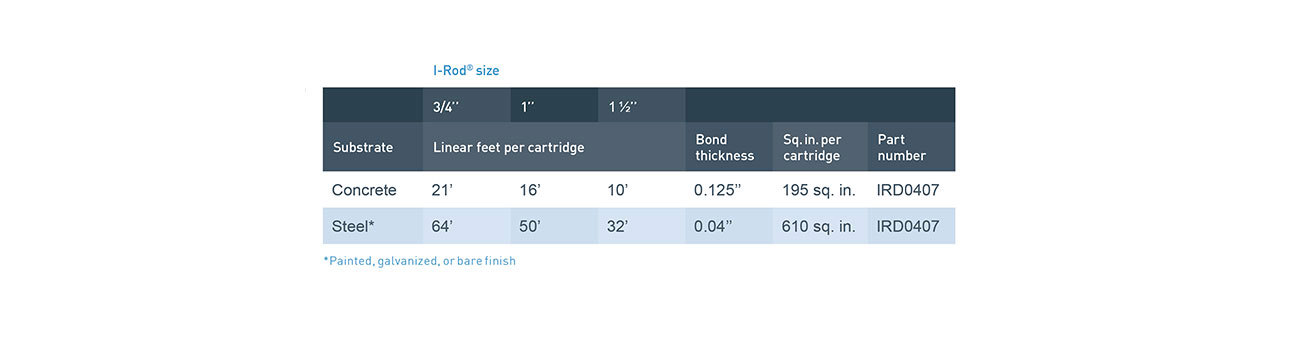

Cartridge coverage
![Cartridge-Coverage-WEB.jpg](/media/5293/cartridge-coverage-web.jpg?width=1296&height=0&mode=crop)
Download Nu-Bolt® 3-D CAD models
Download free CAD models of Nu-Bolt® assemblies for use in designing your next project. Hundreds of files in the most popular CAD formats are available.
![3D-CAD-files-WEB.jpg](/media/5356/3d-cad-files-web-copy.webp?width=628&height=471&mode=crop)

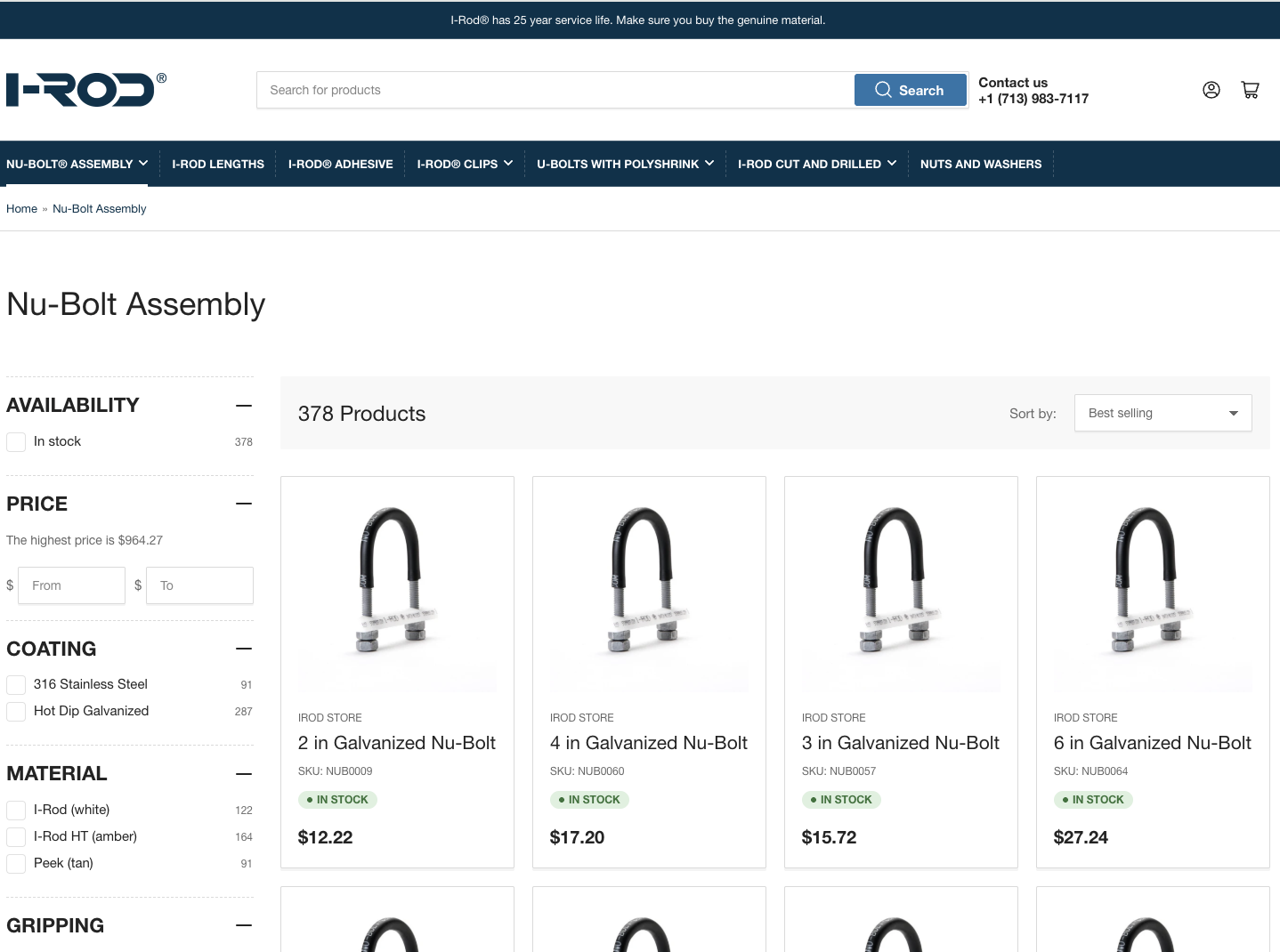

The I-Rod® online store is now open for business
The full line of I-Rod® products and accessories are now available at our new e-commerce site at I-Rod.com. All of our I-Rod® offerings, specs and downloads can be found in one place, along with convenient online ordering in the US and UK, with other regions coming soon.
![Buy I-Rod online](/media/5275/buyi-rodonlineinside.jpg?width=628&height=471&mode=crop)
I-Rod Adhesive Gallery
![14 P7260189-Quick Preset_1024x768.jpg](/media/1137/14-p7260189-quick-preset_1024x768.jpg?width=538&height=538&mode=crop)
Onshore large diameter pipe
This Nu-Bolt® was installed on a midstream pipeline near previous repair work caused by a support that didn't use Nu-Bolt®.
![I-Rod_Cover_KO2.jpg](/media/1799/i-rod_cover_ko2.jpg?width=538&height=538&mode=crop)

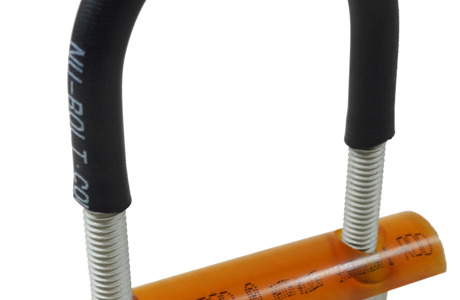

Nu-Bolt® and I-Rod®
