Polatrak® DC II™
Topside drop cell for cathodic-protection survey
![DCII_Voltmeter_KO_1296px.jpg](/media/5319/dcii_voltmeter_ko_1296px.jpg?width=1296&height=0&mode=crop)
![DCIITechOnDeck628pxWEB.jpg](/media/5318/dciitechondeck628pxweb.jpg?width=538&height=359&mode=crop)
![DCII_on_deck_628px_Web.jpg](/media/5317/dcii_on_deck_628px_web.jpg?width=538&height=359&mode=crop)
![cp readings.jpg](/media/1255/cp-readings.jpg?width=538&height=359&mode=crop)

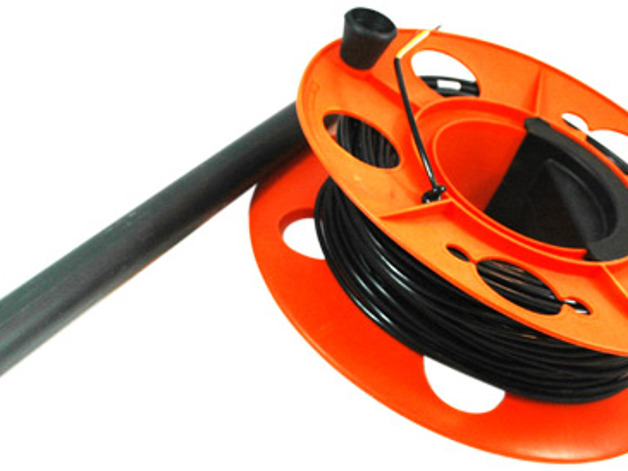

The Polatrak® DC II™ is the first and only twin-element portable reference electrode of its kind.

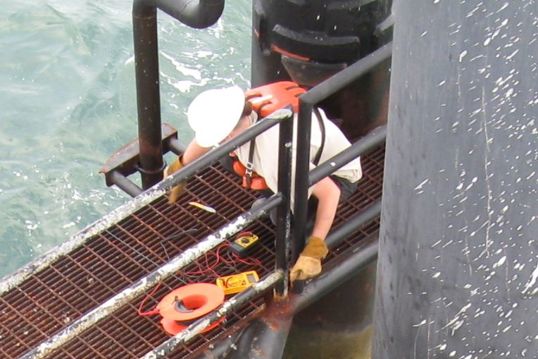

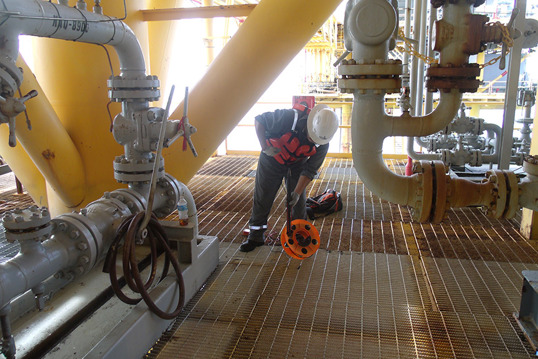

The DC II™ is used to survey more offshore structures worldwide than any other portable drop-cell-style cathodic protection probe, and has been specified by a large number of operators as the only acceptable choice of equipment. Twin elements provide on-board calibration, reducing the chances of topside survey inaccuracies.
![DCII_Big_KO.jpg](/media/1256/dcii_big_ko.jpg?width=628&height=471&mode=crop)
Features
![Ag-AgCI-elementKO_628.jpg](/media/5336/ag-agci-elementko_628.jpg?width=538&height=359&mode=crop)

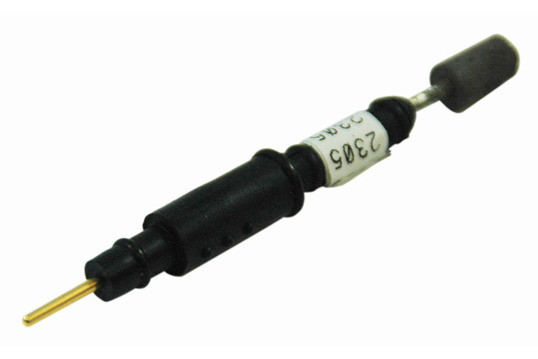

Guaranteed accuracy
Twin Ag/AgCl electrodes provide internal redundancy and on-line calibration, allowing the inspector to verify readings in real time. The DC II™ boasts guaranteed accuracy of +/- 5 mV.
![DC-II_KO_number628.jpg](/media/5332/dc-ii_ko_number628.jpg?width=538&height=359&mode=crop)

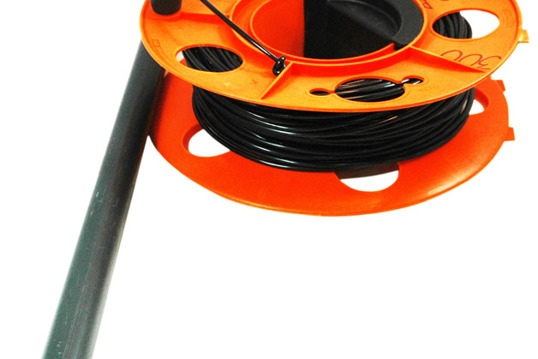

Rugged construction
The rugged thermoplastic housing and tapered cone prevents snagging, and the high-strength conductor cable is suitable for the harshest offshore environments.
![Voltmeter_KO-628.jpg](/media/5335/voltmeter_ko-628.jpg?width=538&height=359&mode=crop)

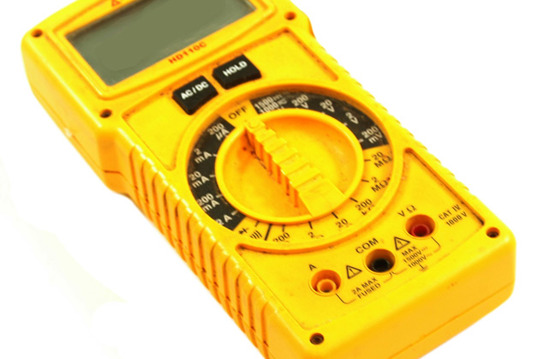

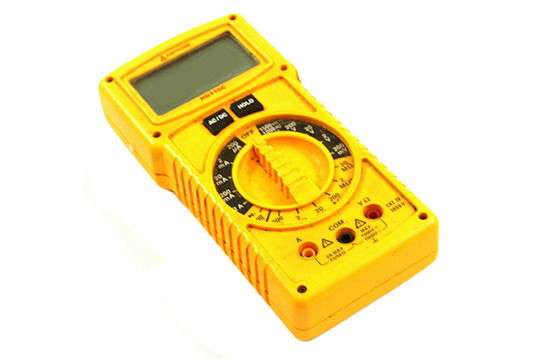

Voltmeter

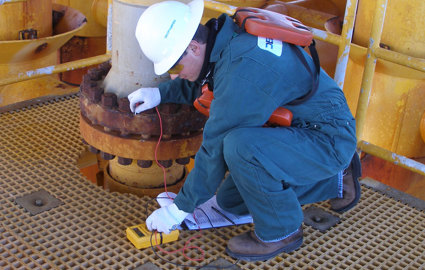

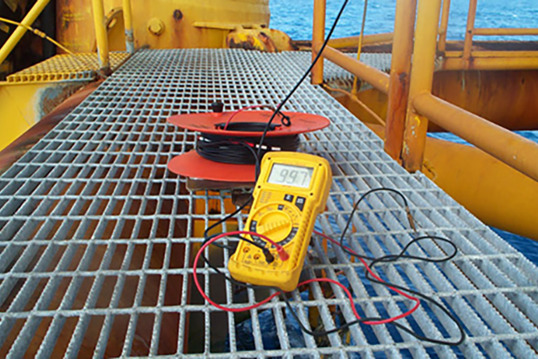

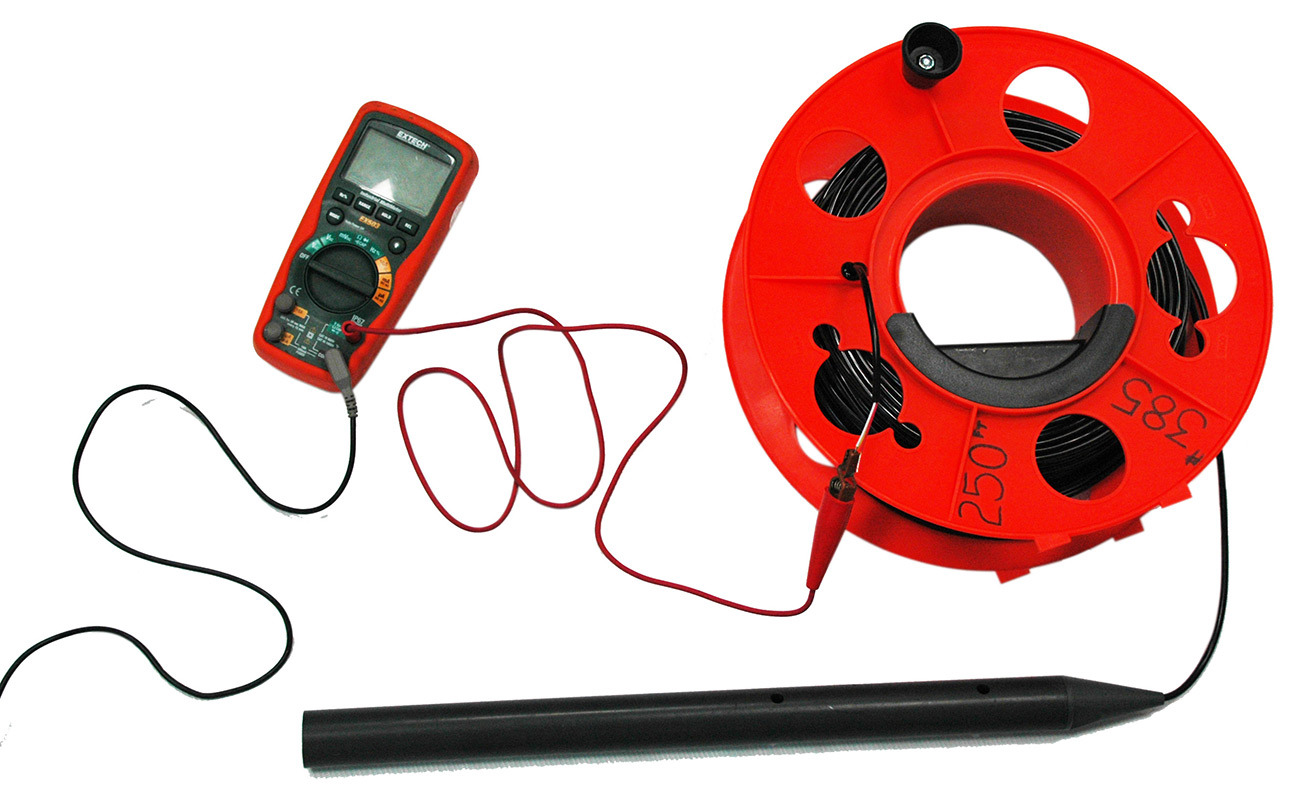

Cathodic protection readings can be recorded using a simple voltmeter (not included).
![DCII_Large_Reel_Knockout628.jpg](/media/5333/dcii_large_reel_knockout628.jpg?width=538&height=359&mode=crop)

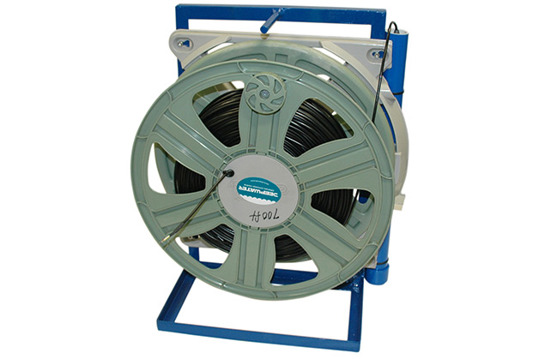

Depths up to 1,500 feet

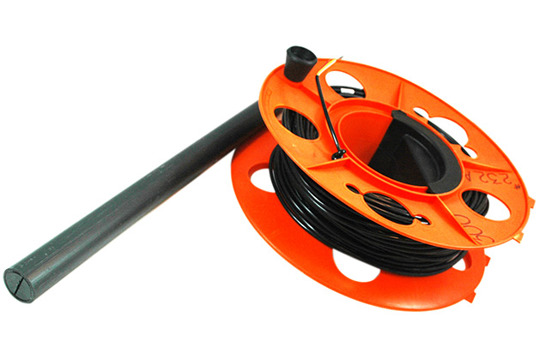

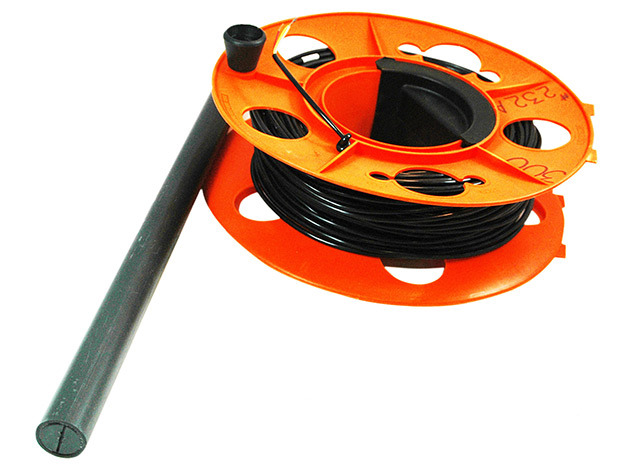

The DC II™ is available with extra-long cable (up to 1,500 feet) and a high-capacity cable reel. The standard model with 250 feet (75 m) of cable is shown with an orange reel.

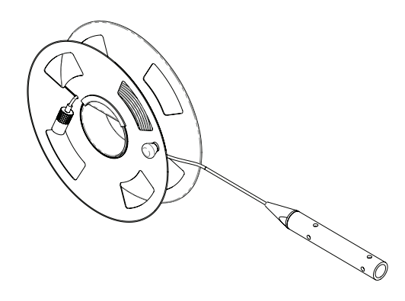

Specifications
![DC II.png](/media/6414/dc-ii.png?width=405&height=0&mode=crop)
Key Items
- Electrode elements:
- 2 X Ag/Agcl sealed
- Depth:
- 300M
- Method of Deployment
- Surface
- Reading type:
- Proximity
- Readout:
- Surface voltmeter
Technical Datasheet
![DC II Manual LTR.png](/media/4395/dciiss.gif?width=220)
Operation manual
