28 Year Study of I-Rod performance in the field

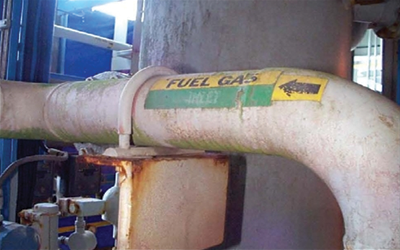

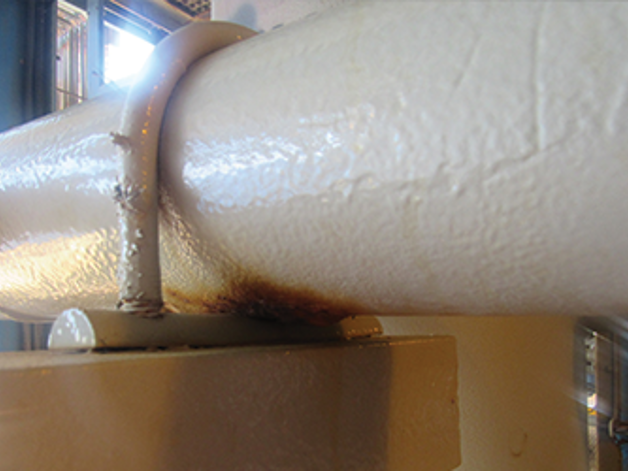

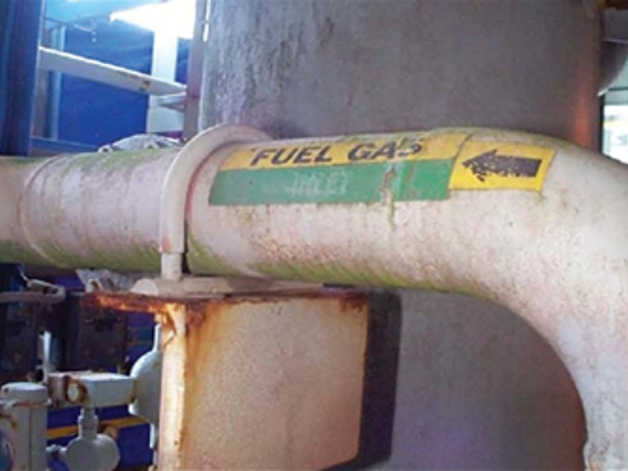

This fuel gas line is always wet (the green coloration is mold) and the beam paint system has failed, but no corrosion has occurred at the pipe support.

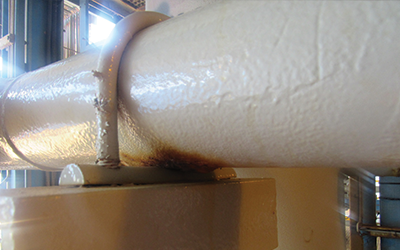

28 years after installation, the fuel gas line shows minor paint failure at the support but the I-Rod is still intact.

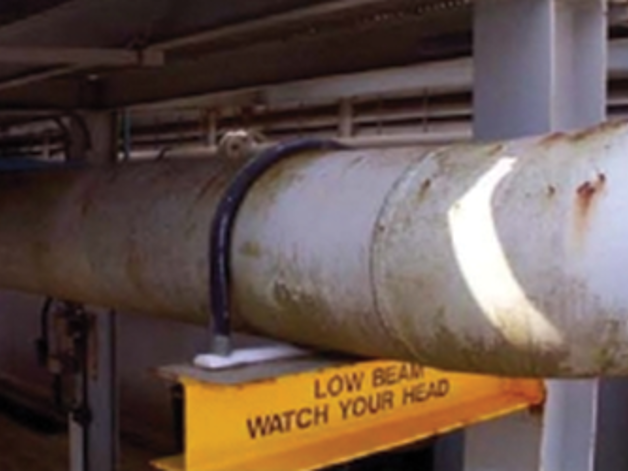

Another pipe that stays wet, as evidenced by the mold and mildew on its surface. At 13 years after installation, the support was performing well.

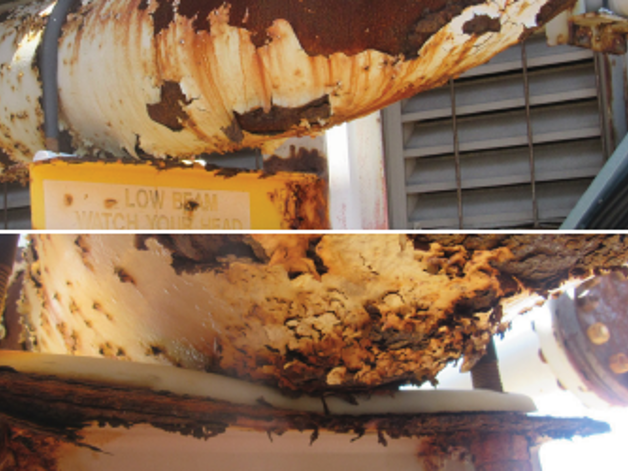

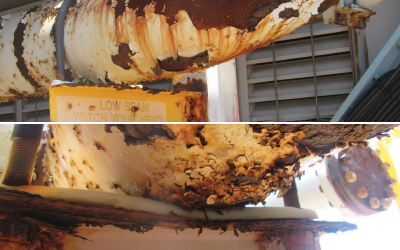

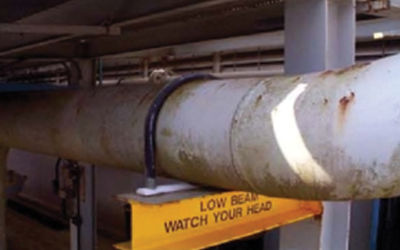

28 years after installation, the coating is almost completely disintegrated and I-Rod still successfully prevented crevice corrosion.

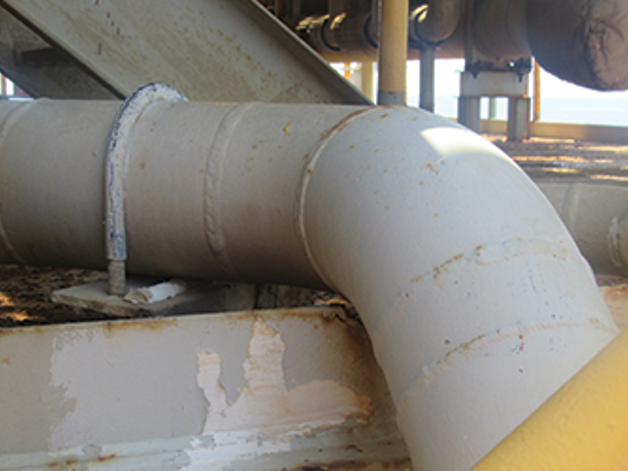

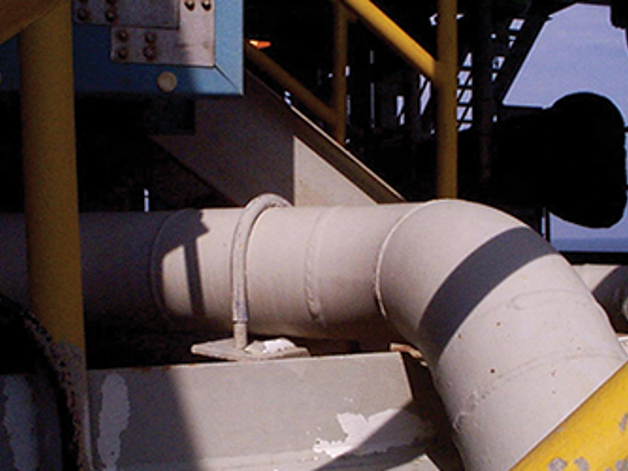

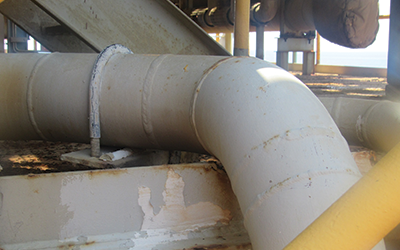

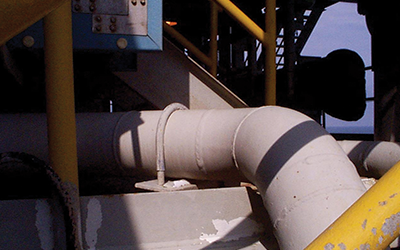

This support remains well-preserved despite being exposed to harsh offshore conditions.

The Nu-Bolt has received a few coats of paint over the decades but no new corrosion.

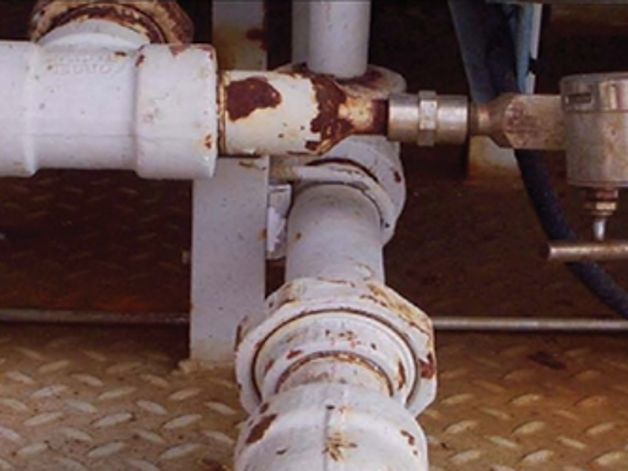

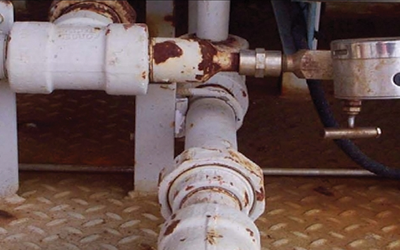

I-Rod is particularly effective on small-diameter screwed piping.

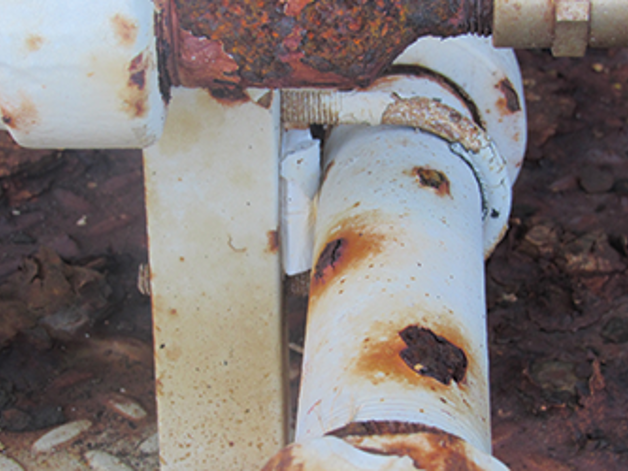

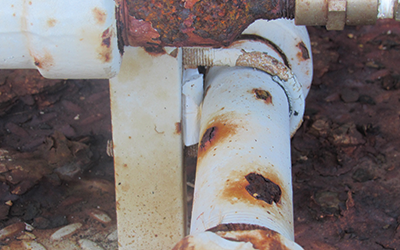

After 28 years the I-Rod shows no change long after the coating has failed.

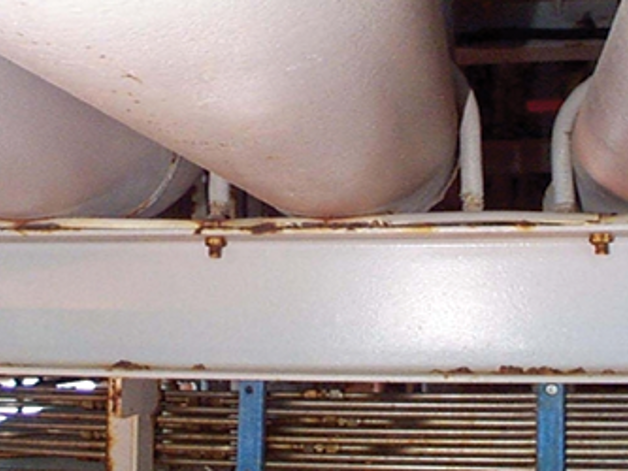

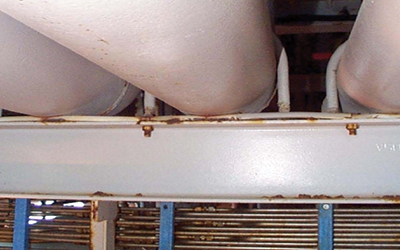

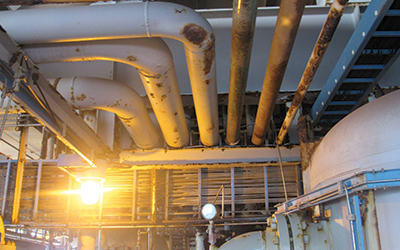

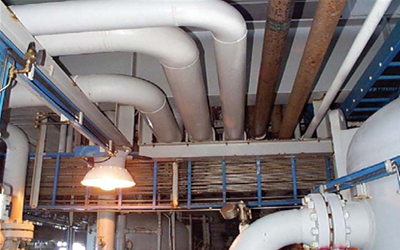

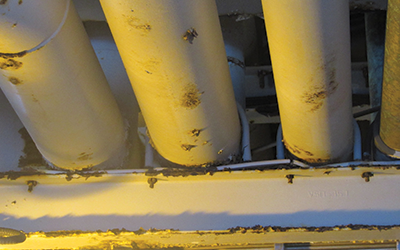

I-Rod was used to dress beams beneath multiple pipes. No corrosion at 13 years.

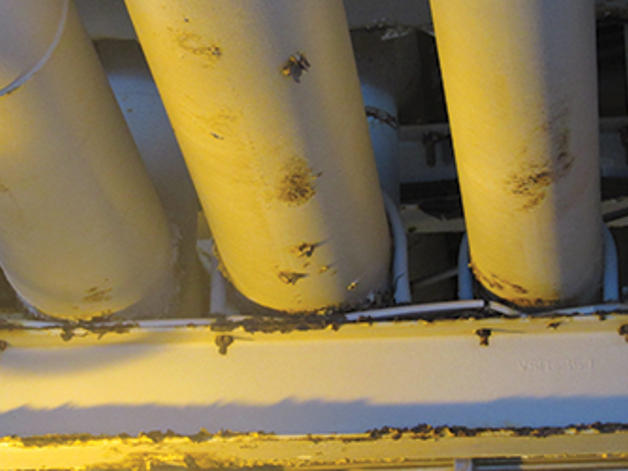

I-Rod supporting multiple pipes across a standard beam support.

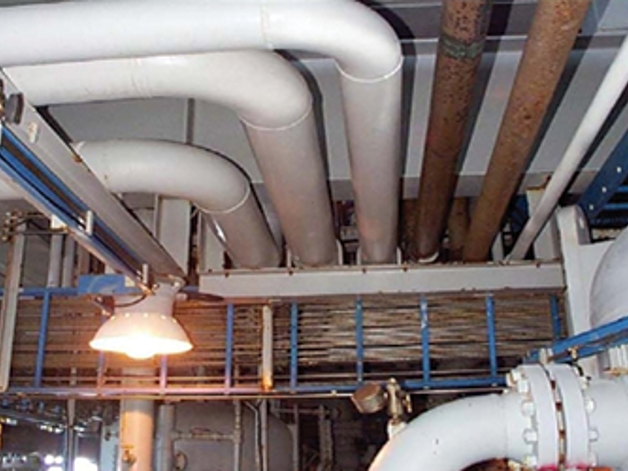

At 13 years, I-Rod is showing some signs of stress on the right pipe.

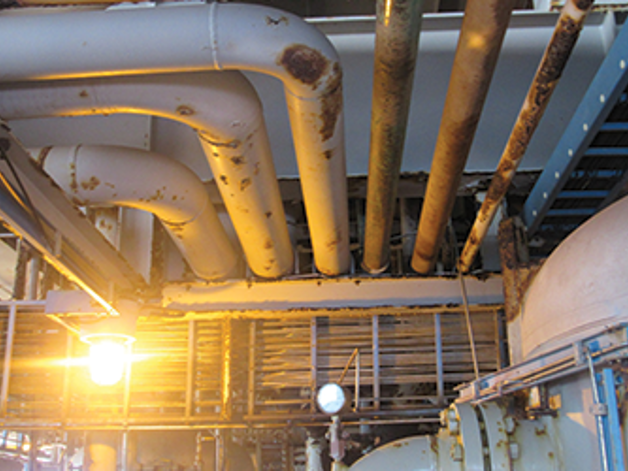

15 years after the photo to the left, the crack has not compromised the support or intensified corrosion.
