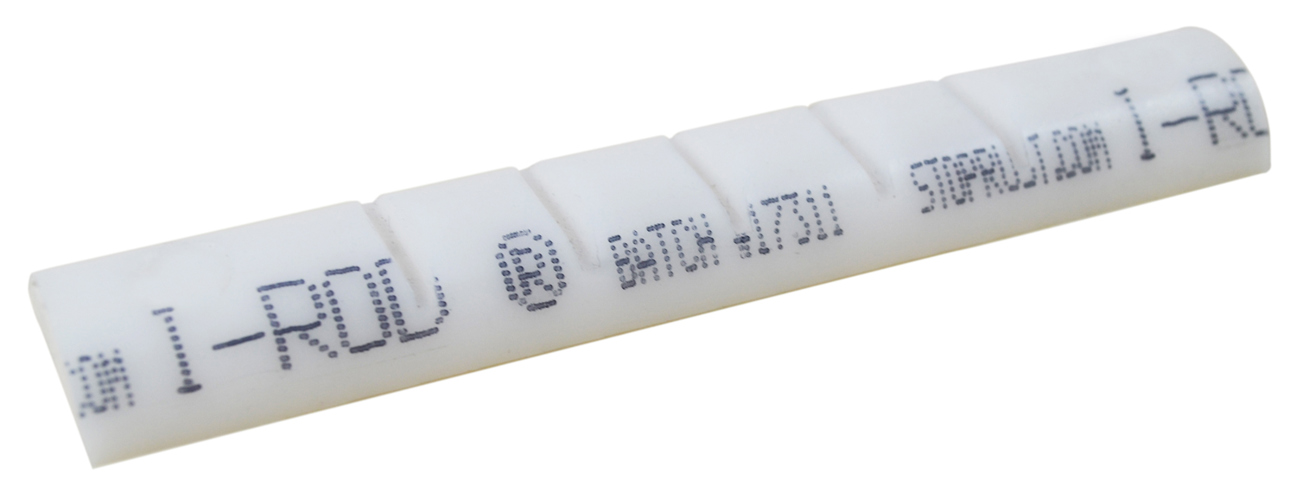

Notched I-Rod™
Prevents corrosion on pneumatic control tubing

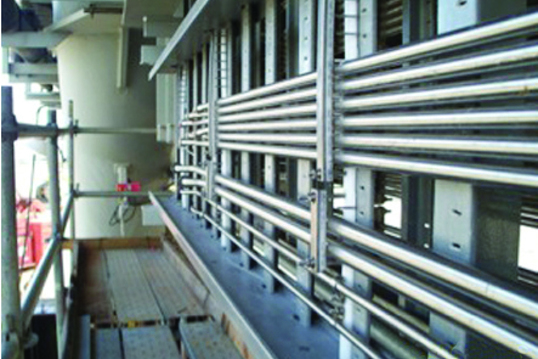

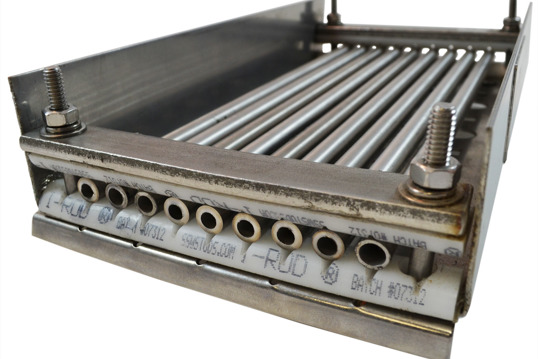

Notched I-Rod™ is available to prevent corrosion on stainless steel tubing
Tight crevices between tubing supports and clamps are another type of crevice corrosion that is difficult to avoid and must be addressed. Notched I-Rod™ has proved to be an excellent solution for preventing pitting and crevice corrosion on offshore stainless steel tubing installations. The I-Rod™ holds the tubing tight while ensuring that no moisture is trapped against the stainless steel surfaces.
Protect your stainless steel tubing

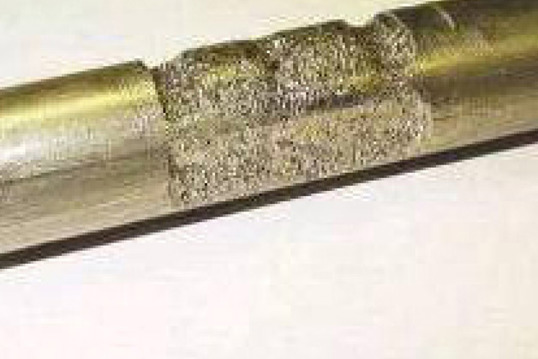

Corrosion damage
Significant corrosion damage on unprotected stainless steel tubing

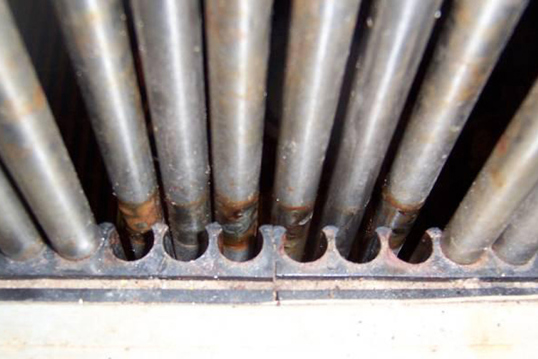

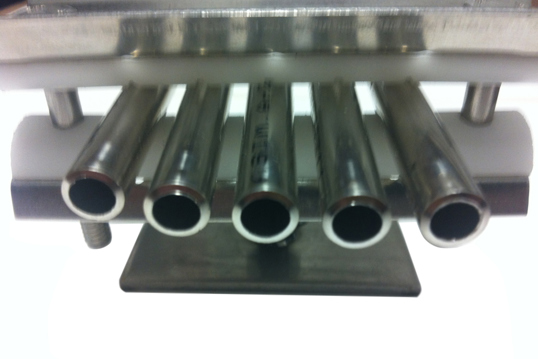

Trapped moisture
Damage caused by moisture trapped beneath stainless steel tubing

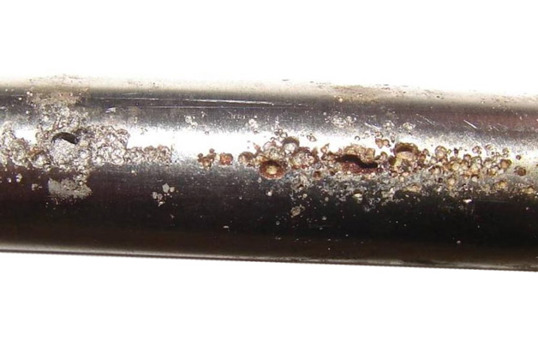

Close-up look
Crevice corrosion caused by trapped moisture
I-Rod® prevents corrosion at pipe supports

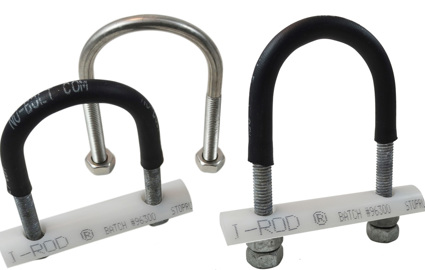

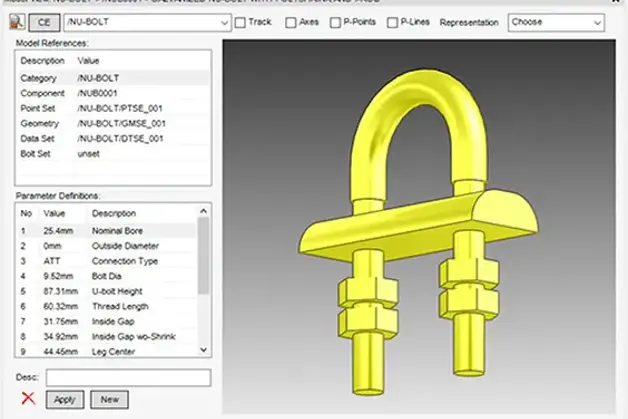

Download Nu-Bolt® 3-D CAD models
Download free CAD models of Nu-Bolt® assemblies for use in designing your next project. Hundreds of files in the most popular CAD formats are available.
The I-Rod® online store is now open for business
The full line of I-Rod® products and accessories are now available at our new e-commerce site at I-Rod.com. All of our I-Rod® offerings, specs and downloads can be found in one place, along with convenient online ordering in the US and UK, with other regions coming soon.

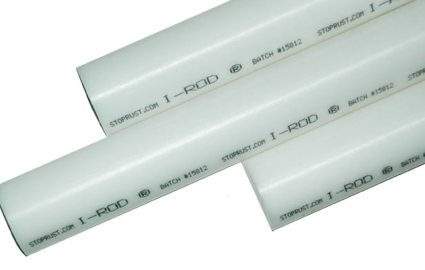

I-Rod specifications
| Material | I-Rod (White) | I-Rod HT (Amber) | PEEK (Tan) | ||||
|---|---|---|---|---|---|---|---|
| Property value | ASTM Test | Metric | Imperial | Metric | Imperial | Metric | Imperial |
| Density, 73º F (23º C) | D792 | 1.41 g/cm3 | 0.0509 lb/in3 | 1.28 g/cc | 0.0462 lb/in3 | 1.31 g/cm3 | 0.047 lb/in3 |
| Tensile strength, 73º F (23º C) | D638 | 64.8 MPa | 9,400 psi | 114 MPa | 16,500 psi | 110 MPa | 16 ksi |
| Tensile modulus of elasticity, 73º F (23ºC) |
D638 | 2.62 GPa | 380 ksi | 3.45 GPa | 500 ksi | 3.44 GPa | 500 ksi |
| Elongation (at break), 73º F (23ºC) |
D638 | 30-60% | 30-60% | 30-60% | 30-60% | 20% | 20% |
| Flexural modulus of elasticity, 73º F (23ºC) |
D790 | 2.76 GPa | 400 ksi | 3.45 GPa | 500 ksi | 6.89 GPa | 1000 ksi |
| Flexural strength, 73º F (23ºC) | D790 | 82.7 MPa | 13 ksi | 138 MPa | 20 ksi | 172 MPa | 25 ksi |
| Compressive strength, 10% def, 73º F (23ºC) |
D695 | 103 MPa | 15 ksi | 152 MPa | 22 ksi | 137 MPa | 20 ksi |
| Coefficient of friction (dry vs steel) | N/A QTM 55007 | 0.25 | 0.25 | 0.42 | 0.42 | 0.40 | 0.40 |
| IZOD Impact (notched), 73º F (23ºC) | D256 | .534 J/cm | 1 ft-lb/in of notch | .267 J/cm | 0.5 ft-lb/in of notch | .534 J/cm | 1.0 ft-lb/in of notch |
| Hardness, Rockwell, 73º F (23ºC) M/R |
D785 | 88/120 | 88/120 | 112/125 | 112/125 | 100/126 | M103 |
| Maximum service temperature | (Long Term) | 83 ºC | 181ºF | 171º C | 340º F | 249 ºC | 480 ºF |
| Deformation under load | D621 | 1.0% | 1.0% | - | - | - | - |
| Melting point | D3418 | 168º C | 329º F | 210º C | 410º F | 340 º C | 644 º F |
| Coefficient of linear expansion | E831 | 97.2 µm/m/ºC | 54 µin/in/ºF | 55.8 µm/m/ºC | 31 µin/in/ºF | - | - |
| Heat deflection temperature, 264 psi |
D648 | 104 ºC | 220ºF | 204 ºC | 400ºF | 160 ºC | 320 ºF |
| Flammability rating | VL94 | HB | HB | V-0 | V-0 | V--0 | V--0 |
| Dielectric strength, short term | D149 | 16.5 kV/mm | 420 V/mil | 32.7 kV/mm | 830 V/mil | 18.9 kV/mm | |
