Timber Sled

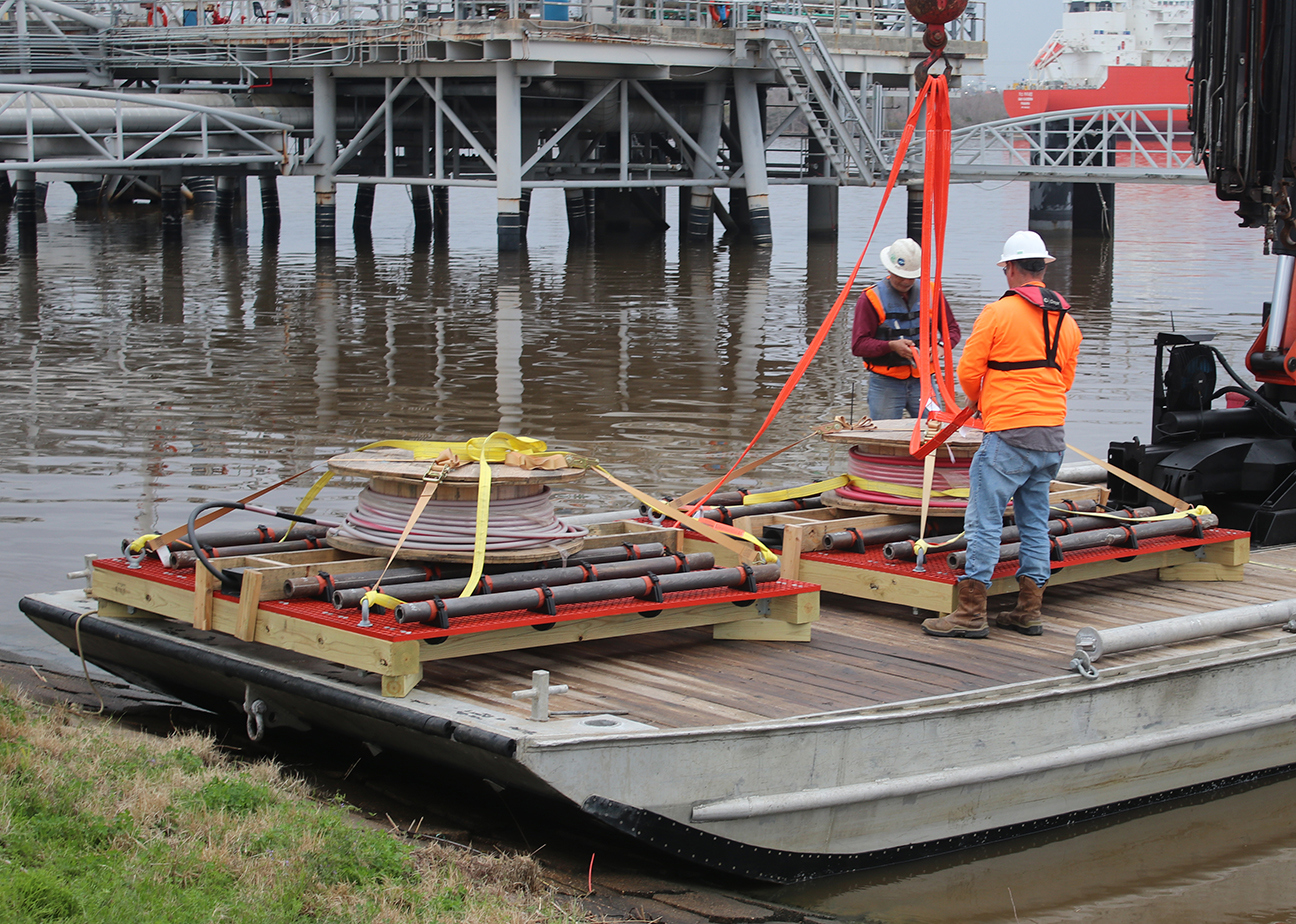

Timber Sled Top Photo WEB

Low-cost protection for docks and jetties

The Timbersled is an extremely cost-effective ICCP sled for use in fresh or brackish water primarily to protect docks and jetties. The timber frame offers a 20-year design life and provides a less-costly alternative to steel-framed sleds.

The lightweight Timbersleds can be deployed quickly from small boats without requiring divers, so costs, installation time and disruptions to dock traffic are minimized. The ultra-low profile is designed for very shallow near-or-inshore water applications and provides protection even when buried.

Key design points

  • Suitable for any seabed type
  • Designed for use in fresh or brackish water
  • Timber frame costs less to manufacture
  • Weighs less for easier shipping and installation
  • 20-year design life
  • Low profile (300 millimeters)
  • Additional ballast can be added for extra stability
  • Buoyant topside markers can be installed if dredging is expected

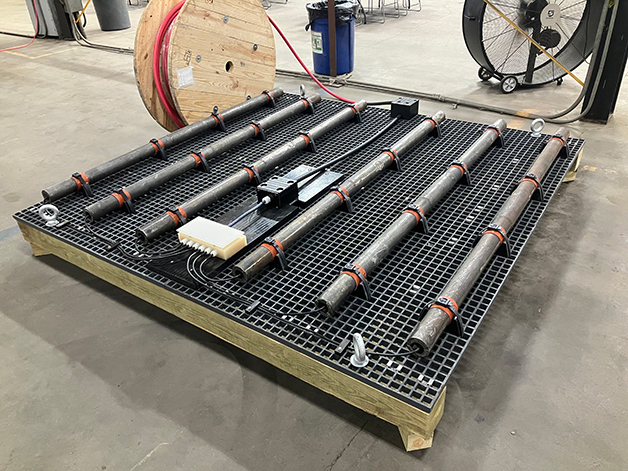

Timber Sled Design Points WEB

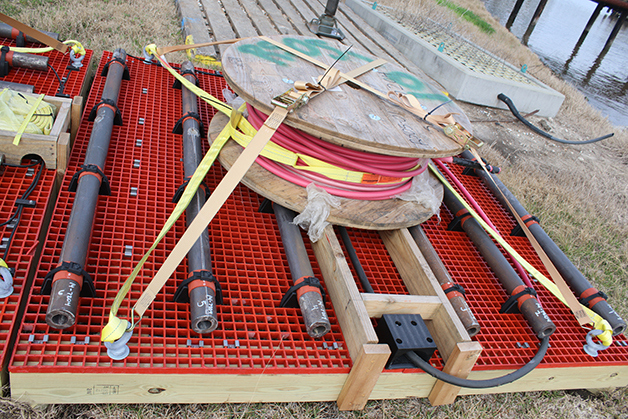

Timber Sled Photo 1

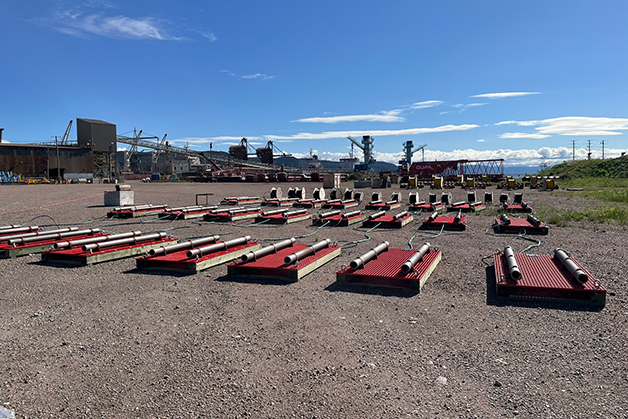

Timber Sled Photo 6

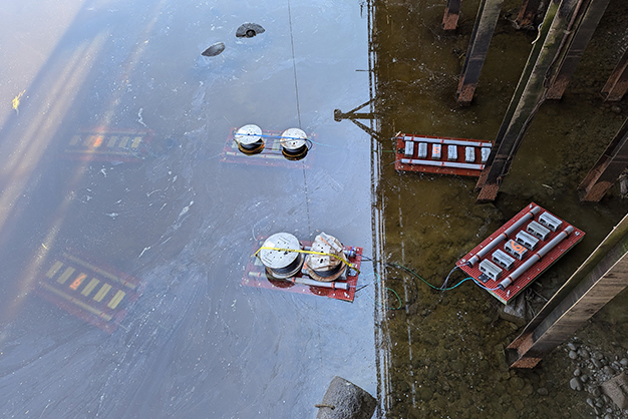

Timber Sled Photo 7

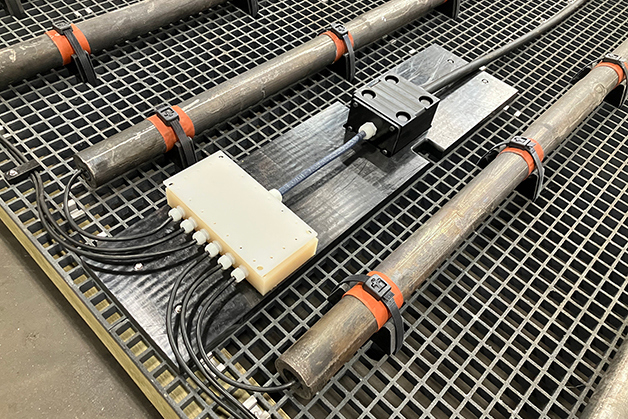

Timber Sled Photo 5

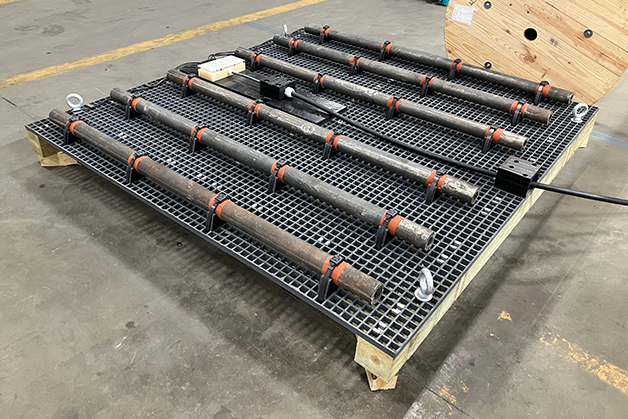

Timber Sled Photo 4

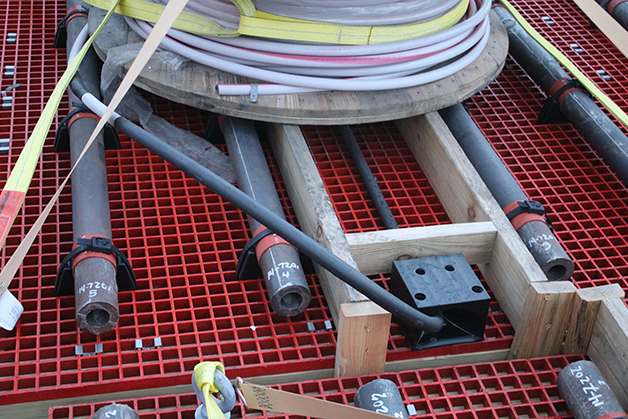

Timber Sled Photo 2
