V-String monitoring on marine fueling dock
Açu Maritime Fuel Terminal - TECMA north of Rio de Janeiro State
![Dock Wide](/media/5848/prb6007-dock-wide.webp?width=1296&height=0&mode=crop)
CP monitoring installed on marine fueling dock
Deepwater Do Brasil Serviços de Corrosão Ltda. retrofit the ICCP system and installed a CP monitoring system on the Porto do Açu Maritime Fuel Terminal – TECMA on December 27, 2020.

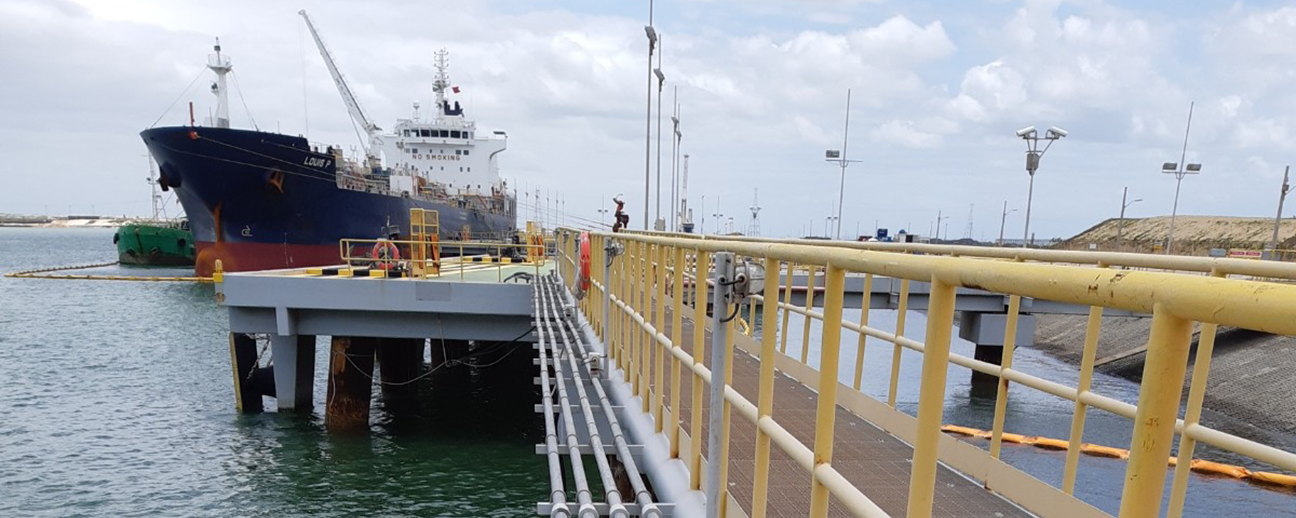

The dock is used for marine fueling and has two berths: Berth 1, which measures 185m X 32m, and Berth 2, which measures 110m X 21m. It’s operated by NFX Combustíveis Marítimos Ltda.

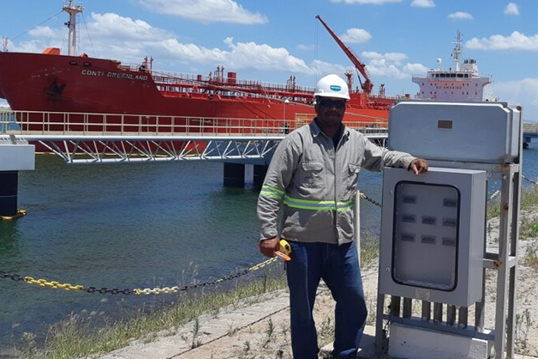

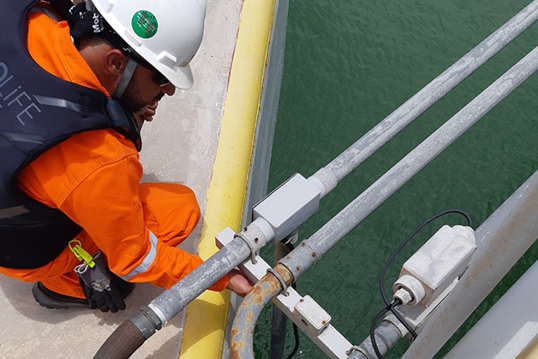

The installed system included sixteen V-String™ submerged reference electrodes (eight on each berth) that were placed on selected piles. Cables from the electrodes were attached to a topside monitoring panel.

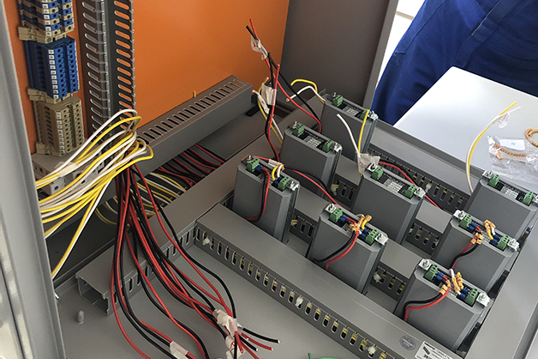

A drop-cell probe was used in cradle 2 and DAMs 3, 4 and 5 during commissioning to verify readings from the reference electrodes at the monitoring panel.
