Proximity probe
General-purpose proximity electrode

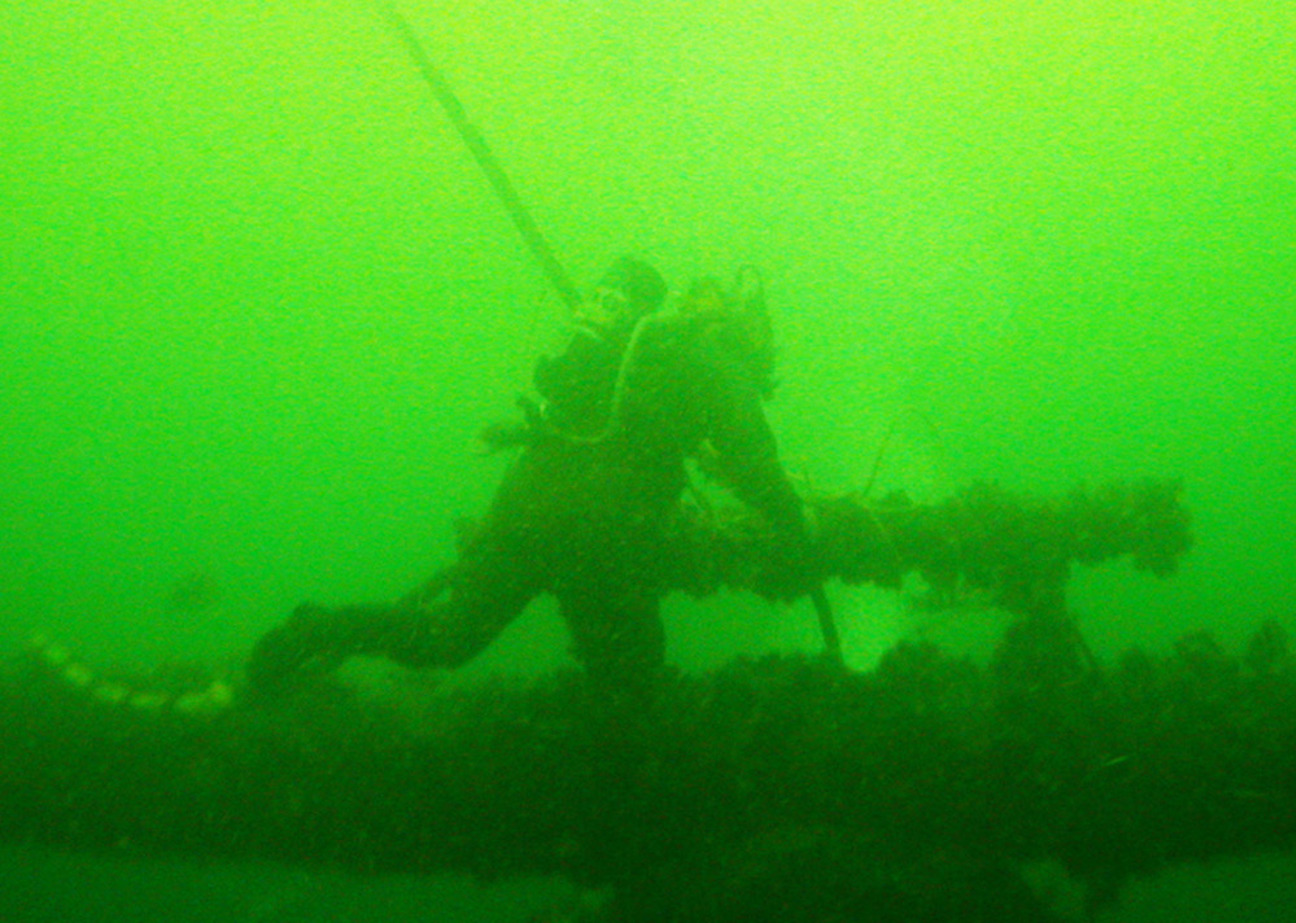

The general-proximity electrode can attach to a diver's belt to provide potentials while he or she works. It can also be used on a mini-ROV.

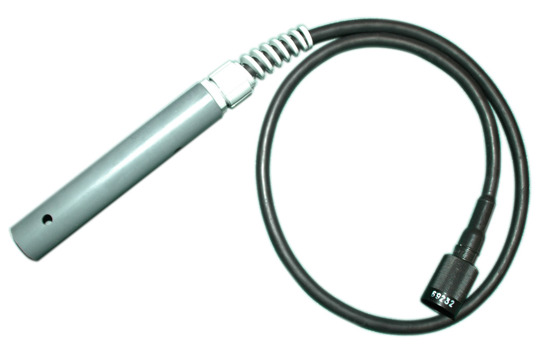

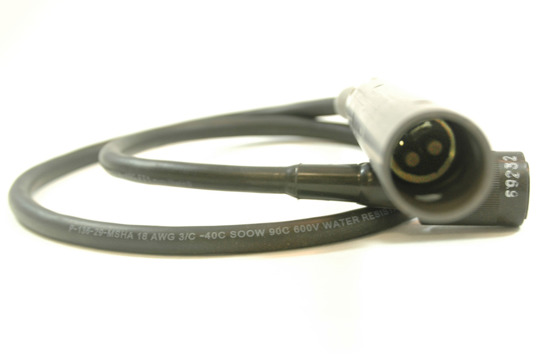

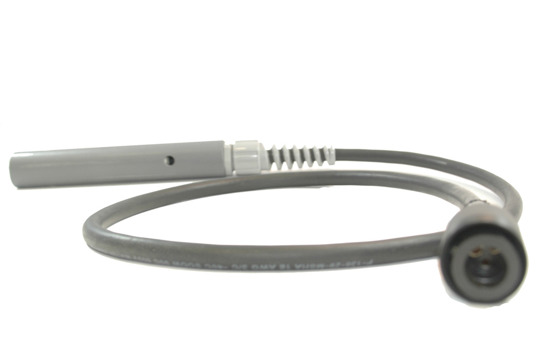

The Polatrak proximity probe is designed primarily for diver use when conducting subsea platform services. Like all Polatrak probes, it has twin Ag/AgCl elements to allow on-line calibration. The standard seacon RM-3 connector allows it to be rapidly plugged into the diver’s inspection umbilical.
This is a proximity probe for use with a topside ground and can be interfaced to small eyeball-type ROVs for operation in the proximity survey mode. A mating umbilical cable is available if required.
Proximity Probe specifications
| Electrode elements | Deployment | Readout | Depth | Probe type |
|---|---|---|---|---|
| 2 x Ag/AgCl sealed | Diver, Mini-ROV | Voltmeter, Deep C Meter | 300m | Proximity |
