PET™ Pipeline Excavation Tool
Pipeline excavation tool for shallow underwater buried pipelines

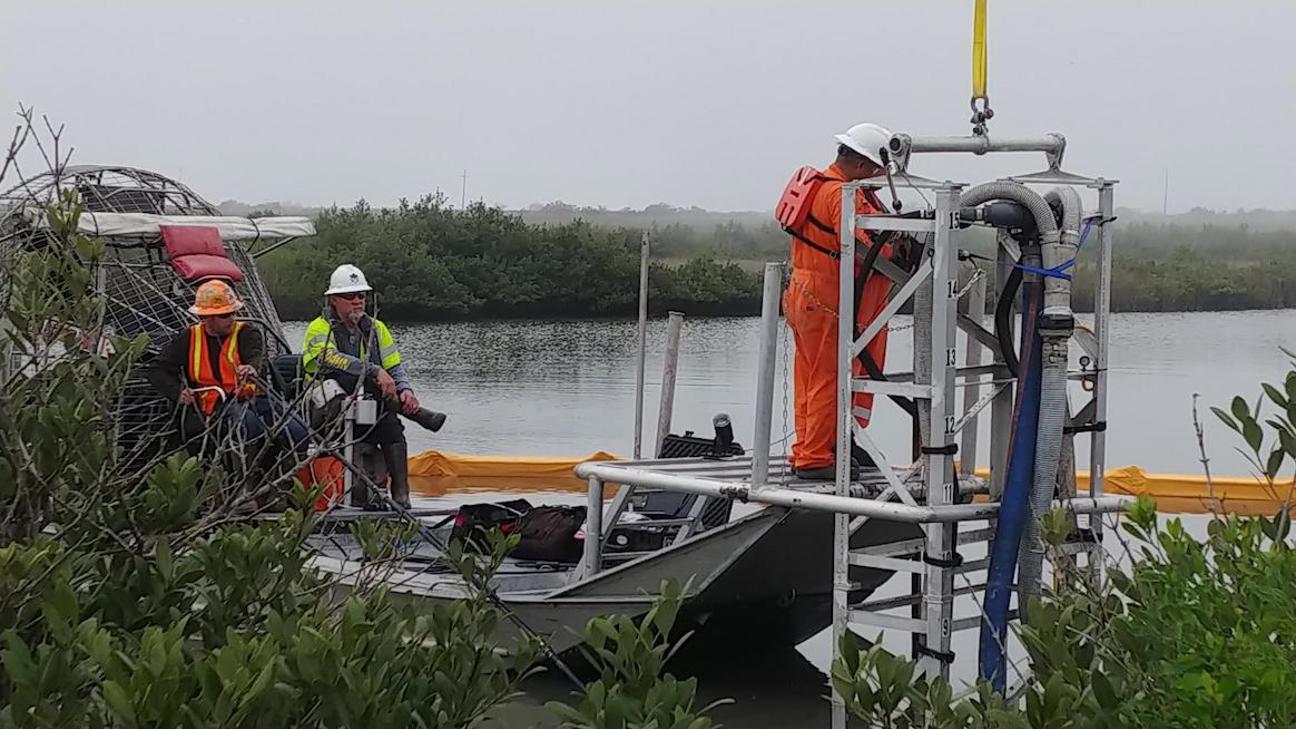

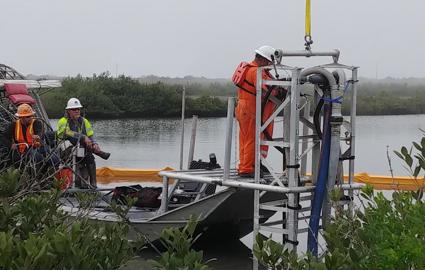

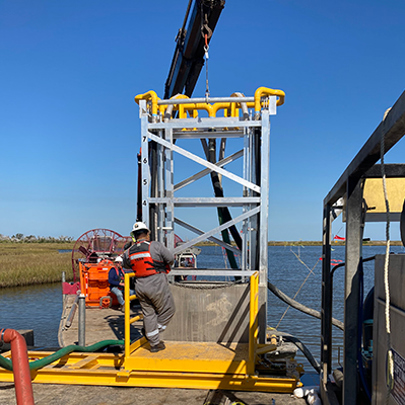

![PET excavating from airboat.jpeg](/media/4907/pet-excavating-from-airboat.jpeg?center=0.67206477732793524,0.43884892086330934&width=1296&height=0&mode=crop)
Quick, diverless excavation
The PET™ was developed to quickly excavate buried underwater pipeline to attach monitoring test leads or additional anode sleds. In shallow water, buried swamp and river crossings, the PET™ can excavate up to 12 feet underground in less than an hour. The tool eliminates the need for traditional excavators and dive crews, reducing the cost of a single keyhole excavation by up to 70% over traditional methods. Using the PET™, Deepwater can install multiple clamps with test leads on nearby pipelines in a single day.
(patent pending)

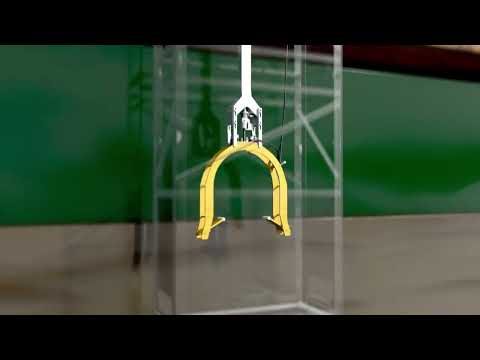

Video: Introducing the PET™

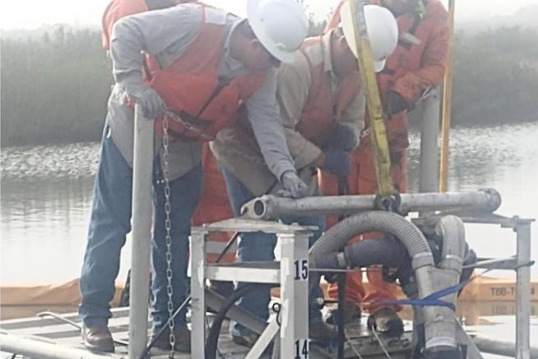

![PET fully excavated.jpeg](/media/4910/pet-fully-excavated.jpeg?center=0.60355029585798814,0.28&width=538&height=359&mode=crop)

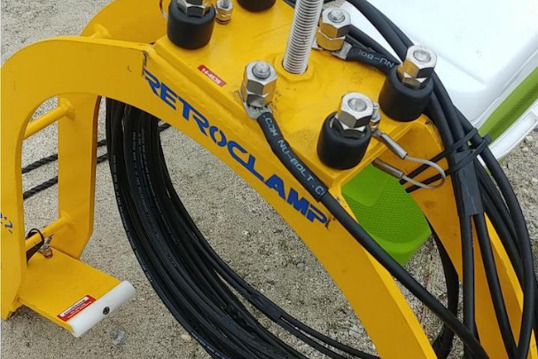

![PET RetroClamp.jpeg](/media/4912/pet-retroclamp.jpeg?center=0.49704142011834318,0.42&width=538&height=359&mode=crop)
![PET derigging.jpeg](/media/4914/pet-derigging.jpeg?center=0.52662721893491127,0.47333333333333333&width=538&height=359&mode=crop)

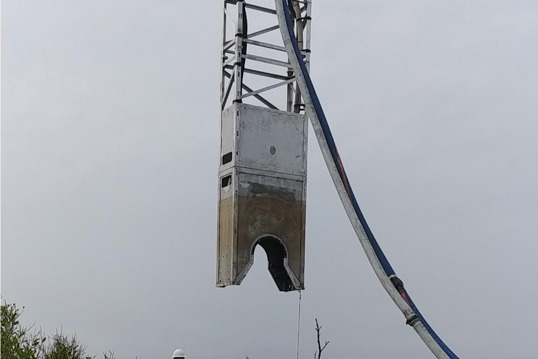

![PET on crane crop.jpeg](/media/4917/pet-on-crane-crop.jpeg?width=538&height=359&mode=crop)
Video: Developing the P.E.T.

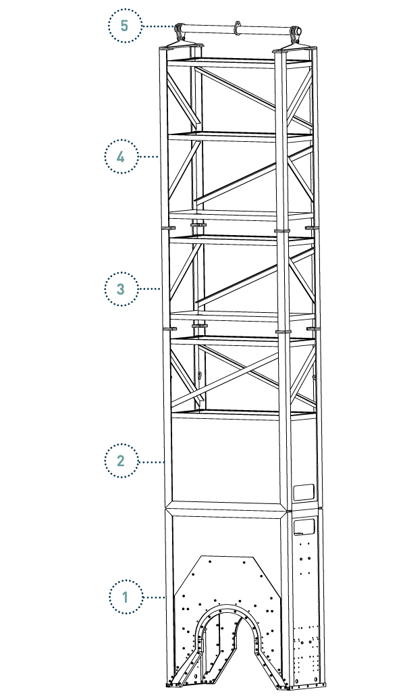

PET Specifications
![PET iso drawing.png](/media/4923/screen-shot-2020-05-03-at-115623-am.png?center=0.55172413793103448,0.43&width=405&height=0&mode=crop)
Key Items
- Bottom Section (Item 1)
- Dimensions (WxDxH) 1875 x 1320 x 610mm (74 x 52 x 24 in.)
Gross Weight 200 kg (440 lb.) - Upper Section (Item 2)
- Dimensions (WxDxH) 1855 x 1320 x 610mm (73 x 52 x 24 in.)
Gross Weight 100 kg (220 lb.) - Top Section (Item 3)Deployment
- Dimensions (WxDxH) 1855 x 1320 x 610mm (73x52x24 in.)
Gross Weight 40 kg (88 lb.) - Half Section (Item 4)
- Dimensions (WxDxH) 1040 x 1320 x 610mm (41 x 52 x 24 in.)
Gross Weight 24 kg (53 lb.) - Spreader Bar (Item 5)
- Dimensions (WxDxH) 280 x 1320 x 610mm (11 x 52 x24 in.)
Gross Weight 11 kg (25 lb.)

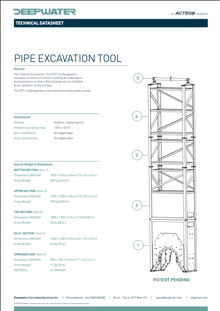

Technical Datasheet
![PET Techdata.png](/media/4921/pet-techdata.png?width=220)
