RetroClamp™ Beam Clamp
![Top photo](/media/6416/beam_clamp_top_photo_web.jpg?width=1296&height=0&mode=crop)
RetroClamp™ for beams

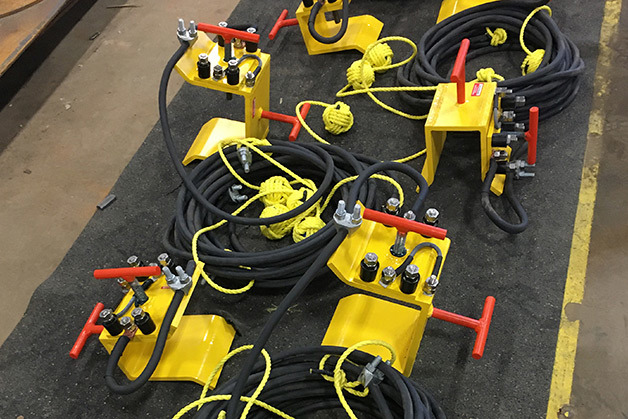

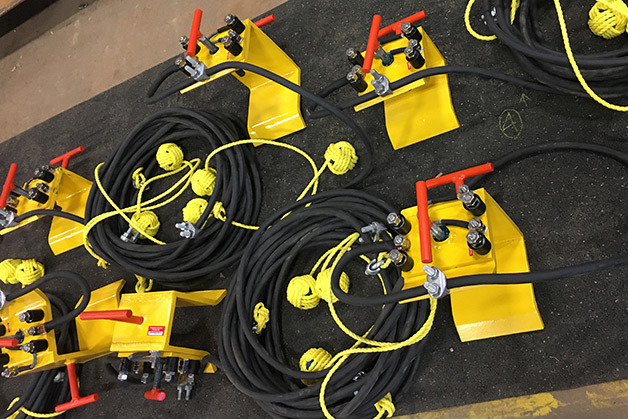

Our original RetroClamp™ is designed for attachment on subsea tubular members, but we also offer the RetroClamp-Beam™ for attachment to other common structural steel shapes, such as square hollow section, I-Beam, beam flanges and plate edges. The contact screw normally grabs the edge of a flange or plate.

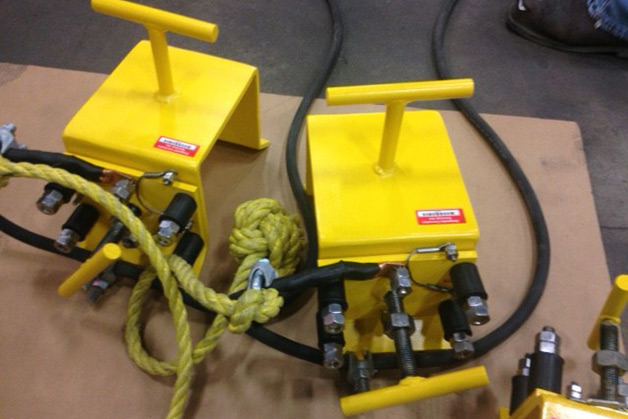

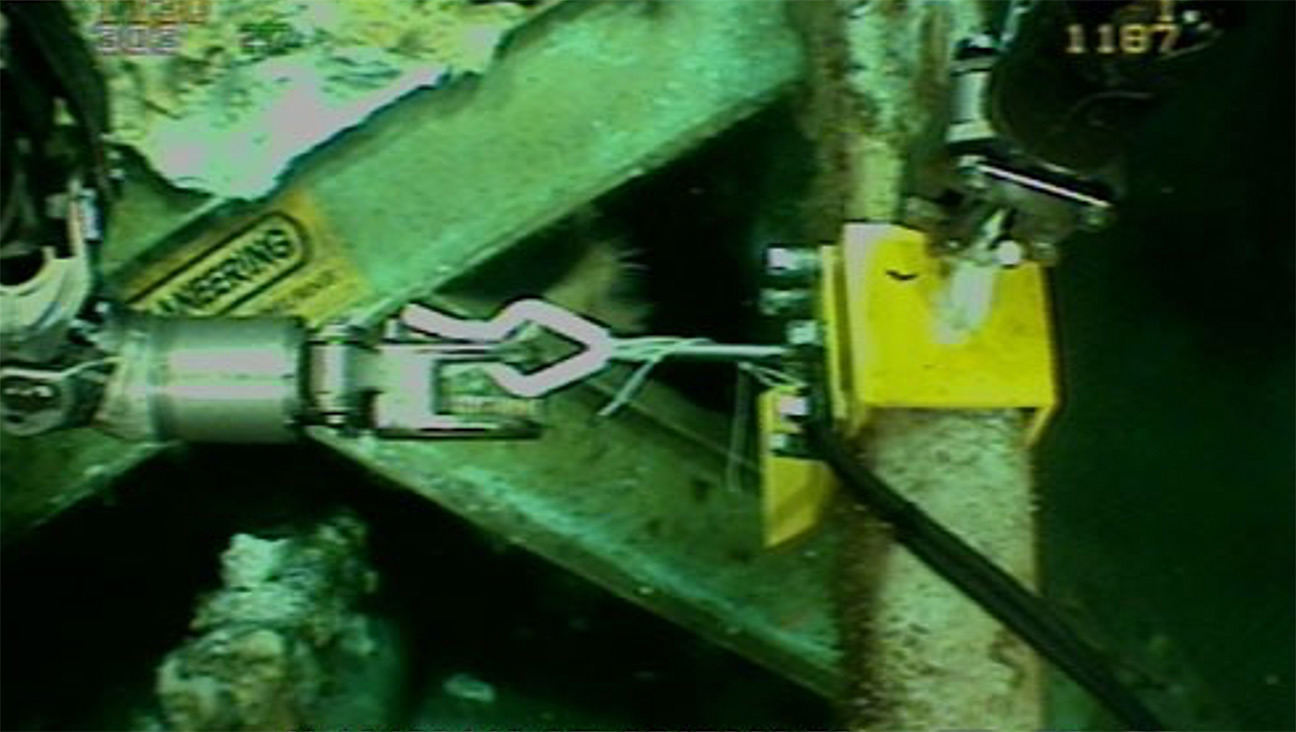

The RetroClamp-Beam™ can be configured to optimally fit the specific needs of each placement. A widely-used RetroClamp-Beam™ sits over the top of the beam and uses a longer, vertical contact screw, and another version of the same clamp uses a contact screw in a horizontal orientation, contacting the web instead of a vertical orientation contacting the flange. Clamps are available to fit the widths of any members.
They also feature the field-proven floating-plate function of the original tubular RetroClamp™, a constant tension mechanism that ensures electrical continuity of the contact screw. Other manufacturer’s clamps offered without this feature can fail relatively quickly.

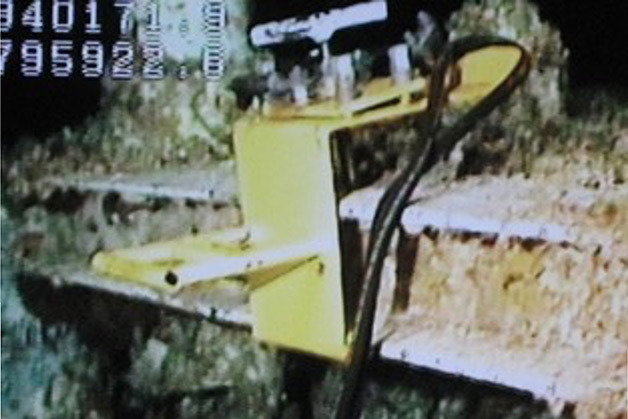

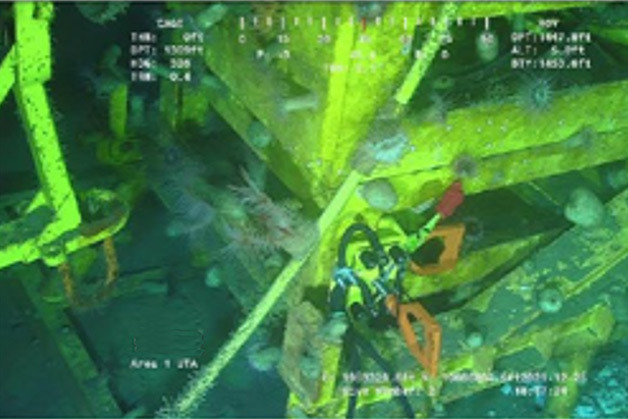

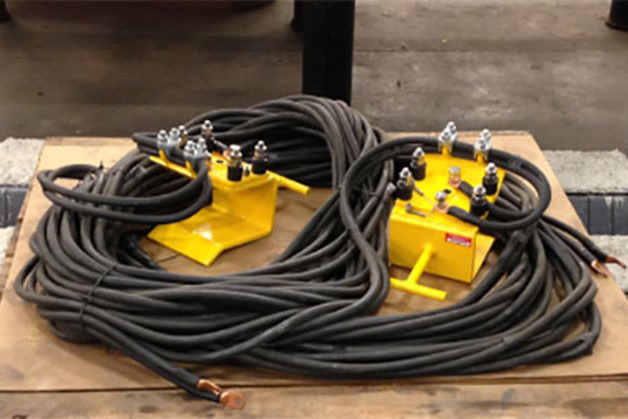

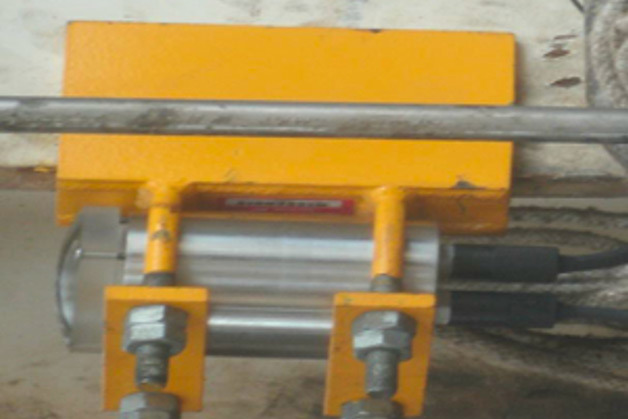

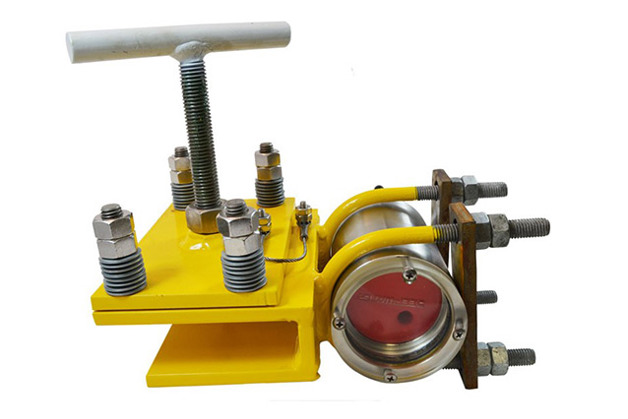

RetroClamp-Beam™ is primarily used to electrically connect anode sleds to subsea equipment, but it’s also used with our ReCap™ data-logger system that’s deployed for up to four years before the clamp is detached and the logger is retrieved.
![Photo 2](/media/6418/beamclamps2_web.jpg?width=628&height=419&mode=crop)
![Photo 5](/media/6421/beamclamps5_web.jpg?width=628&height=419&mode=crop)
![Photo 6](/media/6422/beamclamps6_web.jpg?width=628&height=419&mode=crop)
![Photo 1](/media/6417/beamclamps_web.jpg?width=628&height=419&mode=crop)
![Photo 8](/media/6426/beamclamp_installed_web.jpg?width=628&height=419&mode=crop)
![Recap_638x450.jpg](/media/5436/recap_638x450.jpg?width=628&height=419&mode=crop)
![ReCap1](/media/6423/recap1_web.jpg?width=628&height=419&mode=crop)
![Photo 7](/media/6424/beam-clamp-web.jpg?width=628&height=419&mode=crop)
