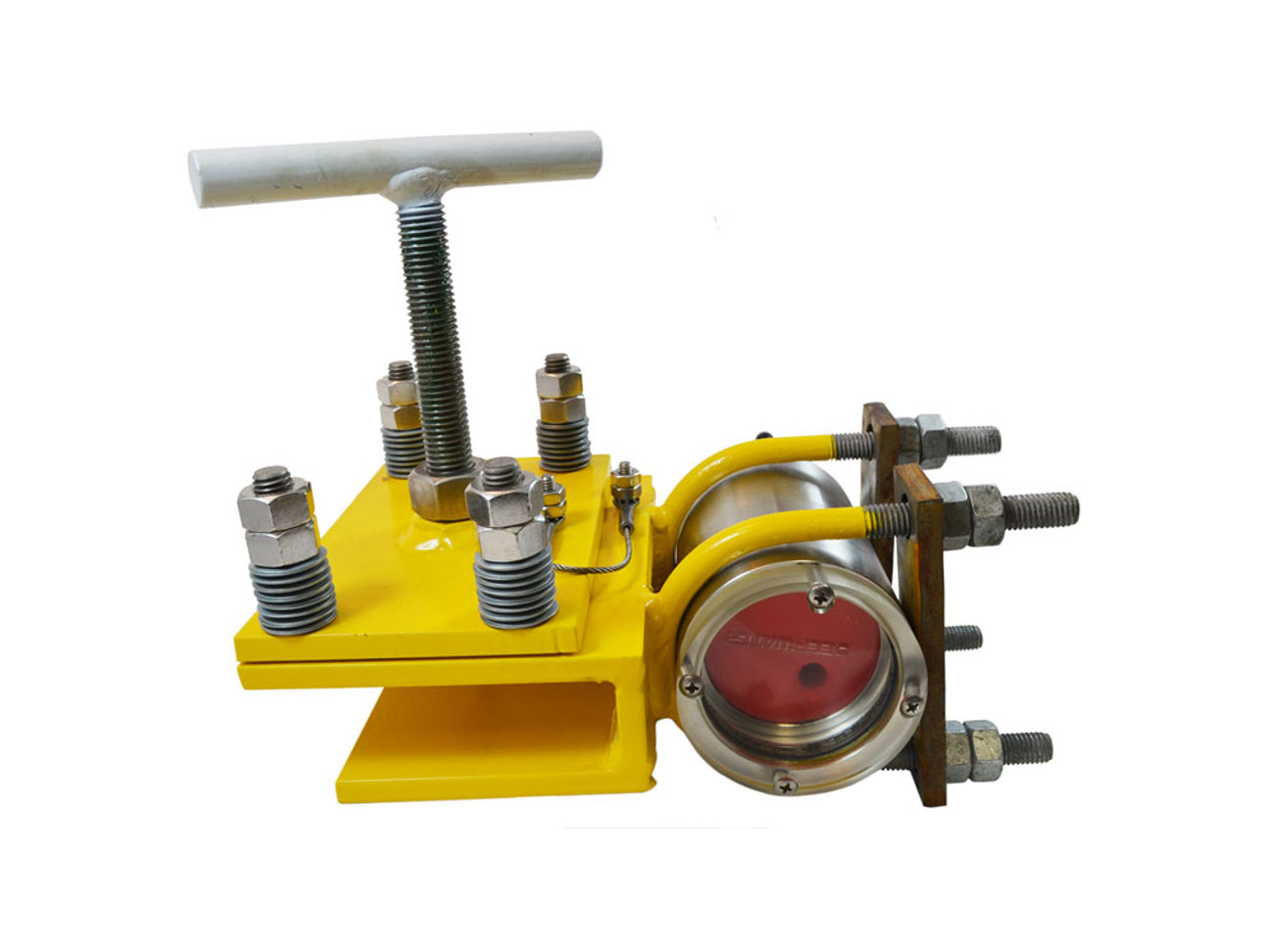

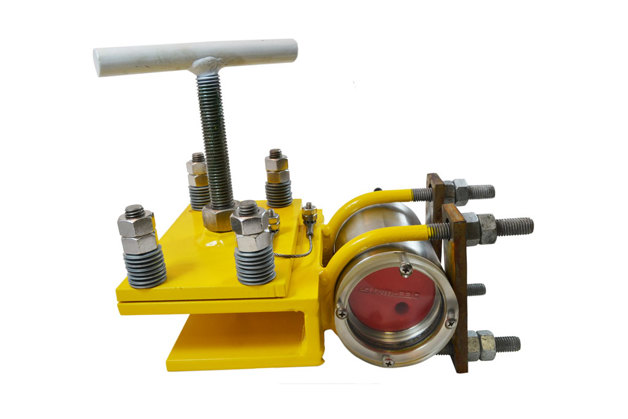

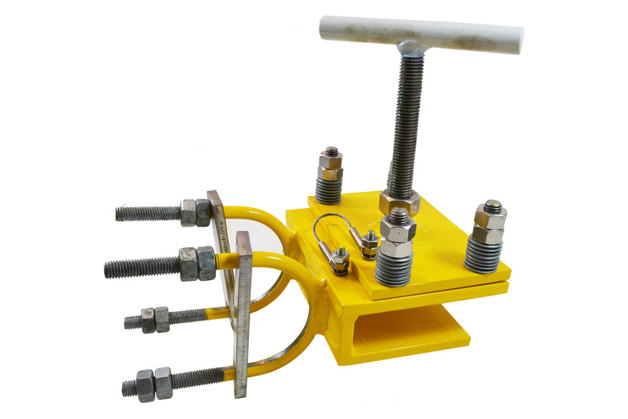

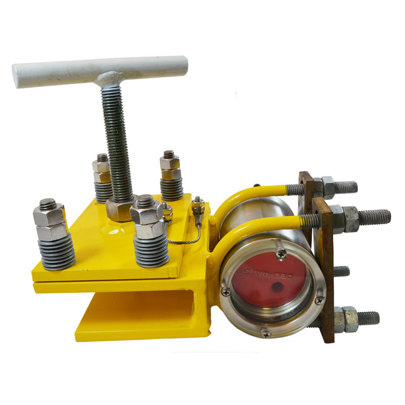

RECAP™ Data Logger

Recoverable subsea cathodic protection recorder





Deepwater’s RECAP device has been designed to collect rich subsea cathodic protection data.

Typical cathodic protection monitoring only requires infrequent measurements, sometimes more than a year apart. For special situations and complex equipment, however, it has been proven to be very useful to collect rich time-resolved CP data to help characterize the kinetics of a complicated CP system, or to troubleshoot intermittent depolarization or overprotection effects. The RECAP can be installed and retrieved in a variety of configurations, either topside (such as on a drilling stack or riser section), or subsea by ROV or diver. Several RECAPs have been deployed and have been continuously operating on drilling equipment since 2014.

Features

High-capacity memory and high-efficiency power systems allow for 4 years of continuous monitoring at 15-minute sampling intervals.
