DR-2™ Dual Reference Cell
Zn and Ag / AgCl reference electrode for monitoring CP
![SZE-8847I - PolarTrack Installation Inspection 01MAY09 106-Quick Preset_1024x574.jpg](/media/1123/sze-8847i-polartrack-installation-inspection-01may09-106-quick-preset_1024x574.jpg?width=1296&height=0&mode=crop)
The DR-2 uses both zinc and silver chloride reference electrodes for accuracy and longevity.

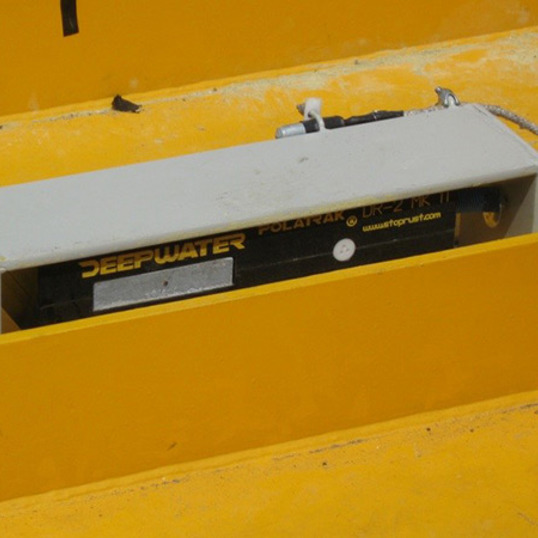

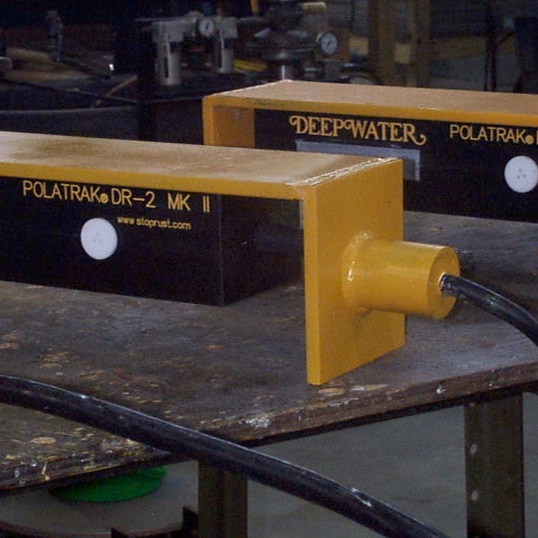

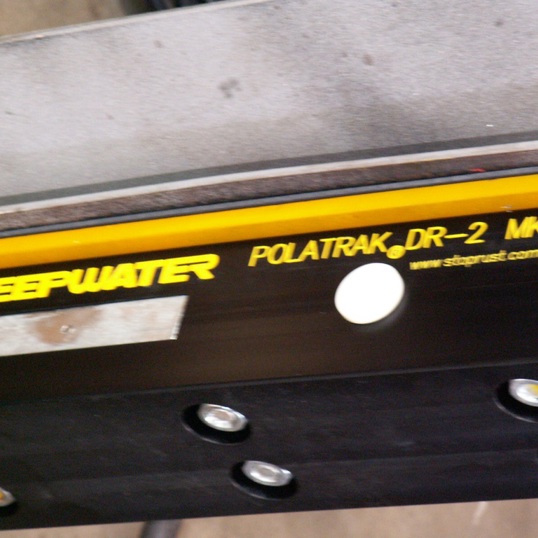

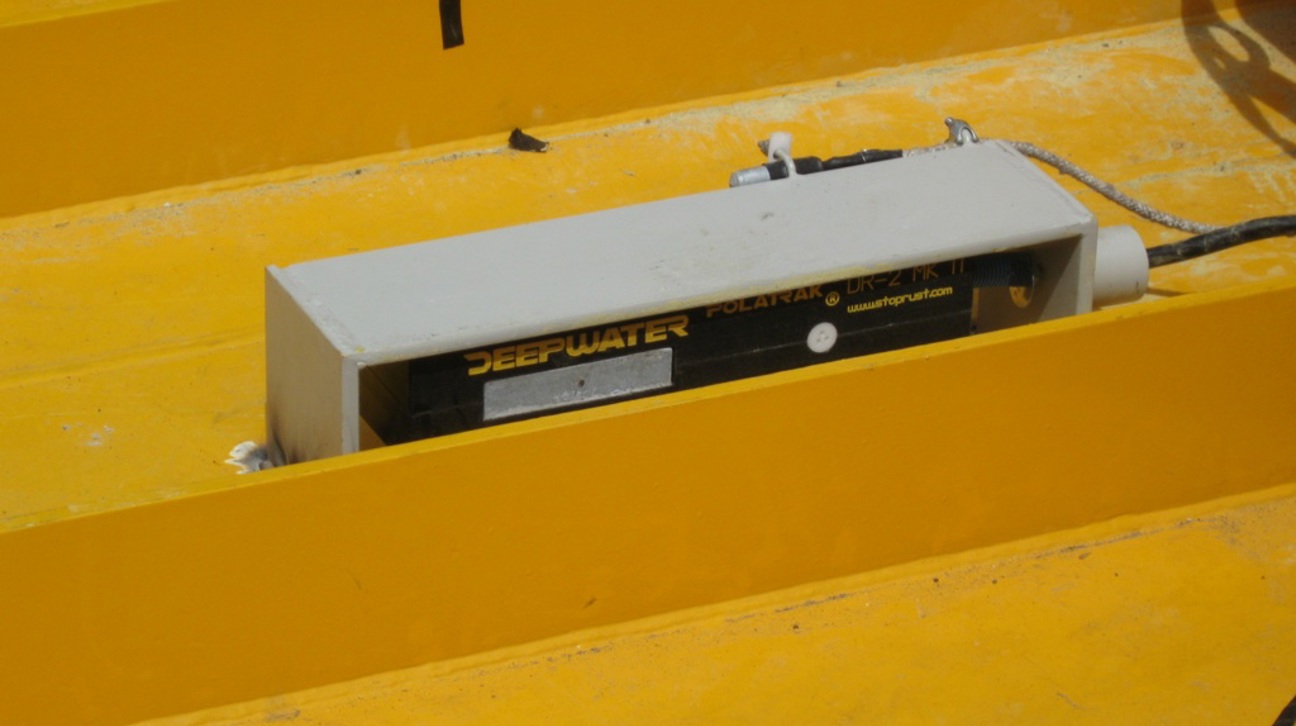

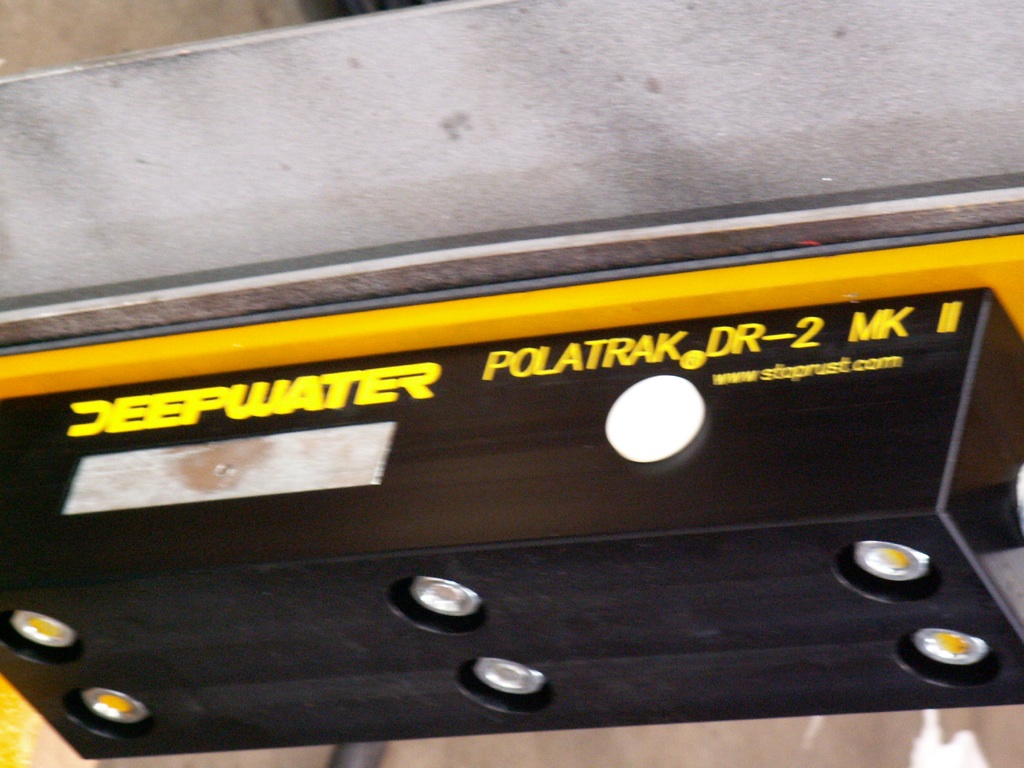

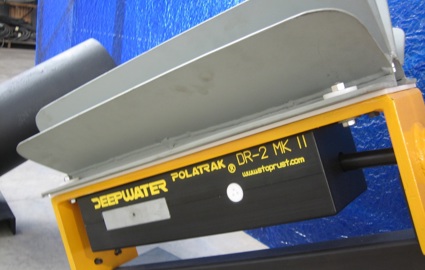

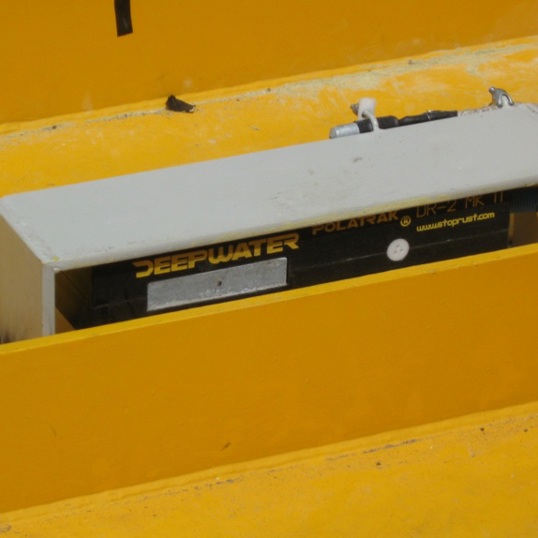

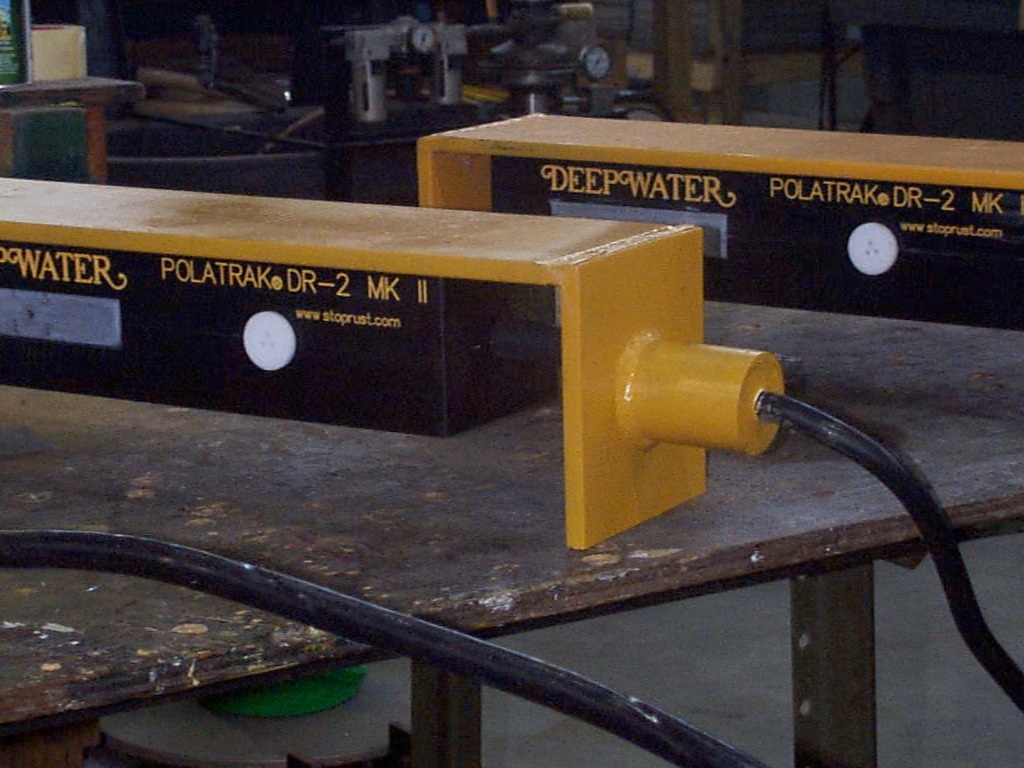

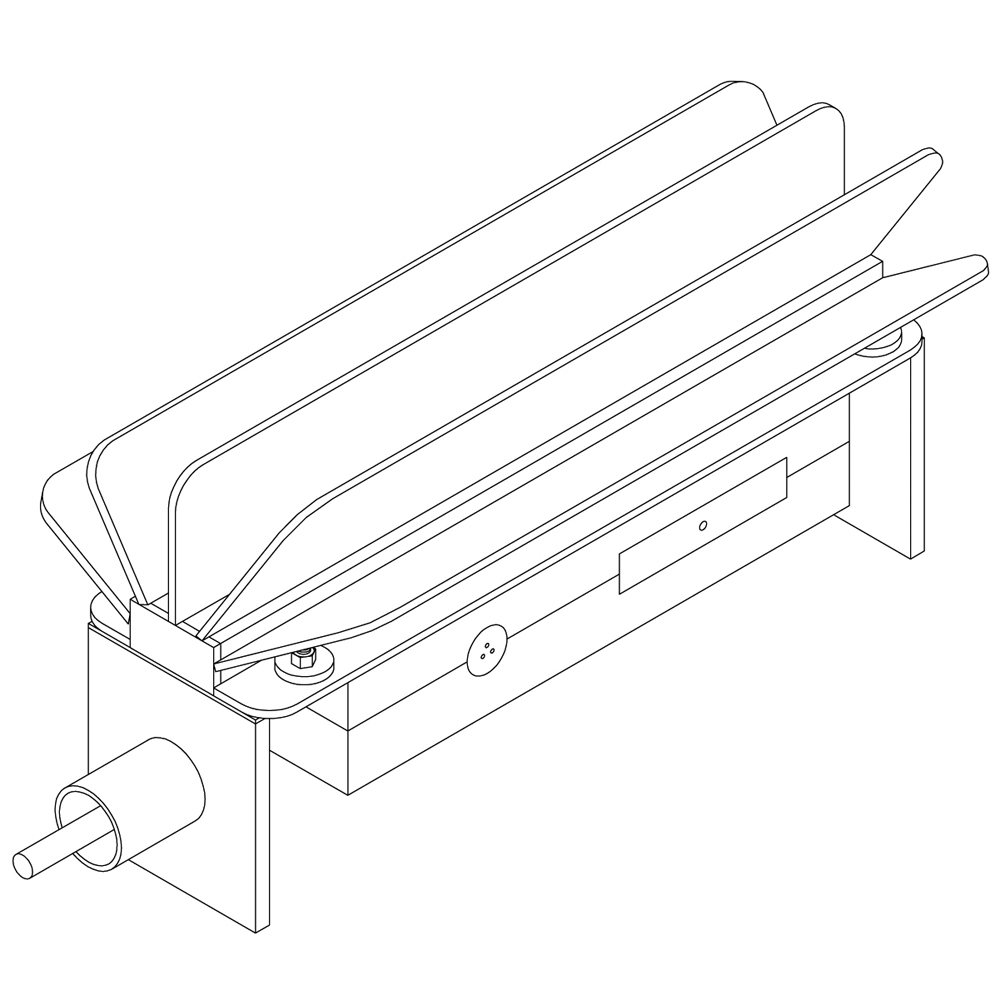

The DR-2 is a rugged, dual-element reference electrode designed for permanent subsea attachment to provide cathodic protection potentials. A standard DR-2 is designed to last 20 years. Both electrodes are housed in a machined Delrin body, giving the assembled DR-2 excellent impact resistance.
![Scan2-Quick Preset_1024x703.jpg](/media/1127/scan2-quick-preset_1024x703.jpg?center=0.4375,0.53090909090909089&width=628&height=419&mode=crop)

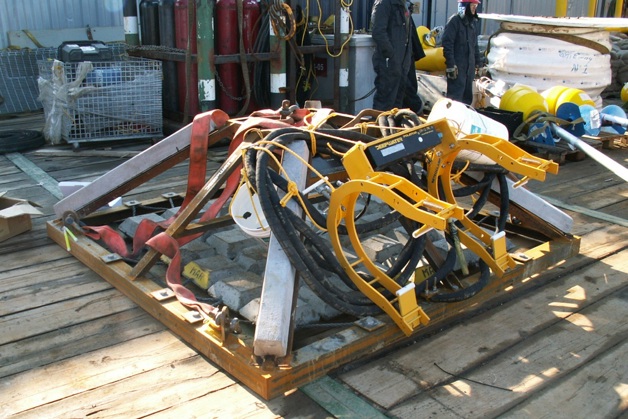

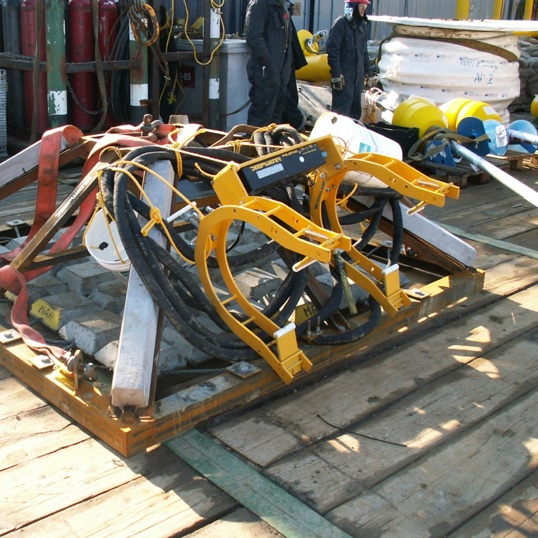

![PICT1295-Quick Preset_1024x768.jpg](/media/1125/pict1295-quick-preset_1024x768.jpg?center=0.65,0.30333333333333334&width=628&height=419&mode=crop)
Specifications
Zinc Element
Material: | Zinc (high purity 99.95%) |
Weight: | 12 lb. (5.45 kg) |
Dimensions: | 6" x 5" x 1.5" (15.2 cm x 12.7 cm x 3.8 cm) |
Anti-passivation: | Embedded carbon steel rods |
Accuracy: | +/- 0.02 volts |
Silver Chloride Element
Material: | Sintered Ag/AgCl w silver wire core |
Weight: | 0.09 oz (2.5 gm) |
Dimensions: | 0.47" Dia. x 0.20" (1.2 cm Dia. x 0.5 cm) |
Accuracy: | +/- 0.005 volts |
Key design points

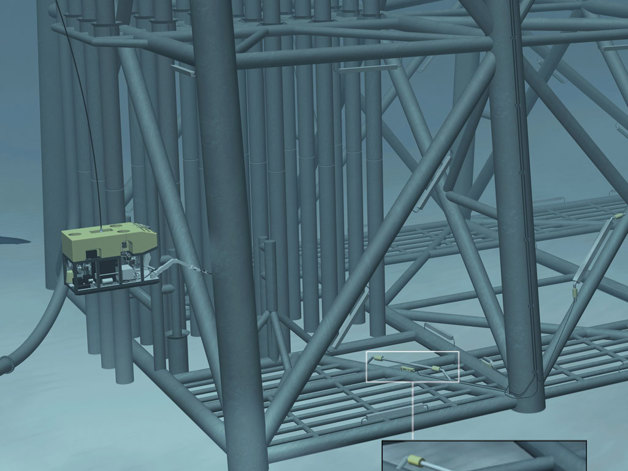

Fewer inspections: Structures with permanent cathodic protection monitoring systems can be inspected subsea much less frequently, since interval surveys can be performed with a simple voltmeter.

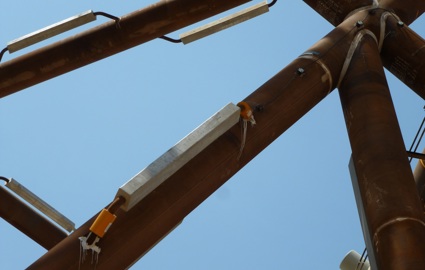

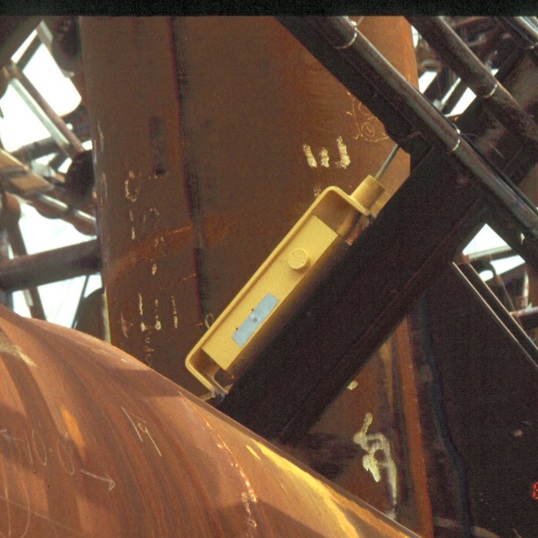

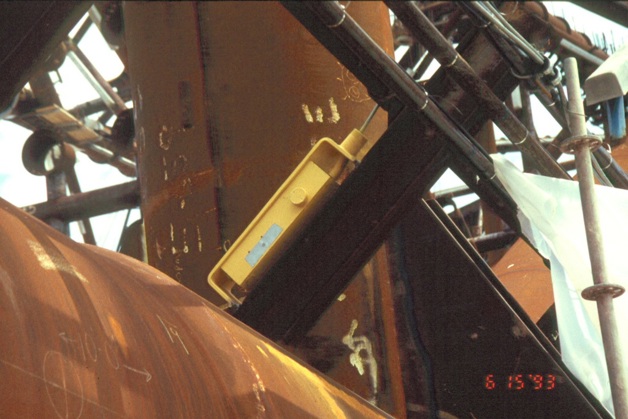

Rugged design: The rugged design allows the DR-2 to be welded reliably to the structure and wired to the surface at minimal cost prior to deployment.
Conduits not needed: The double steel-wire armored cable can be free-routed on offshore structures with simple bands or cable clamps, saving the cost of conduit or duct systems.
High accuracy: The dual elements combine the high accuracy +/- 0.005 V of the silver / silver chloride electrode with the proven longevity of a zinc electrode.
